ตู้ลำโพง RCF HD 12-A MK5 Professional Active Speaker 12″
ตู้ลำโพงแบบมีกำลังขยายในตัว RCF HD12-A MK5 Active Speaker มีขนาดดอกลำโพง 12 นิ้ว Woofer เสียงแหลม 1 นิ้ว HF Driver, มีกำลังขยาย 1400 W Peak 700 W RMS, Class-D Amplifier, For Live Sound, Clubs, DJ Setups, Events
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿43,170.00
Description
RCF HD 12-A MK5 Professional Active Speaker 12″ 1400W
ตู้ลำโพงแบบมีกำลังขยายในตัว RCF HD12-A MK5 Active Speaker มีขนาดดอกลำโพง 12 นิ้ว Woofer เสียงแหลม 1 นิ้ว HF Driver, มีกำลังขยาย 1400 W Peak 700 W RMS, Class-D Amplifier, For Live Sound, Clubs, DJ Setups, Events
HD 12-A mk5 active speaker boosts performance with a high-power professional 12″ woofer and a 1.4″ HF driver, a 1400W 2ch Class-D amplifier, and innovative FiRPHASE and Bass Motion Control processing. Vocals are natural, the sound is clear at long distances, SPL power is stable at very high levels.
The strength of HD series speakers comes from decades of experience building gear for the touring industry, equipping this compact cabinet with power and reliability expected for life on the road. Elegantly designed, the lightweight polypropylene cabinet with internal reinforcement offers maximum strength.
The speaker also includes a steel pole mount, threaded inserts for rigging, and rubber handgrips. D-LINE offers working DJs and musicians professional sound designed with music in mind.
Features:
- 130 dB Max SPL
- 1400 Watts 2-way amplifier
- DSP Processing with FiRPHASE and Bass Motion Control
- 1.4” HF driver
- 12” woofer, high power, 2.5” voice coil
- 90° x 60°, wide dispersion constant directivity horn
- Silent Fan-less Class-D Amplifier
- Mylar/Ferrite driver – Kapton former coil
Specifications
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 1400 W Peak 700 W RMS |
| Amplifier Power Rating | HF: 400 W Peak 200 W RMS LF: 1000 W Peak 500 W RMS |
| Amplifier Class | Class-D |
| HF Driver | 1 x 1″ / 25.4 mm Horn-Loaded Mylar Compression Driver |
| HF Voice Coil | 1.4″ / 3.81 cm |
| LF Driver | 1 x 12″ / 305 mm Woofer |
| LF Voice Coil | 2.5″ / 6.35 cm |
| Frequency Response | 45 Hz to 20 kHz -3 dB |
| Maximum SPL | 130 dB (Peak) |
| Coverage Angle | 90° H x 60° V |
| Input Sensitivity | Line Input: +4 dBu to -2 dBu Mic Input: -32 dBu |
| Protections | RMS, Signal Limiter, Thermal |

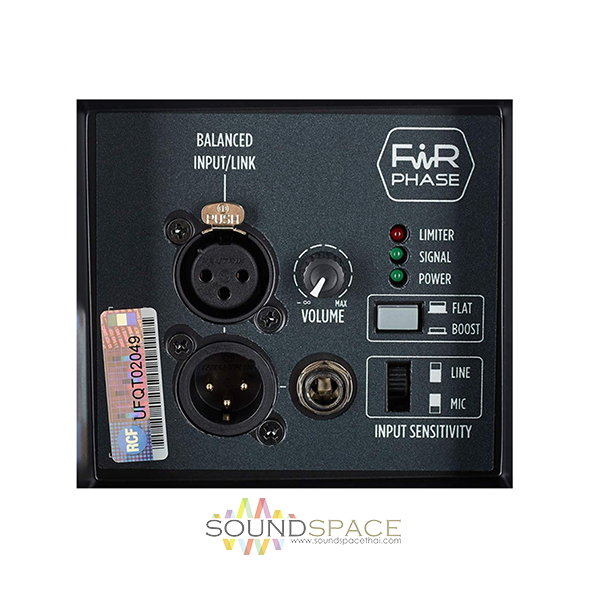

| Audio I/O | 1 x XLR 3-Pin Female Balanced Input 1 x 1/4″ TRS Female Balanced/Unbalanced Input 1 x XLR 3-Pin Male Balanced Output |
| Crossover | 1.8 kHz |
| Dynamic Processing | Soft Limiter |
| AC Input Power | User Selectable: 100 to 120 VAC, 50 / 60 Hz (T 6.3 A L 250 V) 220 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V) |
| AC Power I/O | 1 x IEC Input |

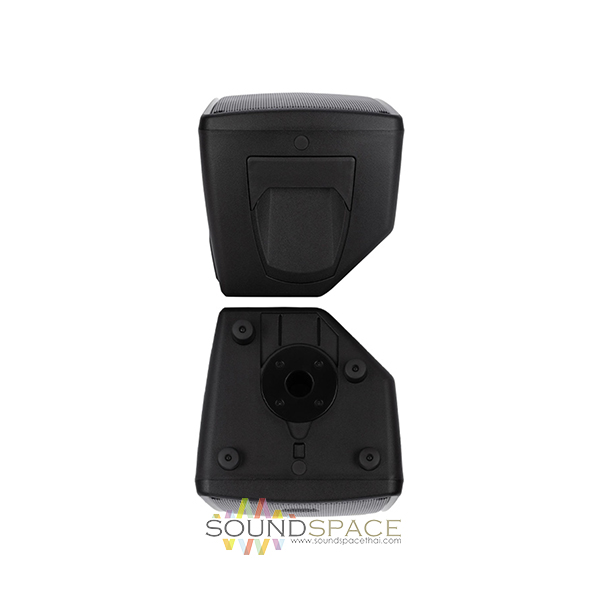

| Mounting | Pole Socket 2 x M10 Fly Point (Bottom, Top) |
| Handles | 1 x Each Side 1 x Top |
| Cooling | Convection |
| Construction Material | Perforated Metal Grille, Polypropylene |
| Certifications | CE *as per Manufacturer |
| Dimensions | 25.5 x 15 x 15″ / 647 x 380 x 380 mm |
| Weight | 40.3 lb / 18.3 kg |
Downloads
ดาวน์โหลด Data Sheet RCF HD12-A MK5
