อนาล็อคมิกเซอร์ RCF F 12XR 12-Channel Mixer with Multi-FX & Recording

Name: อนาล็อคมิกเซอร์ RCF F 12XR 12-Channel Mixer with Multi-FX & Recording
Price: 24490.00 THB
Availability: InStock

เครื่องผสมสัญญาณเสียงมิกเซอร์ RCF F 12XR แบบอนาล็อค, 12-Channel Mixer with Multi-FX Stereo Recording and Playback via USB port, 2-In/2-Out USB up to 48 kHz, PRO DSP FX onboard with 16 presets, USB Works with Windows, Mac, and iOS

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿24,490.00

สอบถามและสั่งซื้อสินค้า

Category: อนาล็อคมิกเซอร์ (Analog Mixer) Tag: RCF

Description

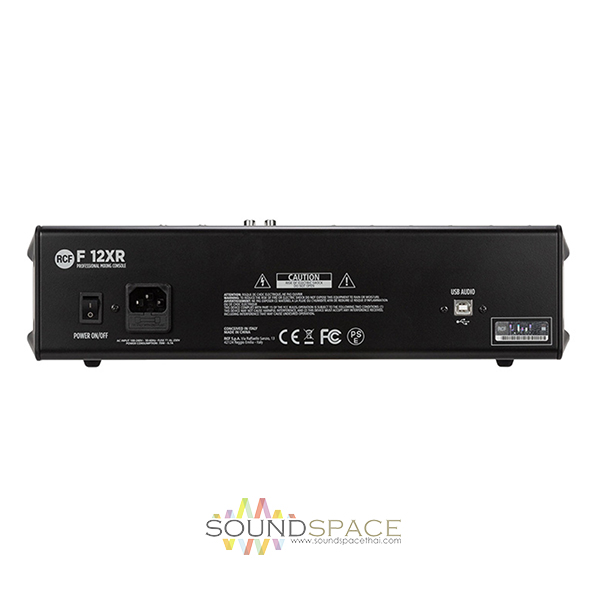

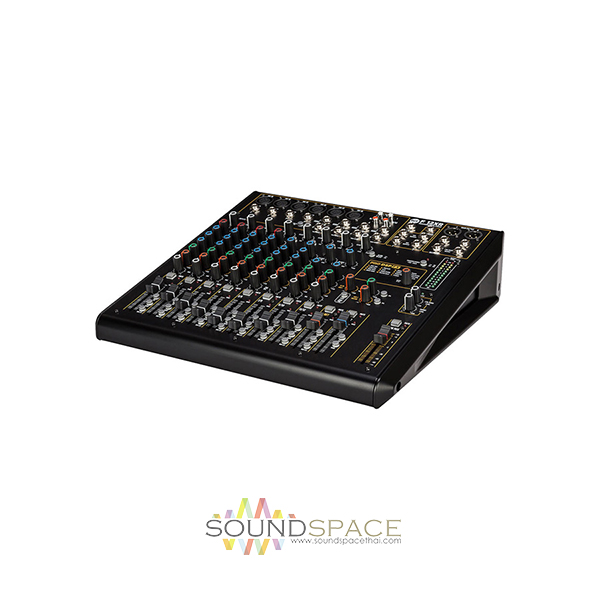

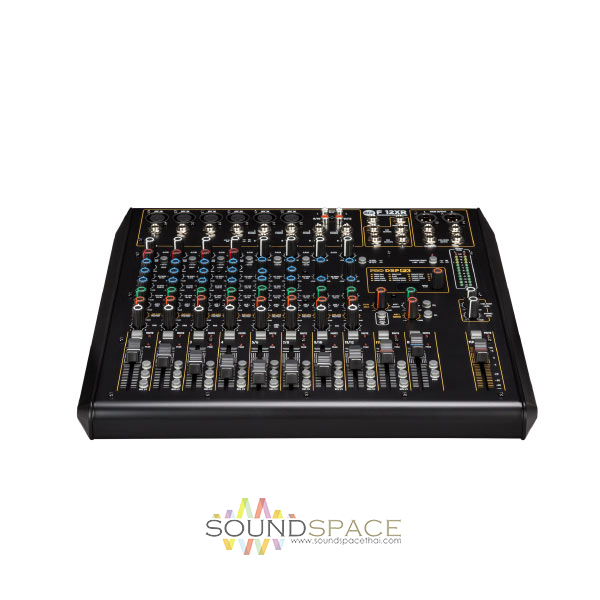

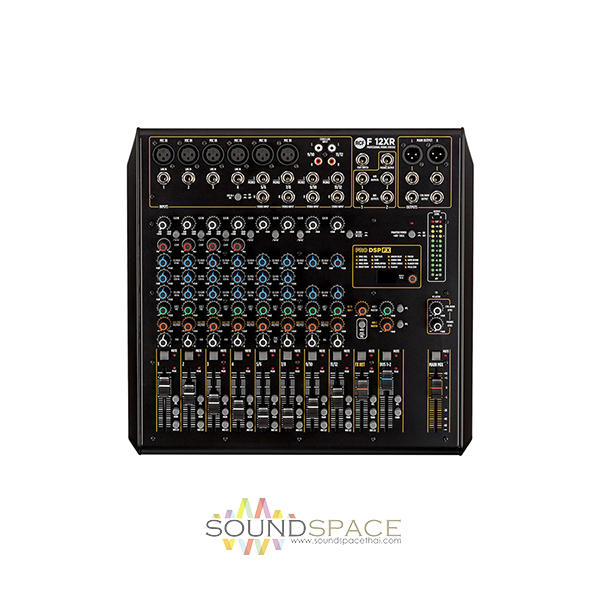

RCF F-12XR 12-Channel Mixer with Multi-FX and Stereo USB Interface

The RCF F-12XR is a mixer designed for live sound applications. It has 6 mic preamps, 4 mono line inputs, and four stereo line inputs. Line connections can be made over 1/4″ connections or RCA terminations. You’ll find 3-band EQs on the mono channels, and 2-band EQs on the stereo line inputs. Single-knob compressors are available on channels 1 through 4, and phantom power is available on all microphone inputs.

24-bit effects are on hand to give you reverb, echo, delay, flanger, and more. Route to main outputs, monitors, or headphones, thanks to the comprehensive output section. With the USB output, you can record stereo audio on Mac, Windows, or iOS devices (with compatible adapters).

Features:

Sturdy Metal Chassis
PRO DSP FX onboard with 16 presets
Stereo Recording and Playback via USB port
Balanced main output audio path from input to output
4 single control compressors
Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
Robust, compact and attractive design.
Designed and Engineered in Italy
Internal Universal Power Supply

Specifications

Inputs

Input Connections	6 x XLR Inputs 12 x 1/4″ Inputs (4 x Stereo Pairs, 4 Mono) 4 x RCA Inputs (2 x Stereo Pair) 1 x 1/4″ Footswitch Input
Gain Range	0 to -50 dB
Input Impedance	Mic: 14 Kilohms Line: 21 Kilohms Stereo Line: 15 Kilohms
Frequency Response	20 Hz to 20 kHz
Gain Selection	20 dB to -30 dB
Low Cut Filters	80 Hz
Phantom Power	+48 V

Outputs

Output Connections	2 x XLR Main Outputs 2 x 1/4″ Main Outputs 2 x 1/4″ CTL Room Outputs 2 x 1/4″ Auxiliary Outputs 1 x 1/4″ Headphones Output
Output Level	28 dBu
Headphone Impedance	150 Ohms

System Specifications

Compressor	Single-Control Compressors on Channels 1 through 4
Equalization	Input Channels: 2 Shelving / 1 Generic High: ±15 dB at 10 kHz, Shelving Mid: ±15 dB at 1250 Hz, Bell Low: ±15 dB at 100 Hz, Shelving
USB Audio	Type-B, 2-Channel I/O, 44.1 or 48 kHz Sample Rate
Case Material	Metal
Frequency Response	20 Hz to 20 kHz
THD+N	< 0.02% (20 dB Gain, 0 dBu Out, A-Weighted)
Voltage Requirements	100 to 240 VAC
Power Consumption	24 W
Power Supply	Internal
Dimensions (D x H x W)	14 x 3.8 x 14.7″ / 35.5 x 9.7 x 37.3 cm
Weight	9.9 lb / 4.5 kg
