ชุดลำโพงพร้อมขยายเสียง RCF EVOX 5 Active 2-Way PA Speaker System

Description

RCF EVOX 5 Portable Compact Line Array PA System 800W

ชุดเครื่องเสียงเคลื่อนที่ RCF EVOX 5 เป็นชุดเครื่องเสียงแบบ Active 2-Way มีขนาดดอกลำโพงซับเบส 10 นิ้ว Woofer และลำโพงกลางแหลม 2 นิ้ว 5 ดอก Ultra compact fullrange, มีกำลังขับ LF 600 วัตต์ Peak  HF 200 วัตต์ Peak ตอบสนองความถี่  45 Hz 20 kHz, Innovative DSP processing

Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0” full range transducers in the line source satellite and a deep sounding 10” woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.

To achieve this response, the system utilizes a 600W (LF), 200W (HF) peak class D bi-amplifier with DSP and a constant horizontal coverage of 120°. The vertical array design helps avoid high frequency beaming for more balanced coverage from the front to the last row.

The crossover between the high frequency and low frequency drivers is digitally controlled by onboard DSP with dedicated processing given to accurate vocal reproduction.

The rear panel of the amplifier includes balanced switchable mic/line level inputs, an XLR link output, a volume knob, an EQ flat/boost switch, and LED indicators for limiting, signal, and power. The amplifier connects to the top speaker via 2-pole speakON connection.

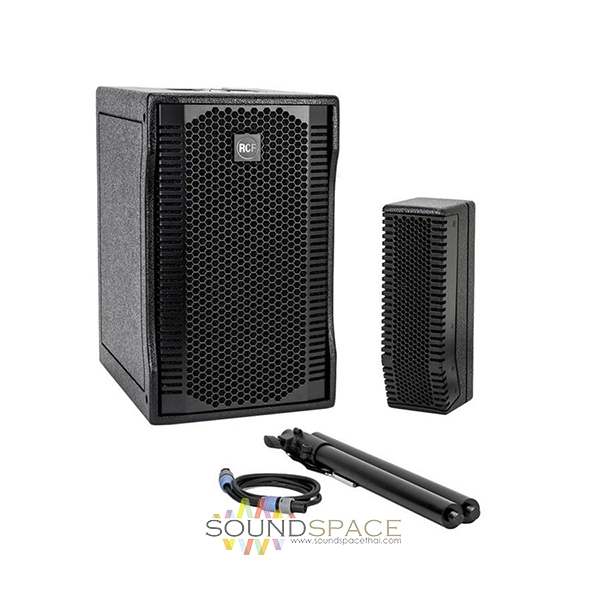

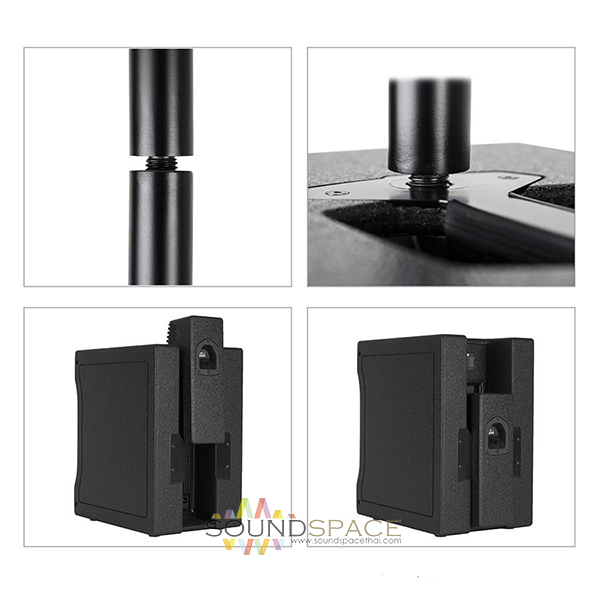

For portability, the top full-range speaker slides into the subwoofer on rail guides. To setup, simply pull the top out of the subwoofer via the rubber handle and screw into the 2-part speaker mount pole. The cabinet is constructed from Baltic birch plywood.

Features:

• 800 Watt
• 125 dB max SPL
• 45 Hz 20 kHz frequency response
• 10″ Woofer, 2.0″ v.c.
• 5 x 2″ Ultra compact fullrange, 1.0 v.c.
• 120° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation
