ตู้ลำโพงกลางแจ้ง แบบมีกำลังขยายในตัว RCF Art 312-A MK4 เป็นลำโพงรุ่นใหม่ในตระกูล ART Series มีขนาดดอกลำโพง 12 นิ้ว Woofer, เสียงแหลม 1 นิ้ว HF Driver, มีกำลังขับ 800 วัตต์ Peak Class-D Digital Amplifier, Integrated DSP with FiRPHASE Technology, ตอบสนองความถี่ 50 Hz to 20 kHz, Soft Limiter, Dynamic Bass Boost
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม……เป็นราคาใบละ…
฿27,380.00 ฿25,000.00
ตู้ลำโพงกลางแจ้ง แบบมีกำลังขยายในตัว RCF Art 312-A MK4 เป็นลำโพงรุ่นใหม่ในตระกูล ART Series มีขนาดดอกลำโพง 12 นิ้ว Woofer, เสียงแหลม 1 นิ้ว HF Driver, มีกำลังขับ 800 วัตต์ Peak Class-D Digital Amplifier, Integrated DSP with FiRPHASE Technology, ตอบสนองความถี่ 50 Hz to 20 kHz, Soft Limiter, Dynamic Bass Boost

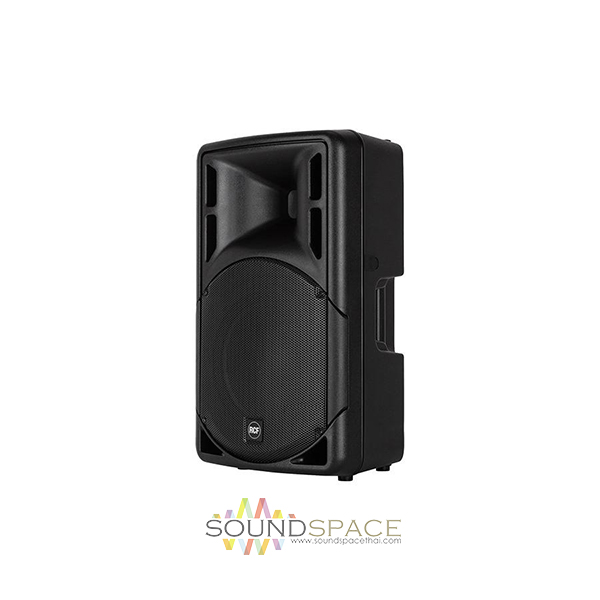

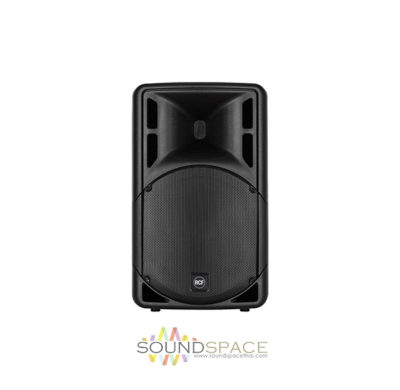

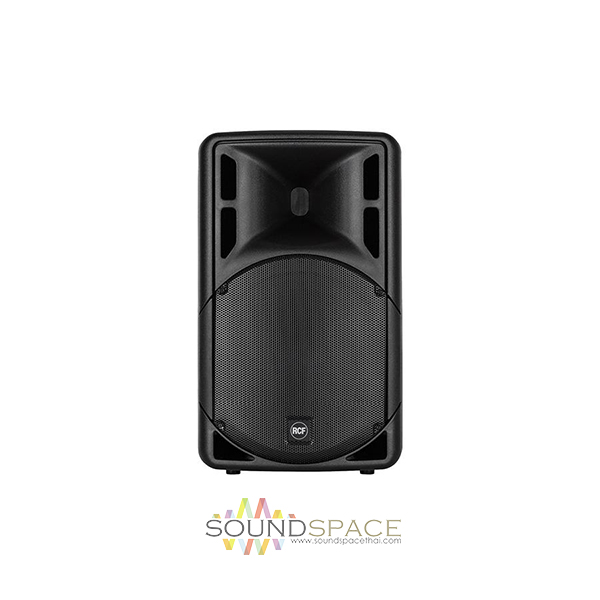

RCF ART 312-A MK4 is a lightweight (at 37 lb) and portable active speaker designed to deliver full-range sound with accurate high-frequencies and controlled deep bass for live sound reinforcement, distributed sound systems in clubs, corporate events, or mobile DJ setups.
The ART 312-A MK4 is equipped with an 800W peak, Class-D digital amplifier, which drives 600W into the 12″ woofer, and 200W into the 1″ mylar dome compression driver. The speaker delivers a frequency response of 50 Hz to 20 kHz with a peak SPL output of 128 dB. The integrated DSP manages the loudspeaker processing, including crossover and EQ, soft limiter, and dynamic bass boost. Phase and amplitude are corrected using proprietary FiRPHASE technology conceived for delivering a natural and transparent sound, with a balanced stereo image.

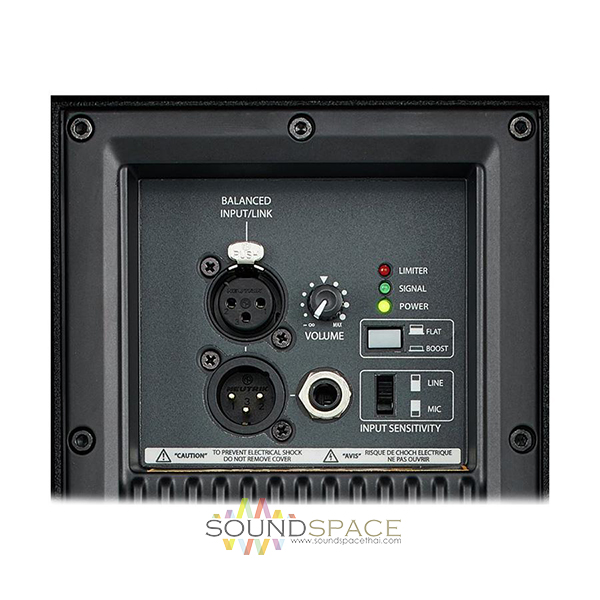

Easy to operate, the ART 312-A MK4 comes with XLR and 1/4″ balanced/unbalanced inputs for connecting a microphone, mixer, or audio device, and with a volume knob to set the level. Furthermore, the switchable Flat/Boost mode enables you to emphasize the bass response when playing at low volume, or keep it flat for all other applications.

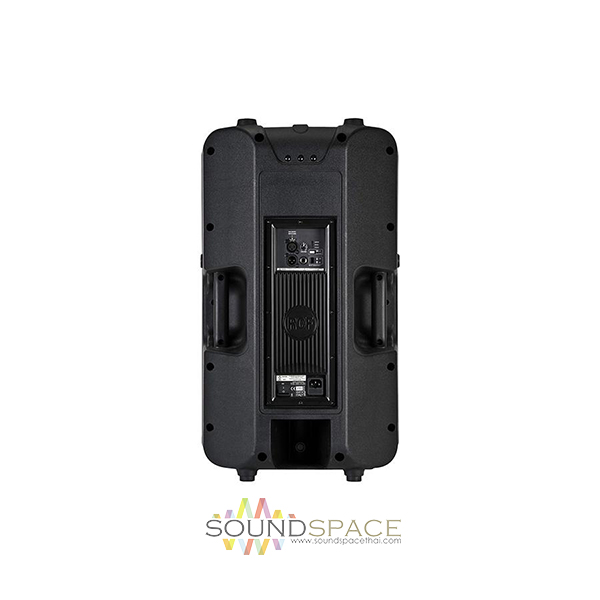

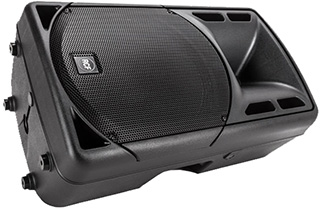

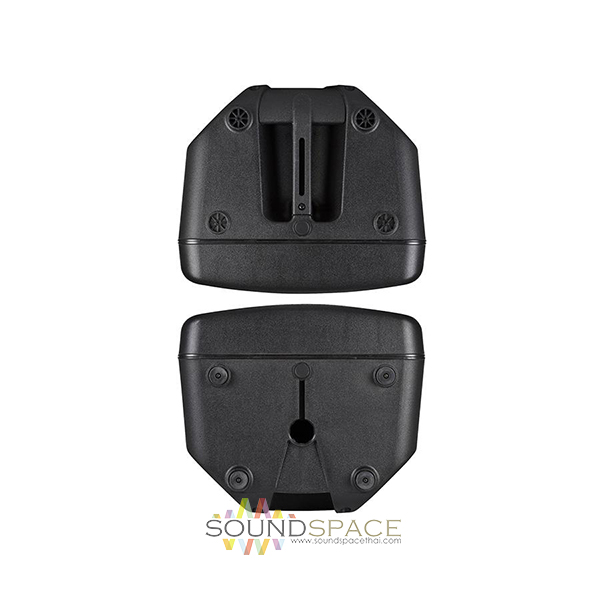

The cabinet is molded with rugged polypropylene composite material (PP), and designed to dampen vibrations, even at maximum volume settings. It features top and side handles, which allow you to firmly hold the cabinet, and move it easily. The ART 312-A MK4 can be mounted on a stand or a subwoofer pole, or positioned on its side to serve as a wedge monitor.
Configuration | Active 2-Way |
Total Power Capacity | 800 W Peak 400 W RMS |
Amplifier Power Rating | HF: 200 W Peak 100 W RMS LF: 600 W Peak 300 W RMS |
Amplifier Class | Class-D |
HF Driver | 1 x 1″ / 51 mm Mylar Dome |
HF Voice Coil | 1.5″ / 3.81 cm |
LF Driver | 1 x 12″ / 305 mm Woofer |
LF Voice Coil | 2.5″ / 6.35 cm |
Frequency Response | 50 Hz to 20 kHz -3 dB |
Maximum SPL | 128 dB |
Coverage Angle | 90° H x 60° V |
Input Sensitivity | Line Input: +4 dBu to -2 dBu Mic Input: -32 dBu |
Protections | RMS, Thermal |
Audio I/O | Combo XLR-1/4″ Balanced/Unbalanced Input XLR Male Balanced Output |
Crossover | 1.8 kHz |
Dynamic Processing | Soft Limiter |
AC Input Power | User Selectable: 115 VAC, 60 Hz (3.15 A 250 V) 230 VAC, 50 Hz (1.6 A 250 V) |
AC Power Connector | 1 x VDE |
Mounting | 4 x M10 |
Handles | 2 x Side 1 x Top |
Cooling | Convection |
Construction Material | Metal Grille, Polypropylene |
Dimensions | 26.8 x 15.9 x 13.6″ / 680.0 x 405.0 x 345.0 mm |
Weight | 37 lb / 16.8 kg |
Package Weight | 37 lb |
Box Dimensions (LxWxH) | 29 x 17.5 x 15.5″ |
