เครื่องแปลงสัญญาน Radial JCR, Lets you re-record tracks through a guitar or bass amp, Original reamp circuit designed by John Cuniberti, Easy-to-use, plug-and-play passive design, Improves productivity while expanding creative options
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿9,000.00
เครื่องแปลงสัญญาน Radial JCR, Lets you re-record tracks through a guitar or bass amp, Original reamp circuit designed by John Cuniberti, Easy-to-use, plug-and-play passive design, Improves productivity while expanding creative options

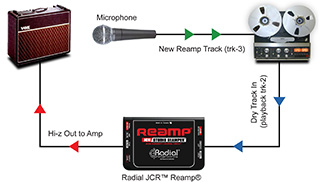

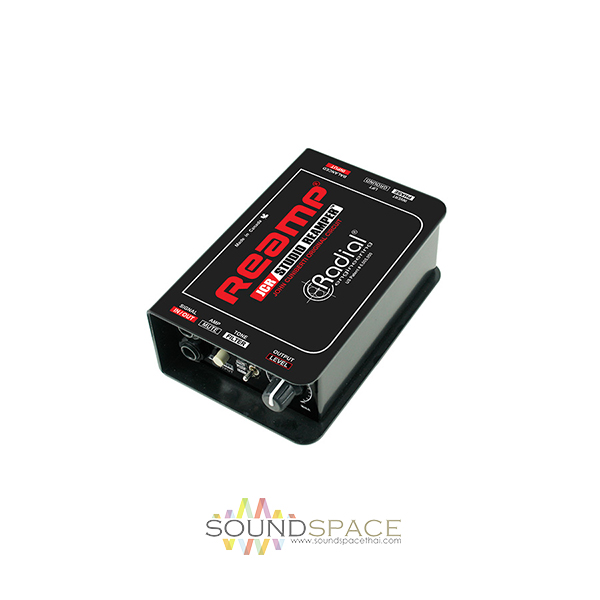

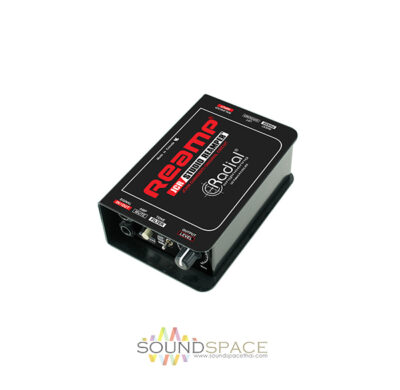

The Radial Engineering Reamp JCR is a passive reamper that allows you to take a prerecorded track and send it back to a guitar or bass amplifier and re-record it. The benefits are tremendous: instead of worrying about the sound of the track, you can focus your attention on getting the best musical performance.

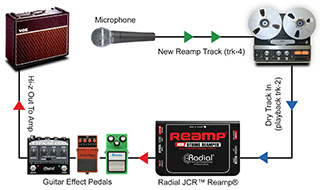

Once the performance has been captured, you can reamp the track even in the absence of the guitarist by moving the mics around the room, trying various amplifiers, or introducing effects. Additionally, you can also reamp the track later as the production develops.
This reamper features the original reamp circuit designed by John Cuniberti. It features a 100% passive design with John’s original custom-wound transformer and circuit that are made in the USA.

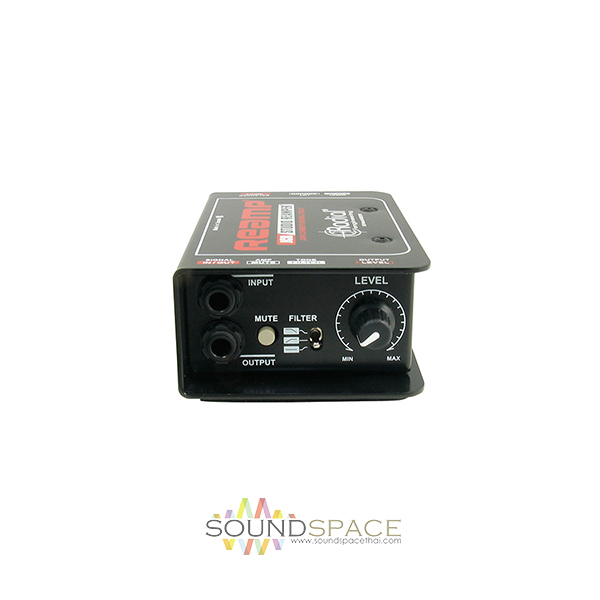

It also features separate XLR and 1/4″ TRS input connectors, variable output level, and a 3-position filter that lets you tame excessive highs, warm up the lows, or simply bypass if you want to revert to the original circuit. An on-board mute function has also been added to let you shut off the signal going to the amps while making adjustments or moving mics around the studio.
Circuit Type | Passive, transformer isolated |
Frequency Response | 20 Hz to 20 kHz (±0.2 dB) |
CMRR | -55 dB @ 55 Hz |
Dynamic Range | 140 dB |
Noise Floor | -115 dBu |
Maximum Input Level | +21 dBu @ 20 Hz |
Output Level | Adjustable |
Total Harmonic Distortion | 0.05% @ 20 Hz, 0.006% @ 1 kHz |
Intermodulation Distortion | 0.0025% @ 1 kHz/-10 dB input |
Deviation from Linear Phase | 2º @ 100 Hz; 0º @ 800 Hz |
Input Impedance | 600 Ω |
Output Impedance | 5 kΩ |
Input | XLR, 4 dB balanced line-level, AES standard (pin-2 hot) |
Output | Instrument-level (variable), unbalanced |
Ground Lift | Disconnects pin-1 at the XLR input |
Mute | Mutes the output at the 1/4″ unbalanced out |
Filter | Hi-Cut: -3 dB down @ 1 kHz Low-Cut: -3 dB down @ 180 Hz |
Polarity | 180º polarity reverse at 1/4″ output |
Power | Passive, no power required |
Construction | 14 gauge steel chassis & outer shell, baked enamel finish |
Operating Conditions | 41 to 104°F (5 to 40°C), for use in dry locations |
Dimensions | 3.3 x 5.0 x 1.9″ (8.4 x 12.7 x 4.9 cm) |
Weight | 1.75 lb (0.79 kg) |
