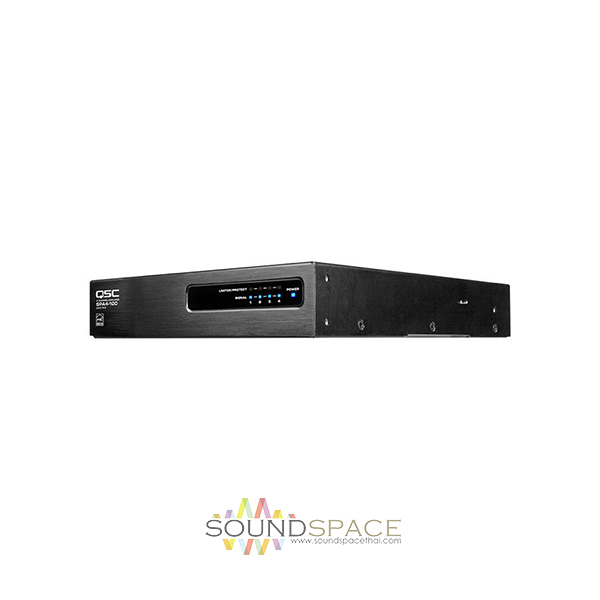

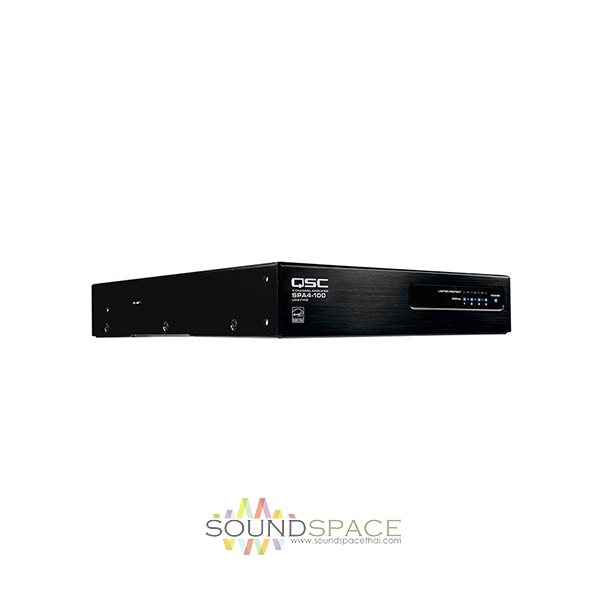

เครื่องขยายเสียง QSC SPA4-100 EnergyStar Power Amplifier
แอมป์ขยายเสียง QSC SPA4-100 เป็นเครื่องขยายเสียงจาก QSC ในตระกุล SPA-Series มีขนาด 1U ครึ่งแร็ค เป็นแอมป์ 4 แชนเนล ENERGY STAR class D amplifiers กำลังขับ 100Watt @ 8 Ohms & 4 Ohms, 200Watt @ 8 Ohms & Ohms (bridged), 350Watt @ 70V/100V
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿45,000.00 ฿38,250.00
Description
QSC SPA4-100 ENERGY STAR Power Amplifier (100Wx4Ch)
แอมป์ขยายเสียง QSC SPA4-100 เป็นเครื่องขยายเสียงจาก QSC ในตระกุล SPA-Series มีขนาด 1U ครึ่งแร็ค เป็นแอมป์ 4 แชนเนล ENERGY STAR class D amplifiers กำลังขับ 100Watt @ 8 Ohms & 4 Ohms, 200Watt @ 8 Ohms & Ohms (bridged), 350Watt @ 70V/100V
The SPA4-100 four channel amplifier delivers 100 watts rms per channel into 4 or 8 ohms; the four channels can also be bridged in pairs, each pair providing up to 200 watts rms into 4 or 8 ohms. The SPA4-100 bridged pair channels can be switched into 70V or 100V direct drive mode providing up to 350 watts rms into a 70V or 100V output; when in 70V or 100V mode the 80Hz highpass filter is automatically engaged.
Features:
- Up to 200 watts per channel into 4 and 8 ohms
- ENERGY STAR® qualified amplifier
- Bridgeable outputs for higher power
- Auto-Ramp provides quiet startup and power-down
- Rack-mountable 1U, half rack width enclosure
Specifications
| Product Type | Power amplifier |
| Enclosure Color | Black |
| Functions | Amplifier |
| Amplifier Class | D |
| Audio Specifications | Amplifier – Response Bandwidth – 20 – 20000 Hz – SNR – 100 dB |
| Input Impedance | 10 kOhm |
| Input Sensitivity | 1.23 V |
| Amplifier Output Details | 100 Watt – 8 Ohm – 4 channels 100 Watt – 4 Ohm – 4 channels 200 Watt – 8 Ohm – 2 channels (bridged) 200 Watt – 4 Ohm – 2 channels (bridged) 350 Watt – 2 channels (70/100V) |
| Features | Thermal protection, overload protection, short circuit protection, over current protection, over voltage protection, wall mountable, bridged output capability, rack mountable, low voltage protection, 70V/100V or 4/8 Ohm operation |

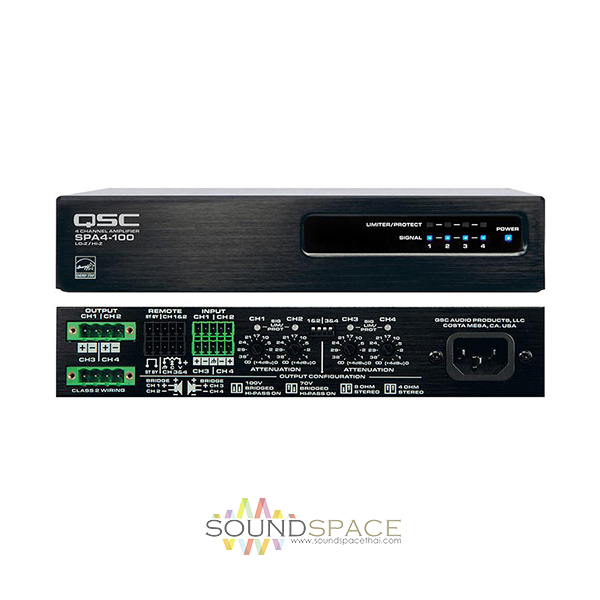

| Connectors | 2 x balanced audio input (Euroblock 5-pole) – rear 2 x speakers output (Euroblock 4-pole) – rear 2 x remote control (Euroblock 5-pole) – rear |
| Included Accessories | Power cable, mounting bracket, rack mount ears |
| Voltage Required | AC 100/230 V (50 – 60 Hz) |
| Width | 8.7 in |
| Depth | 9.5 in |
| Height | 1.7 in |
| Weight | 3.09 lbs |
| Weight (Shipping) | 5.51 lbs |
| Package Weight | 7.4 lb |
| Box Dimensions (LxWxH) | 15.4 x 11.4 x 3.4″ |
Downloads
ดาวน์โหลด Data Sheet QSC SPA4-100
