เพาเวอร์แอมป์ QSC CMX2000Va Power Amplifier
เครื่องขยายเสียงรบกวน (เพาเวอร์แอมป์) QSC CMX2000Va มีกำลังขับ 1100 วัตต์ x 2 ที่ 8 โอหม์, 70 V mono 5000 วัตต์, class AB, DIP switches for easy selection of stereo, parallel, or bridged mode operation, Tamper-proof security cover for gain controls
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿81,000.00 ฿64,800.00
Description
QSC CMX2000Va Professional Power Amplifier
เครื่องขยายเสียงรบกวน (เพาเวอร์แอมป์) QSC CMX2000Va มีกำลังขับ 1100 วัตต์ x 2 ที่ 8 โอหม์, 70 V mono 5000 วัตต์, class AB, DIP switches for easy selection of stereo, parallel, or bridged mode operation, Tamper-proof security cover for gain controls

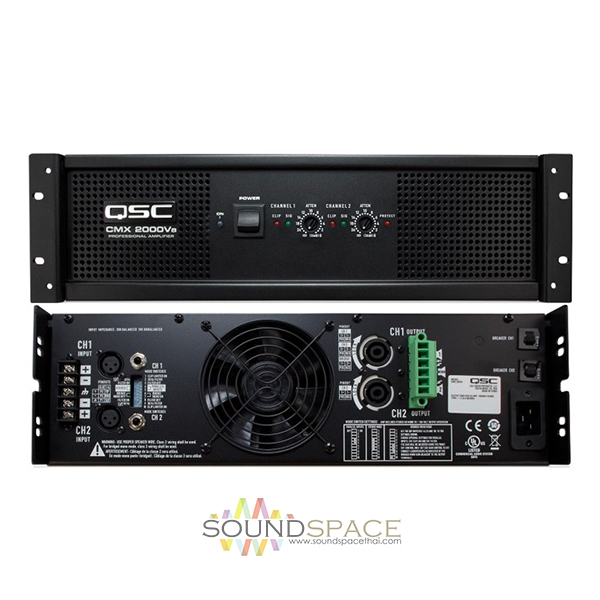

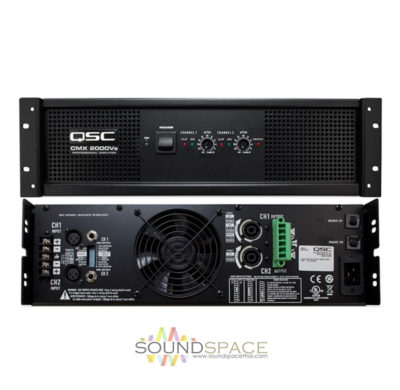

The QSC CMX2000Va 2500W Professional Power Amplifier is a 3RU power amplifier designed for live sound reinforcement applications such as for performance halls, houses of worship, sports clubs, gymnasiums, dance venues, pubs, and more.
The amplifier uses a powerful, high-current toroidal transformer with filtering to ensure sufficient energy reserves. This allows the amplifier to handle high-level transients, even when driving 2Ω speaker loads.
The amplifier output sections feature 3-tier class H architecture. The class H output section reduces AC current draw and cuts down on unnecessary heat. Automatic current limiting protects the amplifier from damage until the short is corrected. It also features DC protection systems to prevent loudspeaker damage in the unlikely event of an output transistor failure. DC voltage from the power supply is never passed directly to your speakers, even in case of an output circuit breakdown.
A full complementary output circuit using high-grade linear output devices generates a flat-frequency response with low distortion. SMT (Surface Mount Technology) triples small-signal component density, enabling high power output in a 3RU chassis, less than 16″ deep. The output devices are directly mounted to the heat sink to improve thermal coupling and cooling.
The unit has the ability to directly drive 70 and/or 100V distributed loudspeakers. The amplifier may be used in either stereo or mono mode. For installations requiring a transformer isolated output, the CMX has optional accessories to accommodate different applications.
Features:
- Flex-use loading options can drive low-impedance loads down to 2Ω and even 70 and 100V distributed loudspeaker systems
- Flex-use input connectivity choices including actively balanced barrier strip, XLR, or 1/4″ TRS
- Flex-use output connectivity choices include NL4 Speakon and detachable terminal block
- Rack mountable chassis less than 16″ deep
- 1 dB recessed, detented gain control provides fast, accurate, and repeatable settings
- Tamper-proof security cover for gain controls

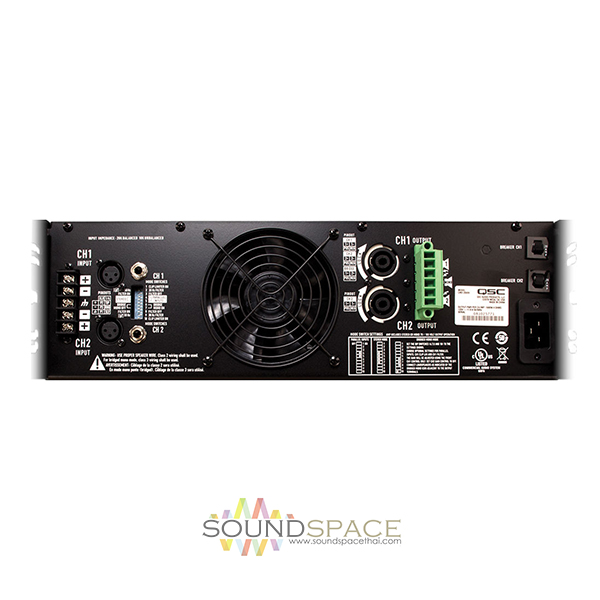

- Recessed rear DIP switches for easy selection of stereo, parallel, or bridged mode operation, and the additional choice of enabling/disabling low frequency filter protection
- Low-noise, variable-speed fans with rear-to-front airflow prevent amplifiers and racks from overheating
- May be used in either stereo or mono mode
- Used in facilities such as performance halls, houses of worship, sports clubs, gymnasiums, dance venues, pubs, and FGM/BGM systems
Specifications
QSC CMX2000Va Power Amplifier

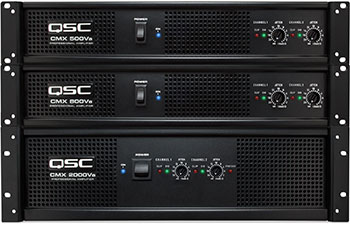

| CM X300Va | CMX 500Va | CMX 800Va | CMX 2000Va | ||||
| Stereo Mode (both channels driven)8Ω/ FTC 20 Hz – 20 kHz / 0.1% THD8Ω/ EIA 1 kHz / 0.1% THD4Ω/ FTC 20 Hz – 20 kHz / 0.1% THD4Ω/ EIA 1 kHz / 0.5% THD2Ω/ EIA 1 kHz / 1% THD70V Direct Drive / EIA 1 kHz / 1% THD100V Direct Drive / EIA 1 kHz / 1% THD | 185 W200 W280 W300 W430 W – – | 260 W300 W400 W500 W700 W – – | 450 W500 W650 W800 W1200 W400 W – | 1050 W1100 W1600 W2000 W (1% THD)2500 W2500 W1000 W | |||
| Bridge Mono Mode8Ω/ FTC 20 Hz – 20 kHz / 0.1% THD8Ω/ EIA 1 kHz / 0.1% THD4Ω/ EIA 1 kHz / 1% THD70V Direct Drive / EIA 1 kHz / 1% THD100V Direct Drive / EIA 1 kHz / 1% THD | 530 W600 W830 W600 W – | 800 W900 W1400 W1200 W600 W | 1300 W1500 W2400 W2000 W2300 W | 3200 W3600 W5000W5000 W3600 W | |||
| Signal to Noise (20 Hz – 20 kHz, 8Ω) | > -100 dB | > – 100 dB | > – 100 dB | > – 100 dB | |||
| Input Sensitivity at 8Ω | 1.15 V (+3.4 dBu) | 1.14 V (+3.4 dBu) | 1.23 V (+4.0 dBu) | 1.42 V (+5.3 dBu) | |||
| Voltage Gain at 8Ω | 31.6 x (30 dB) | 40 x (32 dB) | 46 x (33 dB) | 64 x (36 dB) | |||
| Output Circuitry | Class AB | Class AB | 2-tier Class H | 3-tier Class H | |||
| PowerRequirementsTypical, 1/8 power pink noise at 4Ω, 120VACTypical, 1/8 power pink noise at 4Ω, 230 VACSevere, 1/3 power pink noise at 4Ω, 120VACSevere, 1/3 power pink noise at 4ΩΩ, 230 VAC | 4.4 A2.2 A6.6 A3.3 A | 5.4 A2.7 A9.6 A4.8 A | 6.3 A3.2 A15.6 A7.8 A | 13.9 A7 A26.9 A13.5 A | |||
| Distortion (SMPTE-M) | < 0.02% | < 0.01% | < 0.01% | < 0.01% | |||
| Distortion (typical)20 Hz – 20 kHz: 10 dB below rated power1.0 kHz and below: full-rated power | < 0.03% THD / 4Ωand 8Ω< 0.03% THD / 4Ωand 8Ω | ||||||
| Frequency Response | 20 Hz – 20 kHz: ±1 dB -3 dB points: 5 Hz – 50 kHz | ||||||
| Damping Factor (1 kHz and below) | > 300 at 8Ω | ||||||
| Input Impedance | 10k ohms unbalanced, 20k ohms balanced | ||||||
| Input Clipping | 10 Vrms (+22 dBu) | ||||||
| Cooling | Continuously variable-speed fan, rear-to-front air flow | ||||||
| Connectors (each channel) | Input: Active balanced; barrier strip, XLR and ¼” (6.3 mm) – TRS tip and XLR pin 2positiveOutput: Detachable terminal block and Neutrik™ Speakon™ | ||||||

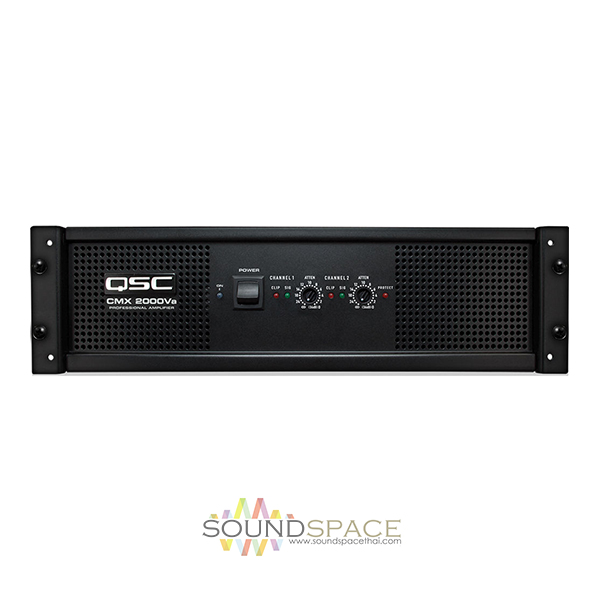

| Controls | Front: AC switch, Ch. 1 & 2 gain knobsRear: 10-position DIP switch | ||||||
| Indicators | Power-on: Green LED / Signal: Green LED (1 per channel) / Clip: Red LED (1 per channel) | ||||||
| Amplifier Protection | Stable into reactive or mismatched loads | ||||||
| Load Protection | On/off muting, AC coupling (CMX 300Va and CMX 500Va), triac crowbar (CMX 800Va and CMX 2000Va on each channel) | ||||||
| Power Requirements | 120 and 230 VAC, 50 – 60 Hz | ||||||
| Dimensions (HWD)2 RU models3 RU model (CMX 2000Va) | 3.5″ (8.9 cm) 2 rack spaces x 19″ (48.3 cm) rack mounting x 15.9″ (40 cm) deep to rear support ears5.25″ (13.3 cm) 3 rack spaces x 19″ (48.3 cm) rack mounting x 15.9″ (40 cm) deep to rear support ears | ||||||
| Weight – Net | 35 lb (15.9 kg) | 40 lb (18.2 kg) | 44.5 lb (20.2 kg) | 75 lb (33.1 kg) | |||
| Weight – Shipping | 41 lb (18.6 kg) | 46 lb (20.9 kg) | 50.5 lb (23 kg) | 87 lb (37.2 kg) | |||
