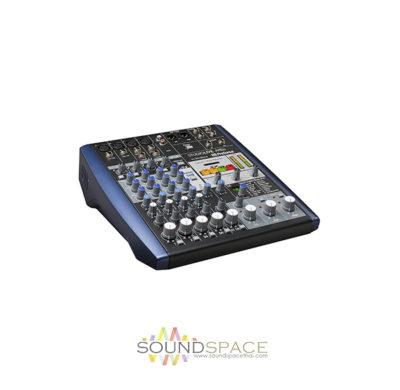

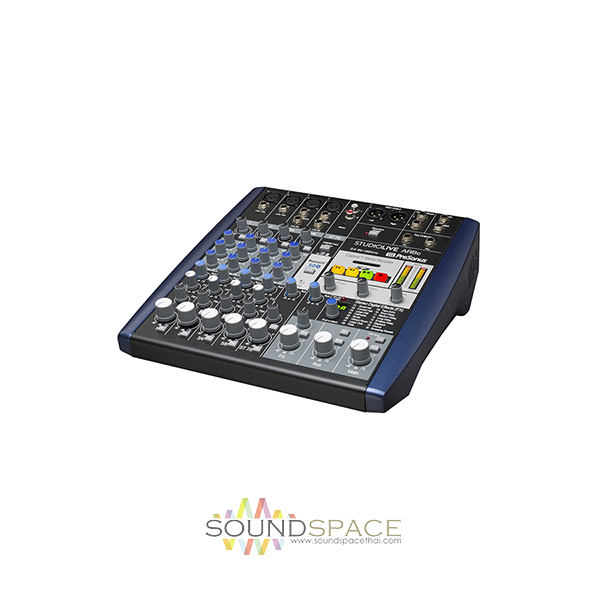

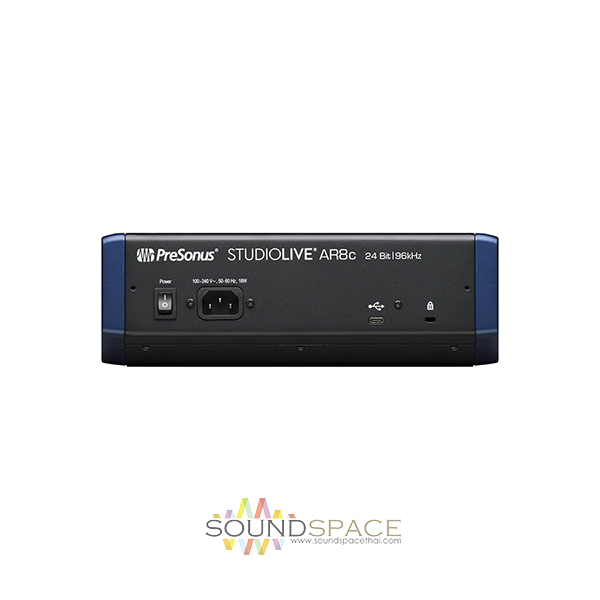

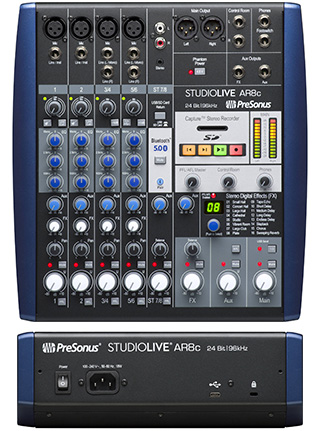

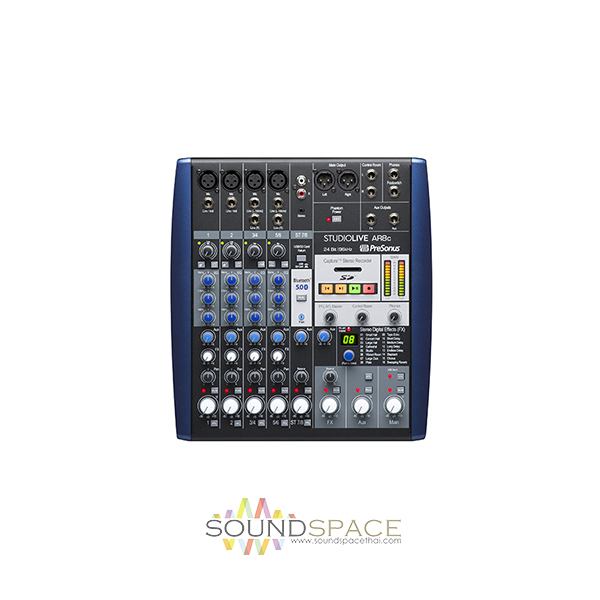

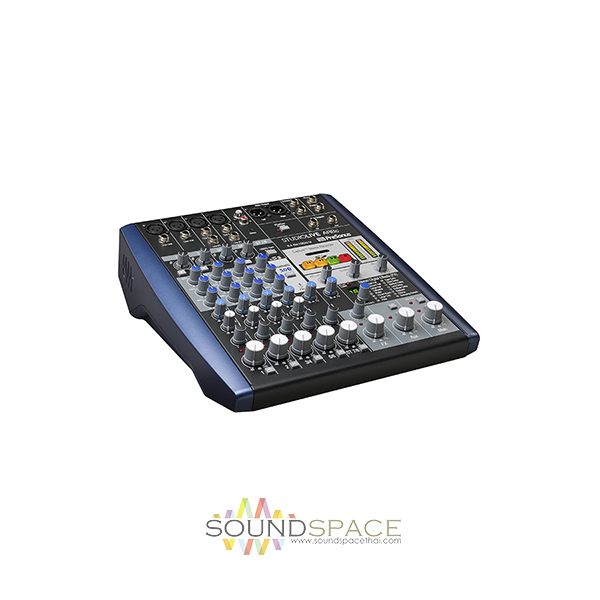

มิกเซอร์ PreSonus StudioLive AR8C USB Type-C Mixer
มิกเซอร์แบบอนาล็อค PreSonus StudioLive AR8c USB Type-C 8-Channel Hybrid Performance and Recording Mixer, 2 Mono and 2 Stereo Channels, Stereo Super Channel, 8×4 24-Bit / 96 kHz USB Audio Interface, Built-In 2×2 SD Recorder
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿17,900.00
Description
PreSonus StudioLive AR8c USB Type-C 8-Channel Mixer
มิกเซอร์แบบอนาล็อค PreSonus StudioLive AR8c USB Type-C 8-Channel Hybrid Performance and Recording Mixer, 2 Mono and 2 Stereo Channels, Stereo Super Channel, 8×4 24-Bit / 96 kHz USB Audio Interface, Built-In 2×2 SD Recorder
PreSonus StudioLive AR8c is an 8-channel hybrid performance and recording mixer well suited for a variety of applications including mixing and recording live shows, studio productions, band rehearsals, podcasts, and more. Updates to the AR8c include a USB Type-C connection, Bluetooth 5.0, and a redesigned mixer panel and layout. The mixer is packed with analog connections and digital tools that are powerful, yet easy to learn and use. The mixer features XMAX Class-A preamps and 3-band EQ.
The StudioLive AR8c offers recording with or without a computer. Multitrack record and fly in backing tracks with its 24-bit / 96 kHz, USB 2.0 audio interface or record and playback a stereo mix with the integrated SD digital recorder.
Additionally, the mixer features a Super Channel, which allows you to connect four stereo analog and digital sources at once, enabling the mixer to be used with high-tech devices including smartphones and tablets for wireless Bluetooth streaming. The StudioLive AR8c ships with a power cord, USB cable, Studio One 3 Artist production software, and Capture recording software.
Features:
- Perfect for acts playing small venues, podcasters, and home studio users
- 8-channel analog mixer is perfect for podcasters and singer-songwriters
- Doubles as an 8-in/4-out USB audio interface that records each channel plus the main mix
- Stereo SD recorder allows you to record full-band performances and interviews with onboard SD or SDHC card
- Super Channel integrates consumer devices into your mix
- Bluetooth 5.0 connectivity allows you to stream music from any smart device
- Apply built-in stereo effects with zero latency
- Included software helps you create professional-sounding mixes
Specifications
| Computer System Requirements | Mac Mac OS X 10.8.5 Intel Core 2 Duo Processor (Intel Core i3 or Faster Recommended)Windows Windows 7 x64 SP1 +Platform Update, 8.1 x64, 10 x64 Intel Core 2 Duo or AMD Athlon X2 Processor (Intel Core i3 or AMD Athlon X4 or Faster Recommended)Mac and Windows Systems 4 GB RAM (8 GB or More Recommended) 30 GB Hard-Drive Space (Studio One) Internal or External 7200 RPM Storage Drive Highly Recommended Monitor with 1366×768 Resolution (High-DPI Monitor Recommended) |
| Microphone Preamplifier | Type: XLR Female, Class-A Maximum Input Level (Unity Gain): +22 dBu, ±1.0 dB Gain Control Range Mono Channels: 50 dB, ±1 dB (Unity to +50 dB) Stereo Channels: 40 dB, ± 1 dB (+5 to +45 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 20 Hz to 40 kHz, +0.5/- 1.5 dB S/N Ratio to Outputs (+4 dBu): 94 dB THD+N (min. gain, A-Wtd): < 0.01% Input Impedance: 1 Kilohms EIN (+55 dB gain, 150 Ohms input, 20 Hz to 22 kHz, A-Wtd): <128 dBu Common Mode Rejection Ratio (1 kHz, +55 dB gain): 65 dB Phantom Power: +48V, ±3V, GlobalNote: All Channel Inputs Sum Through Mic Preamp |
| Instrument Inputs | Type: ¼” / 6.35 mm TS female, unbalanced, Hi-Z Maximum Input Level (min. gain, 1 kHz at 0.5% THD+N): +22 dBu, ±1.0 dB Gain Control Range: 50 dB, ±1 dB (Unity to +50 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 20 Hz to 40 kHz, +0.5/-1.5 dB Dynamic Range (Min. Gain, A-wtd): >105 dB Dynamic Range (Mid. Gain, Unwtd): >100 dB THD+N (1 kHz, -1 dBFS, A-wtd): <0.01% THD+N (1 kHz, -1 dBFS, Unwtd): <0.01% Input Impedance: >1 Megohms |
| Line Inputs | Type: ¼” / 6.35 mm TRS Female, Balanced Maximum Input Level (Min. Gain, 1 kHz at 0.5% THD+N): +22 dBu, ±1.0 dB Gain Control Range Mono Channels: 50 dB, ±1 dB (-20 to +30 dB) Stereo Channel: 50 dB, ±1 dB (-15 to +25 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 10 Hz to 40 kHz, +0.5/-1.5 dB S/N Ratio to Analog Outputs (+4 dBu): 94 dB THD+N (1 kHz, -1 dBFS, A-Wtd): <0.01% Input Impedance (Balanced): 10 Kilohms |
| Outputs | Type (Main Outputs): XLR male, Impedance Balanced Type (Control Room, Monitor, FX Outputs): ¼” / 6.35 mm TRS Female, Balanced Rated Output Level (Main Outputs): +24 dBu, ±1.0 dB Rated Outputs Level (Control Room, Monitor, FX Outputs): +18 dBu Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB Dynamic Range (A-Wtd): >108 dB THD+N (Bandwidth 20 Hz to 20 kHz, -1 dBFS, Unwtd): <0.01% Output Impedance: 100 Ohms |
| Headphone Output | Type: ¼” / 6.35 mm TRS Female, Stereo, Unbalanced Maximum Output Level: 150 mW/ Channel @ 60 Ohms Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB Dynamic Range (A-Wtd): >103 dB THD+N (Bandwidth 20 Hz to 20 kHz, -1 dBFS, Unwtd): <0.01% |
| Crosstalk | Input to Output (Ref = +4 dBu, 20 Hz to 20 kHz, Unwtd): -85 dBu Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, Unwtd): -80 dBu |
| Signal Level LEDs | Signal: -50 dBFS (Pre EQ) Clip: -3.0 dB Before Clip (Pre EQ or Post EQ) |
| Graphic Equalizer | Low Cut: 100 Hz, -18 dB/Octave High Shelving: ±15 dB at 12 kHz Mid Peaking: ±15 dB at 2.5 kHz Mid-Band Q: Fixed, 0.55 Low Shelving: ±15 dB at 80 Hz |
| Digital Audio | Host Interface: USB 2.0 ADC Dynamic Range (Component): 114 dB ADC Dynamic Range (Measured: A-Wtd, 48 kHz): 105 dB DAC Dynamic Range (Component): 114 dB DAC Dynamic Range (Measured: A-Wtd, 48 kHz): 105 dB Bit Depth: 24-Bit Internally Supported Sample Rates: 44.1, 48, 88.2, 96 kHz Jitter: <80 ps RMS (20 Hz to 20 kHz) Jitter Attenuation: >60 dB (1 ns In => 1 ps Out) |
| Recorder | SD Recorder Supported Media Format: FAT16 Formatted SD Card, FAT32 Formatted SDHC Card Recording File Format: Stereo WAV Playback File Formats: Stereo WAV, MP3 Sampling Rate (WAV): 44.1 kHz Bit Depth (Recorded WAV): 24-Bit Media Storage Capacity: SD Card: 2 GB SDHC Card: 32 GB |
| Dimensions (H x W x D) | 3.7 x 12 x 12″ / 9.4 x 30.4 x 30.4 cm |
| Weight | Not specified by manufacturer |
