มิกเซอร์ PreSonus StudioLive AR12C USB Type-C Mixer

Name: มิกเซอร์ PreSonus StudioLive AR12C USB Type-C Mixer
Price: 21900.00 THB
Availability: InStock

มิกเซอร์แบบอนาล็อค PreSonus StudioLive AR12c USB Type-C 14-Channel Hybrid Performance and Recording Mixer, 4 Mono and 4 Stereo Channels, Stereo Super Channel, 14×4 24-Bit / 96 kHz USB Audio Interface, Built-In 2×2 SD Recorder

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿21,900.00

สอบถามและสั่งซื้อสินค้า

Category: อนาล็อคมิกเซอร์ (Analog Mixer) Tag: PreSonus

Description

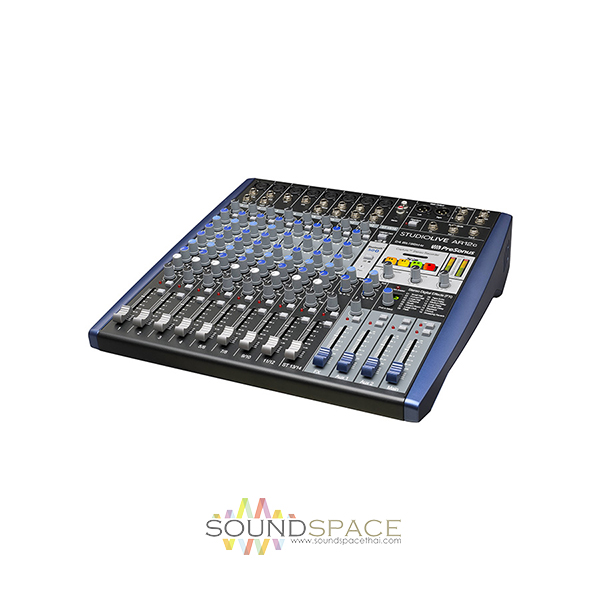

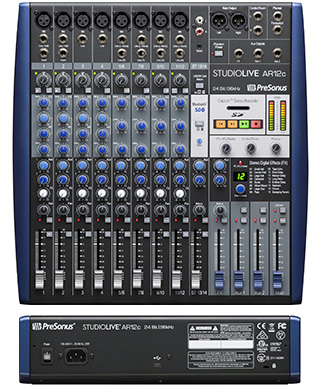

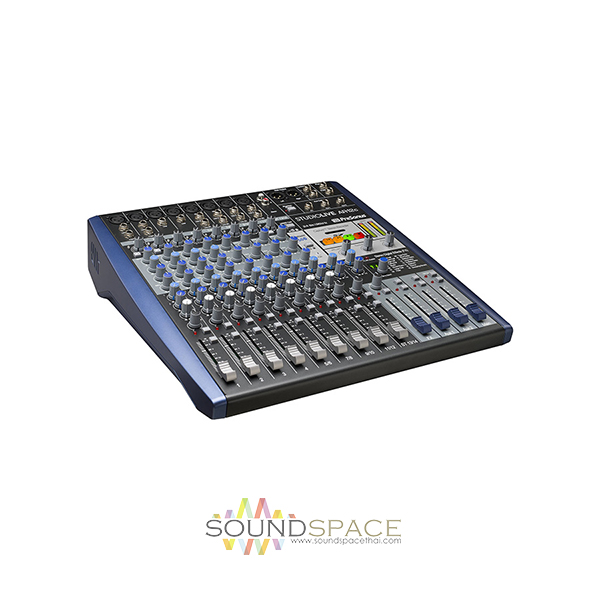

PreSonus StudioLive AR12c USB Type-C 14-Channel Mixer

PreSonus StudioLive AR12c is a 14-channel hybrid performance and recording mixer well suited for a variety of applications including mixing and recording live shows, studio productions, band rehearsals, podcasts, and more. Updates to the AR12c include a USB Type-C connection, Bluetooth 5.0, and a refresh to the design and layout. The mixer is packed with analog connections and digital tools that are powerful, yet easy to learn and use. The mixer features XMAX Class-A preamps and 3-band EQs.

The StudioLive AR12c offers recording with or without a computer. Multitrack record and fly in backing tracks with its 24-bit / 96 kHz, USB 2.0 Type-C audio interface or record and playback a stereo mix with the integrated SD digital recorder.

Additionally, the mixer features a Super Channel, which allows you to connect four stereo analog and digital sources at once, enabling the mixer to be used with high-tech devices including smartphones and tablets for wireless Bluetooth streaming. The StudioLive AR12c ships with a power cord, USB cable, Studio One 3 Artist production software, and Capture recording software.

Features:

Perfect for acts playing small venues, podcasters, and home studio users
12-channel analog mixer is perfectly sized for bands
Doubles as a 14-in/4-out USB audio interface that records each channel plus the main mix
Stereo SD recorder allows you to record full-band performances and interviews with onboard SD or SDHC card
Super Channel integrates consumer devices into your mix
Bluetooth 5.0 connectivity allows you to stream music from any smart device
Apply built-in stereo effects with zero latency
Included software helps you create professional-sounding mixes

Specifications

Computer System Requirements	Mac Mac OS X 10.11 Intel Core 2 Duo Processor (Intel Core i3 or Faster Recommended)Windows Windows 7 x64 SP1 +platform Update, 8.1 x64, 10 x64 Intel Core 2 Duo or AMD Athlon X2 Processor (Intel Core i3 or AMD Athlon X4 or Faster Recommended)Mac and Windows Systems 4 GB RAM (8 GB or More Recommended) 30 GB Hard-Drive Space (Studio One) Internal or External 7200 RPM Storage Drive Highly Recommended Monitor with 1366 x 768 Resolution (High-DPI Monitor Recommended)
Microphone Preamplifier	Type: XLR Female, Class-A Maximum Input Level (Unity Gain): +22 dBu, ±1.0 dB Gain Control Range Mono Channels: 50 dB, ±1 dB (Unity to +50 dB) Stereo Channels: 40 dB, ± 1 dB (+5 to +45 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 20 Hz to 40 kHz, +0.5/- 1.5 dB S/N Ratio to Outputs (+4 dBu): 94 dB THD+N (Min. Gain, A-Wtd): < 0.01% Input Impedance: 1 Kilohms EIN (+55 dB gain, 150 Ohms input, 20 Hz to 22 kHz, A-Wtd): <128 dBu Common Mode Rejection Ratio (1 kHz, +55 dB gain): 65 dB Phantom Power: +48V, ±3V, GlobalNote: All Channel Inputs Sum Through Mic Preamp
Instrument Inputs	Type: ¼” / 6.35 mm TS Female, Unbalanced, Hi-Z Maximum Input Level (Min. Gain, 1 kHz @ 0.5% THD+N): +22 dBu, ±1.0 dB Gain Control Range: 50 dB, ±1 dB (Unity to +50 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 20 Hz to 40 kHz, +0.5/-1.5 dB Dynamic Range (Min. Gain, A-Wtd): >105 dB Dynamic Range (Mid. Gain, Unwtd): >100 dB THD+N (1 kHz, -1 dBFS, A-Wtd): <0.01% THD+N (1 kHz, -1 dBFS, Unwtd): <0.01% Input Impedance: >1 Megohms
Line Inputs	Type: ¼” / 6.35 mm TRS Female, Balanced Maximum Input Level (Min. Gain, 1 kHz @ 0.5% THD+N): +22 dBu, ±1.0 dB Gain Control Range Mono Channels: 50 dB, ±1 dB (-20 to +30 dB) Stereo Channel: 50 dB, ±1 dB (-15 to +25 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 10 Hz to 40 kHz, +0.5/-1.5 dB S/N Ratio to Analog Outputs (+4 dBu): 94 dB THD+N (1 kHz, -1 dBFS, A-Wtd): <0.01% Input Impedance (Balanced): 10 Kilohms

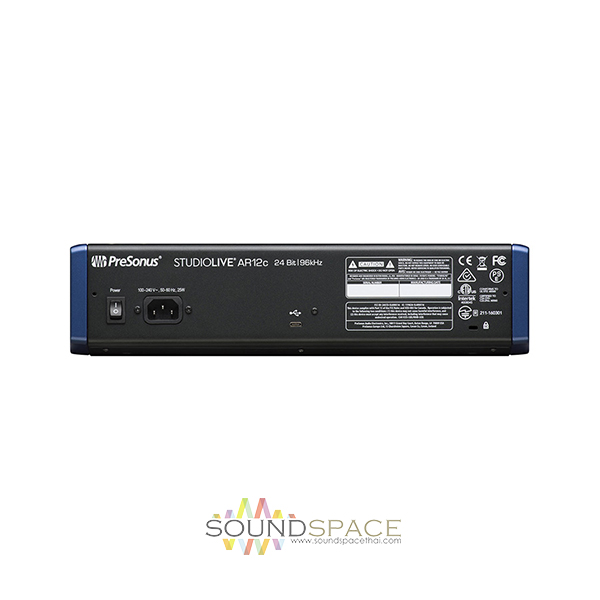

Outputs	Type (Main Outputs): XLR male, Impedance Balanced Type (Control Room, Monitor, FX Outputs): ¼” / 6.35 mm TRS Female, Balanced Rated Output Level (Main Outputs): +24 dBu, ±1.0 dB Rated Outputs Level (Control Room, Monitor, FX Outputs): +18 dBu Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB Dynamic Range (A-Wtd): >108 dB THD+N (Bandwidth 20 Hz to 20 kHz, -1 dBFS, Unwtd): <0.01% Output Impedance: 100 Ohms
Headphone Output	Type: ¼” / 6.35 mm TRS Female, Stereo, Unbalanced Maximum Output Level: 150 mW / Channel at 60 Ohms Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB Dynamic Range (A-Wtd): >103 dB THD+N (Bandwidth 20 Hz to 20 kHz, -1 dBFS, Unwtd): <0.01%
Crosstalk	Input to Output (Ref = +4 dBu, 20 Hz to 20 kHz, Unwtd): -85 dBu Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, Unwtd): -80 dBu
Signal Level LEDs	Signal: -50 dBFS (pre-EQ) Clip: -3.0 dB Before Clip (Pre EQ or Post EQ)
Graphic Equalizer	Low Cut: 100 Hz, -18 dB/Octave High Shelving: ±15 dB at 12 kHz Mid Peaking (Mono Channels): ±15 dB at 140 Hz to 3.5 kHz (Variable) Mid Peaking (Stereo Channels): ±15 dB at 2.5 kHz Mid-Band Q: Fixed, 0.55 Low Shelving: ±15 dB at 80 Hz
Digital Audio	Host Interface: USB 2.0 ADC Dynamic Range (Component): 114 dB ADC Dynamic Range (Measured: A-Wtd, 48 kHz): 105 dB DAC Dynamic Range (Component): 114 dB DAC Dynamic Range (Measured: A-Wtd, 48 kHz): 105 dB Bit Depth: 24-Bit Internally Supported Sample Rates: 44.1, 48, 88.2, 96 kHz Jitter: <80 ps RMS (20 Hz to 20 kHz) Jitter Attenuation: >60 dB (1 ns in => 1 ps out)
Recorder	SD Recorder Supported Media Format: FAT16 Formatted SD Card, FAT32 Formatted SDHC Card Recording File Format: Stereo WAV Playback File Formats: Stereo WAV, MP3 Sampling Rate (WAV): 44.1 kHz Bit Depth (Recorded WAV): 24-Bit Media Storage Capacity: SD Card: 2 GB SDHC Card: 32 GB
Dimensions (H x W x D)	3.7 x 16.0 x 15.4″ / 9.4 x 40.6 x 39.1 cm
Weight	Not specified by manufacturer
