มิกเซอร์ PreSonus StudioLive AR12 USB Analog Mixer

Name: มิกเซอร์ PreSonus StudioLive AR12 USB Analog Mixer
Price: 16700.00 THB
Availability: InStock

เครื่องผสมสัญญาณเสียง PreSonus StudioLive AR12 USB, 8 Class-A Microphone Preamps, 3-Band EQ & Wireless Bluetooth Streaming, 4 Mono & 4 Stereo Channels, 14×4 24-Bit/96 kHz USB Audio Interface, Built-In 2×2 SD Recorder, Studio One Software & Studio Magic Plug-In Suite Included

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…

~~฿20,900.00~~ ฿16,700.00

สอบถามและสั่งซื้อสินค้า

Category: อนาล็อคมิกเซอร์ (Analog Mixer) Tag: PreSonus

Description

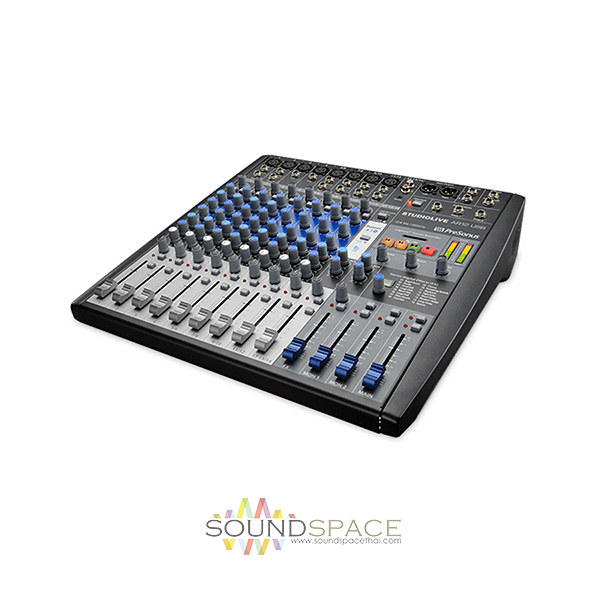

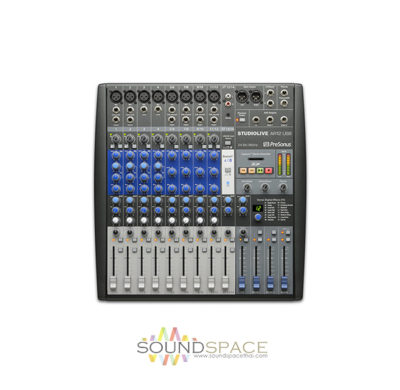

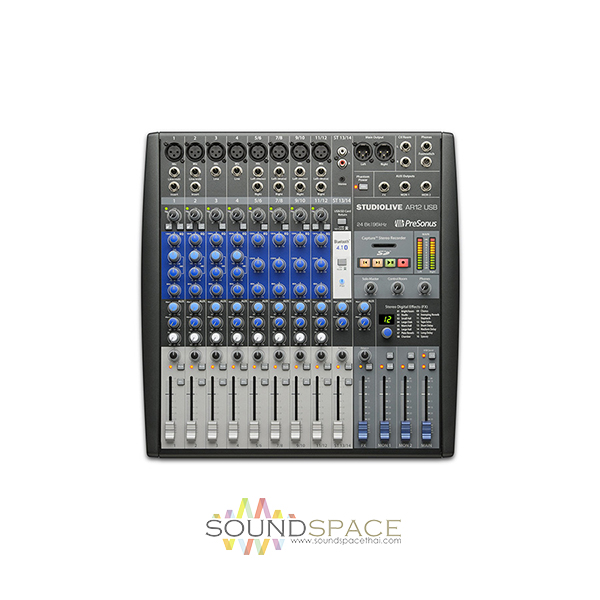

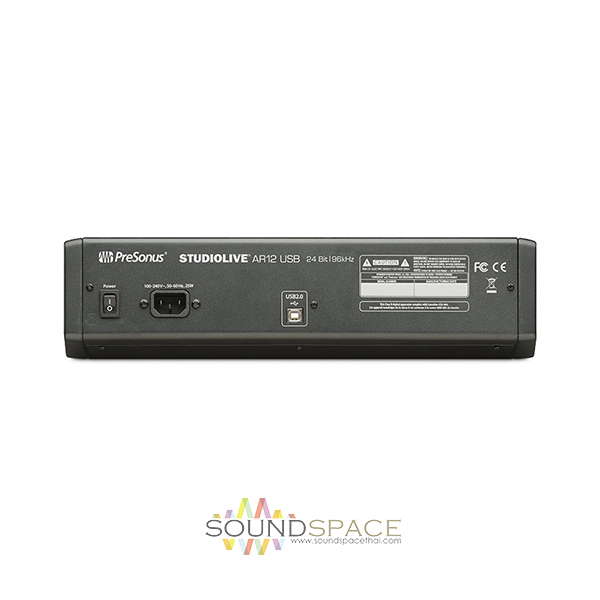

PreSonus StudioLive AR12 USB 14-Ch Hybrid Performance and Recording Mixer

The StudioLive AR12 USB from PreSonus is a 14-channel hybrid performance and recording mixer well suited for a variety of applications including mixing and recording live shows, studio productions, band rehearsals, podcasts, and more. The mixer is packed with analog connections and digital tools that are powerful, yet easy to learn and use. The mixer features Class-A preamps and 3-band EQ.

The StudioLive AR12 offers recording with or without a computer. Multitrack record and fly in backing tracks with its 24-bit/96 kHz, USB2.0 audio interface or record and playback a stereo mix with the integrated SD digital recorder. Additionally, the mixer features a Super Channel, which allows you to connect four stereo analog and digital sources at once, enabling the mixer to be used with high-tech devices including smartphones and tablets for wireless Bluetooth streaming. The StudioLive AR12 ships with a power cord, USB cable, Studio One 3 Artist production software, and Capture recording software.

Features:

Records multitrack audio as you mix for live sets, rehearsals, and podcasting
Makes a capable front end for your home studio
Sends all main tracks to Studio One Artist 3 DAW software (included)
Onboard 32GB HCSD card reader records full shows in stereo for instant access
4 mono and 4 stereo channels with +48-volt phantom, pan, mute, and PFL solo
8 Class A mic preamps capture clean vocals, guitars, and drums
8 analog 3-band EQs, semi-parametric and fixed, to sculpt your mixes
Musical low-cut filters prevent mix mud buildup
16 digital reverbs, delays, and chorus add space and texture to sources
Dedicated Bluetooth 4.1 channel streams audio from your phone — also has stereo and phono inputs for other music players
Smooth 60mm level faders for quick adjustments to fine vocal riding
2 monitor buses with dedicated channel sends
Stereo XLR outs for loudspeakers, plus outputs for studio monitors, stage monitors, and headphones
Supports USB 2.0

Specifications

Computer System Requirements	Mac Mac OS X 10.8.5 Intel Core 2 Duo processor (Intel Core i3 or faster recommended)Windows Windows 7 x64/x86 SP1 +platform update, 8.1 x64/x86, 10 x64/x86 Intel Core 2 Duo or AMD Athlon X2 processor (Intel Core i3 or AMD Athlon X4 or faster recommended)Mac and Windows Systems 4 GB RAM (8 GB or more recommended) 30 GB hard-drive space (Studio One) Internal or external 7200 RPM storage drive highly recommended Monitor with 1366×768 resolution (high-dpi monitor recommended)
Microphone Preamplifier	Type: XLR Female, Class-A Maximum Input Level (Unity Gain): +22 dBu, ±1.0 dB Gain Control Range Mono Channels: 50 dB, ±1 dB (Unity to +50 dB) Stereo Channels: 40 dB, ± 1 dB (+5 to +45 dB Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 20 Hz to 40 kHz, +0.5/- 1.5 dB S/N Ratio to Outputs (+4 dBu): 94 dB THD+N (min. gain, A-wtd): < 0.01% Input Impedance: 1 kOhms EIN (+55 dB gain, 150 Ohms input, 20 Hz to 22 kHz, A-wtd): <128 dBu Common Mode Rejection Ratio (1 kHz, +55 dB gain): 65 dB Phantom Power: +48V, ±3V, GlobalNote: All Channel Inputs sum through Mic preamp
Instrument Inputs	Type: ¼” / 6.35 mm TS female, unbalanced, Hi-Z Maximum Input Level (min. gain, 1 kHz @ 0.5% THD+N): +22 dBu, ±1.0 dB Gain Control Range: 50 dB, ±1 dB (Unity to +50 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 20 Hz to 40 kHz, +0.5/-1.5 dB Dynamic Range (min. gain, A-wtd): >105 dB Dynamic Range (mid. Gain, unwtd): >100 dB THD+N (1 kHz, -1 dBFS, A-wtd): <0.01% THD+N (1 kHz, -1 dBFS, unwtd): <0.01% Input Impedance: >1 MOhms
Line Inputs	Type: ¼” / 6.35 mm TRS female, balanced Maximum Input Level (min. gain, 1 kHz@0.5% THD+N): +22 dBu, ±1.0 dB Gain Control Range Mono Channels: 50 dB, ±1 dB (-20 to +30 dB) Stereo Channel: 50 dB, ±1 dB (-15 to +25 dB) Frequency Response to Analog Outputs: 20 Hz to 20 kHz, +0.5/-1.5 dB Frequency Response to USB (Direct): 10 Hz to 40 kHz, +0.5/-1.5 dB S/N Ratio to Analog Outputs (+4 dBu): 94 dB THD+N (1 kHz, -1 dBFS, A-wtd): <0.01% Input Impedance (Balanced): 10 kOhms
Outputs	Type (Main Outputs): XLR male, impedance balanced Type (Control Room, Monitor, FX Outputs): ¼” / 6.35 mm TRS female, balanced Rated Output Level (Main Outputs): +24 dBu, ±1.0 dB Rated Outputs Level (Control Room, Monitor, FX Outputs): +18 dBu Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB Dynamic Range (A-wtd): >108 dB THD+N (Bandwidth 20 Hz to 20 kHz, -1 dBFS, unwtd): <0.01% Output Impedance: 100 Ohms
Headphone Output	Type: ¼” / 6.35 mm TRS female, stereo, unbalanced Maximum Output Level: 150 mW/channel @ 60 ohms Frequency Response: 20 Hz to 20 kHz, +0.5/-1.5 dB Dynamic Range (A-wtd): >103 dB THD+N (Bandwidth 20 Hz to 20 kHz, -1 dBFS, unwtd): <0.01%
Crosstalk	Input to Output (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd): -85 dBu Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd): -80 dBu
Signal Level LEDs	Signal: -50 dBFS (pre-EQ) Clip: -3.0 dB before clip (pre- or post-EQ)
Graphic Equalizer	Low Cut: 100 Hz, -18 dB/Octave High Shelving: ±15 dB @ 12 kHz Mid Peaking (Mono Channels): ±15 dB @ 140 Hz to 3.5 kHz (variable) Mid Peaking (Stereo Channels): ±15 dB @ 2.5 kHz Mid-Band Q: Fixed, 0.55 Low Shelving: ±15 dB @ 80 Hz
Digital Audio	Host Interface: USB 2.0 ADC Dynamic Range (Component): 114 dB ADC Dynamic Range (Measured: A-wtd, 48 kHz): 105 dB DAC Dynamic Range (Component): 114 dB DAC Dynamic Range (Measured: A-wtd, 48 kHz): 105 dB Bit Depth: 24 bits Internally Supported Sample Rates: 44.1, 48, 88.2, 96 kHz Jitter: <80 ps RMS (20 Hz to 20 kHz) Jitter Attenuation: >60 dB (1 ns in => 1 ps out)
Recorder	SD Recorder Supported Media Format: FAT16 formatted SD card, FAT32 formatted SDHC card Media Storage Capacity: SD card: 2 GB; SDHC card: 32 GB Recording File Format: Stereo WAV Playback File Formats: Stereo WAV, MP3 Sampling Rate (WAV): 44.1 kHz Bit Depth (Recorded WAV): 24-bits
Dimensions (H x W x D)	3.7 x 16.0 x 15.4″ / 94.0 x 406.4 x 391.2 mm
Weight	Not specified by manufacturer
