ออดิโออินเตอร์เฟส PreSonus Studio26 USB 2.0 Audio/MIDI Interface
USB ออดิโออินเตอร์เฟส PreSonus Studio 26 2-Inputs and 4-Outputs, USB 2.0 Recording System, Two XMAX-L Solid-State Mic Preamps, 24-Bit/192 kHz, Direct Monitoring, MIDI I/O
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…
฿7,590.00 ฿7,190.00
Description

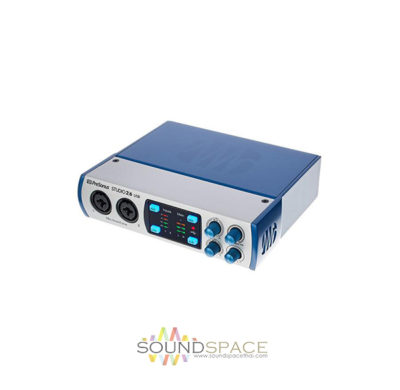

PreSonus Studio 26 2×4 USB 2.0 Audio/MIDI Interface
USB ออดิโออินเตอร์เฟส PreSonus Studio 26 2-Inputs and 4-Outputs, USB 2.0 Recording System, Two XMAX-L Solid-State Mic Preamps, 24-Bit/192 kHz, Direct Monitoring, MIDI I/O, Mac and Windows Compatible, Studio One Artist Included
The Studio 26 from Presonus is a 2×4 USB 2.0 audio and MIDI interface featuring two front-panel combo mic-and-line/instrument inputs with XMAX-L solid-state mic preamps and dedicated 5-pin DIN MIDI input/output connectors.
Two main outputs are coupled with another set of stereo L/R monitor outputs for mixing or speaker switching. Additionally, a stereo headphone output features a Cue Mix A/B, which toggles between two mixes, well suited for live-performance DJs or for listening to a performer’s monitor mix.
The Studio 26 is a complete recording solution and ships with Presonus’ Studio One Artist software.
Features:
- USB 2.0 bus-powered, 2×4 audio interface
- 24-bit resolution; 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- Two mic/instrument/line inputs with XMAX-L solid-state mic preamps
- +48V phantom power (global)
- Two balanced ¼” TRS line outputs for monitor mixing or speaker switching
- Two balanced ¼” TRS main outputs with front-panel level control
- Four ladder-style LED level meters (2 input, 2 main output)
- Stereo headphone output with Cue Mix A/B
- Direct monitoring, MIDI I/O
- Studio One Artist included, Studio Magic Plug-in Suite with Maag Audio EQ 2, SPL Attacker, Arturia instruments, and more
Specifications
General |
|
|---|---|
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, or 192 kHz |
| Converter Resolution | 24 bit |
| Converter Dynamic Range | 114 dB |
| Converter Dynamic Range | 114 dB |
Microphone Inputs |
|
|---|---|
| Maximum Level | +4.5 dBu (balanced, min gain) |
| Gain Range | 70 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.1 dB, min gain, 48 kHz) |
| Dynamic Range | 110 dB (A-wtd, min gain) |
| THD + N | 0.004% (1 kHz, -1 dBFS, unity gain) |
| EIN | -125 dBu (max gain, 150Ω, A-wtd) |
| Input Impedance | 1.6 kΩ |
| Phantom Power | +48 VDC (10 mA total) |
Line Inputs |
|
|---|---|
| Maximum Level | +19.5 dBu (balanced, min gain) |
| Gain Range | 70 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.1 dB, min gain, 48 kHz) |
| Dynamic Range | 110 dB (A-wtd, min gain) |
| THD + N | 0.007% (1 kHz, -1 dBFS, min gain) |
| Input Impedance | 10 kΩ |
Instrument Inputs |
|
|---|---|
| Maximum Level | +14 dBu (unbalanced, min gain) |
| Gain Range | 70 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.15 dB, 48 kHz, min gain) |
| Dynamic Range | 110 dB (A-wtd, min gain) |
| THD + N | 0.008% (1 kHz, -1 dBFS, min gain) |
| Input Impedance | 1 MΩ |
Line Outputs (Mains) |
|
|---|---|
| Type | ¼” TRS Female, DC Coupled* |
| Maximum Level | +10 dBu (balanced) |
| Frequency Response | 20 Hz – 20 kHz (±0.1 dB, unity gain, 48 kHz) |
| Dynamic Range | 108 dB (A-wtd) |
| THD + N | 0.0015% (1 kHz, -1 dBFS) |
Line Outputs (3/4) |
|
|---|---|
| Type | ¼” TRS Female, DC Coupled* |
| Maximum Level | +10 dBu (balanced) |
| Frequency Response | 20 Hz – 20 kHz (±0.1dB, unity gain, 48 kHz) |
| Dynamic Range | 113 dB (A-wtd) |
| THD + N | 0.008% (1 kHz, -1 dBFS) |
Headphone Outputs |
|
|---|---|
| Maximum Power | 30 mW/channel (56Ω load) |
| Frequency Response | 20 Hz – 20 kHz (±0.2 dB, 56Ω load, 48 kHz) |
| Dynamic Range | 104 dB (A-wtd, 56Ω load) |
| THD + N | 0.009% (1 kHz, -1 dBFS, no load) |
| Impedance Working Range | 32Ω to 300Ω |
Physical |
|
| Height | 1.75″ (44 mm) |
| Width | 7″ (180 mm) |
| Depth | 5.5″ (144 mm) |
| Weight | 1.6 lbs. (0.7 kg) |
