ออดิโออินเตอร์เฟส PreSonus Studio192 USB 3.0 Audio Interface

Name: ออดิโออินเตอร์เฟส PreSonus Studio192 USB 3.0 Audio Interface
Price: 29900.00 THB
Availability: InStock

USB ออดิโออินเตอร์เฟส PreSonus Studio192, I/O Up to 26 Inputs/ 32 Outputs, USB 3.0, 24-bit/192 kHz Sample Rate, 8x XMAX Remote Controllable Mic

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…

~~฿32,900.00~~ ฿29,900.00

สอบถามและสั่งซื้อสินค้า

Category: ออดิโออินเตอร์เฟส (Audio Interface) Tag: PreSonus

Description

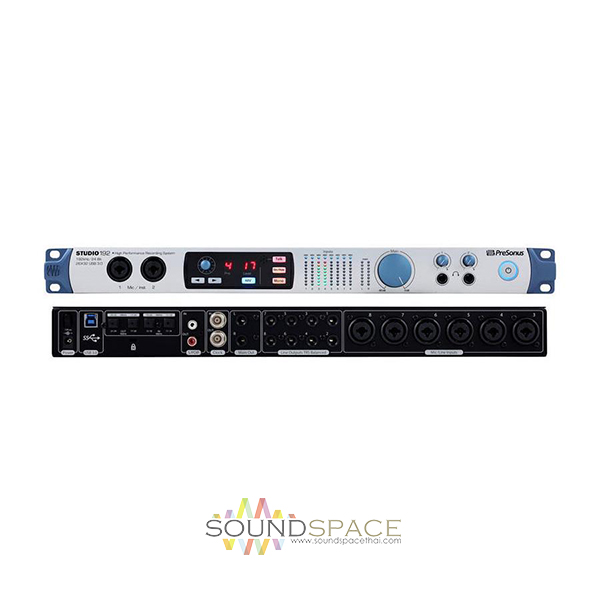

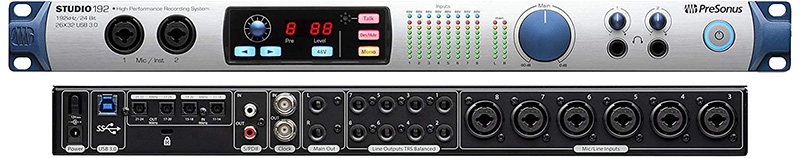

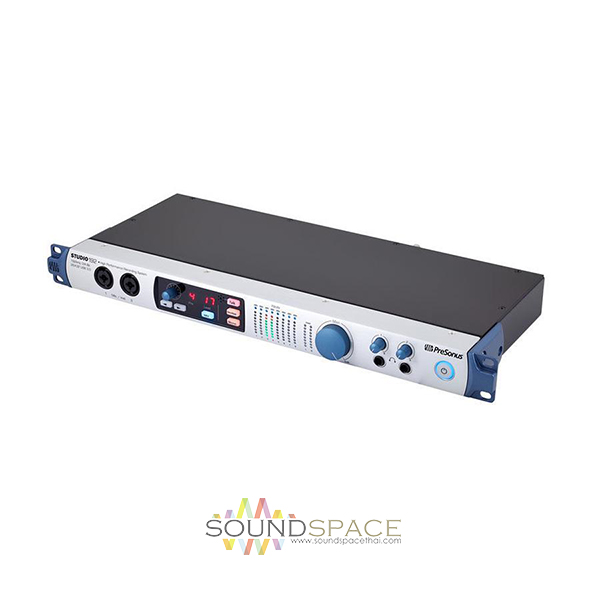

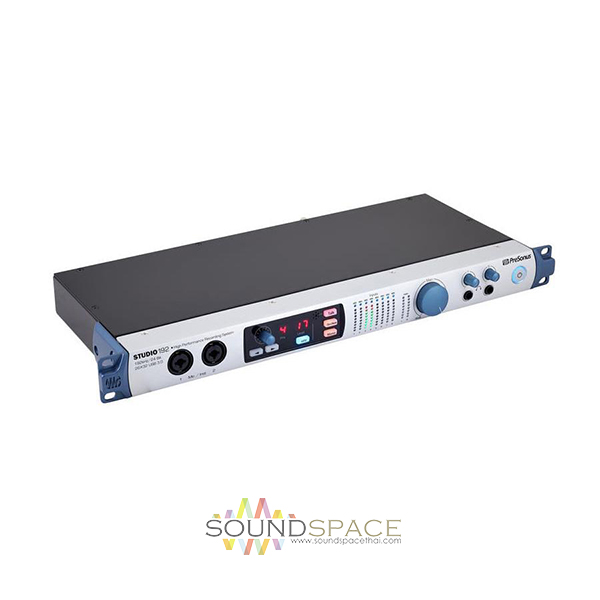

PreSonus Studio 192 26×32 USB 3.0 Audio Interface & Studio Command Center

USB ออดิโออินเตอร์เฟส PreSonus Studio192, I/O Up to 26 Inputs/ 32 Outputs, USB 3.0, 24-bit/192 kHz Sample Rate, 8x XMAX Remote Controllable Mic Preamps, For Recording, Mixing, and Editing, Zero-Latency Monitoring, Studio One Artist License Included

The Studio 192 from PreSonus is a USB audio interface with flexible connectivity in addition to professional monitoring and mixing controls in a single rack-space unit. It can be used as a central hub in project or professional studios when paired with a Mac or Windows computer for applications such as recording, editing, mixing, signal processing, and more.

Some of the features of the Studio 192 include an on-board talkback mic that can be routed to any mix, two headphone amps, and ten balanced outputs for monitor mixing or speaker switching, or both. In addition, the eight XMAX preamps now have remote control and you can control them right from within the Studio One mixer. Control preamp settings via MIDI in ProTools, Logic, or Live (sold separately), and save the settings with your recordings.

Your Studio 192 audio interface can also be an integrated extension of your recording environment. Launch Studio One and you’ll find the preamp controls, speaker switching, mono, dim, and talkback functions needed to control your Studio 192. Create zero-latency mixes with Fat Channel processing. The plug-ins run on both your computer’s processor and on your Studio 192 and switches with a seamless transition. This allows you to punch in while monitoring the same audio between playback and recording.

Finally, adding the right amount of effect and processing to a monitor mix can make a huge difference in your ability to experience a good performance naturally. The Studio 192 includes Fat Channel processing on every analog input plus a stereo reverb and delay. The Fat Channel includes a high pass filter, noise gate with key listen, compressor, 4-band fully parametric equalizer, and limiter. 50 factory presets created by professional PreSonus customers are included to help you quickly create the sound you want. The result is a better performance and a better recording.

Features:

26×32, 24-bit, 192 kHz audio interface and studio command center
Input monitoring with StudioLive^® Fat Channel DSP processing on every analog input and the first ADAT inputs
Integrated zero-latency monitoring
Speaker switching and talkback

Integrated Software

Total integration with included Studio One^® Artist DAW software (Mac^®/Windows^®) for multitrack music production, monitor mixing with effects, and studio command features
Wireless control over preamp levels from free UC Surface touch-control software for iPad^® and Android™ tablet and from free Studio One Remote for iPad and Android tablet
Wired control over preamp levels from free UC Surface touch-control software for Mac and Windows computers
Compatible with most recording software for Mac and Windows
Studio Magic Plug-in Suite included

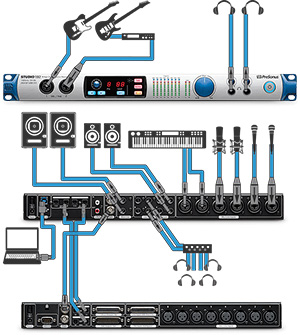

Flexible Connectivity

Simultaneous I/O up to 26 inputs/32 outputs (8×14 at 192 kHz)
Individual stereo main balanced outputs with mono, dim, mute, output metering and level control accessible from front-panel and UC Surface
2 front-panel combo microphone/instrument inputs with XMAX remote controllable mic preamps
6 rear-panel combo inputs with XMAX remote controllable mic preamps and balanced, direct-to-ADC line inputs
Individually switched 48V phantom power
8 balanced TRS ¼” outputs for monitor mixing and speaker switching
ADAT / Dual SMUX Optical inputs/outputs: 16×16 channels at 44.1 or 48 kHz; 8×8 channel at 88.2 or 96 kHz
Stereo S/PDIF coaxial input and output
BNC word clock input and output with low-jitter clocking

Digitalia

USB 3.0 audio interface
USB 2.0 compatible
24-bit resolution and up to 192 kHz sampling rate
Top-quality 118 dB A/D/A converters

Physical

Road-rugged construction with all-metal chassis and metal knobs
1U rack-mountable
12 VDC external power supply (included)

Specifications

Computer System Requirements
Mac	Operating System: OS X 10.8 or later hardware Minimum: Intel Core 2 processor, 4 GB RAM Recommended Hardware: Intel Core i3 processor or better, 8 GB or more RAM
Windows	Operating Systems: Windows 7x 64/x86 SP1 or Windows 8×64/x86 Hardware Minimum: Intel Core 2 processor, 4 GB RAM Recommended Hardware: Intel Core i3 processor or better, 8 GB or more RAM
Prerequisites for Host Computer	USB 2.0 port (USB 3.0 recommended) Internet connection Monitor resolution of 1280 x 800 px or higher 20 GB hard-disk space Internal or external 7200 RPM storage drive highly recommendedNote: The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer. The speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system.

Mic Preamp
Type	XLR female (via combo), balanced remote
Maximum Input Level	+12 dBu, +/-0.5 dB (min.gain, 1 khz @ 0.5% THD+N)
Gain Control Range	85 dB, +/-1 dB
Frequency Response	A-D: 10 Hz to 40 kHz, +/-0.2 dB
Dynamic Range	> 110 dB (A-weighted) > 105 dB mid. gain (unweighted)
THD+N	< 0.005% (min gain, unweighted)
Input Impedance	1600 ohms
EIN	< 128 dBu (+55 dB gain, 150Ω input, 20 Hz-22 kHz, A-weighted)
Common Mode Rejection Ratio	>55 dB (1 kHz, +55 dB gain)
Phantom Power	+48 V, +/- 3 V, > 8 mA per channel

Instrument Inputs
Type	¼” (6.3 mm) TS female (via combo), unbalanced
Maximum Input Level	+16 dBu +/-0.5 dB (min. gain, 1 kHz @ 0.5% THD+N)
Gain Control Range	85 dB, +/-1 dB
Frequency Response	A-D: 20 Hz to 20 kHz, +/-0.2 dB
Dynamic Range	> 110 dB (min. gain, A-weighted) > 105 dB (mid. gain, unweighted)
THD+N	< 0.005% (1 kHz, -1 dBFS, A-weighted) < 0.005% (1 kHz, -1 dBFS, un-weighted)
Input Impedance	> 1 MOhms
Crosstalk	< -80 dB (1 kHz, channel-to-channel)

Line Inputs
Type	¼” (6.3 mm) TRS female (via combo), balanced
Maximum Input Level	+ 18 dBu, +/-0.5 dB (min. gain, 1 kHz@0.5% THD+N)
Frequency Response	A-D: 20 Hz to 20 kHz, +/-0.2 dB
Dynamic Range	> 114 dB (min. gain, A-weighted) > 105 dB (mid. gain, unweighted)
THD+N	< 0.005% (1 kHz, -1 dBFS, A-weighted)
Input Impedance	10 kOhms
Crosstalk	< -80 dB (1 kHz, channel-to-channel)

Main Outputs
Line	¼” (6.3 mm) TRS female, impedance balanced
Main Outputs	XLR male, impedance balanced
Maximum Output Level	+18 dBu, +/-0.5 dB
Frequency Response	20 Hz to 20 kHz, +/-0.2 dB
Dynamic Range	>112 dB (A-weighted)
THD+N	< 0.005% (1 kHz, -1 dBFS, un-weighted)
Output Impedance	51 ohms
Crosstalk	< -80 dB (1 kHz, channel-to-channel)

Headphone Output
Type	¼” (6.3 mm) TRS female, stereo, unbalanced
Maximum Output Level	150 mW/channel @ 60 ohms
Frequency Response	20 Hz to 20 kHz, +/-0.3 dB
Dynamic Range	> 103 dB (A-weighted)
THD+N	< 0.005% (1 kHz, -1 dBFS, unweighted)
Crosstalk	< -80 dB (1 kHz, channel-to-channel)

Internal Talkback Mic
Type	Electret condenser
Sensitivity	-42 dB
Signal Level LEDs	1: -50 dBFS 2: -30 dBFS 3: -20 dBFS 4: -10 dBFS 5: -6 dBFS 6: -4 dBFS 7: -2 dBFS Clip: -0.5 dBFS

Digital Audio
Host Interface	USB 3.0 (backwards compatible to USB 2.0)
Dynamic Range	ADC: 118 dB (A-weighted, 48 kHz) DAC: 118 dB (A-weighted, 48 kHz)
Bit Depth	24-bit
Sample Rate	Internally Supported: 44.1, 48, 88.2, 96, 176.4, 192 kHz
ADAT	Optical I/O: ADAT/SMUX II formats supported [16×16 (44.1/48 kHz), 8×8 (88.2/96 kHz)]
S/PDIF	I/O: RCA female connections, supported up to 96 kHz
Word Clock I/O	BNC connector, 4.5 Vpp @ 75 ohms load
