ปรีแอมป์ PreSonus Studio Channel VacuumTube Channel Strip

Name: ปรีแอมป์ PreSonus Studio Channel VacuumTube Channel Strip
Price: 12500.00 THB
Availability: InStock

ปรีแอมป์ PreSonus Studio Channel Strip with Class A Vacuum Tube Preamplifier, Variable VCA Compressor, and 3-band Parametric EQ, Pre/Post compressor switch

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

~~฿13,900.00~~ ฿12,500.00

สอบถามและสั่งซื้อสินค้า

Category: ไมค์ปรีแอมป์ (Microphone Preamp) Tag: PreSonus

Description

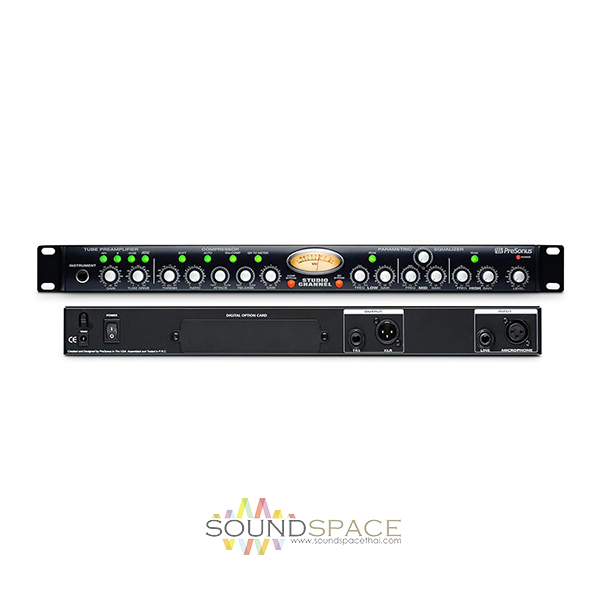

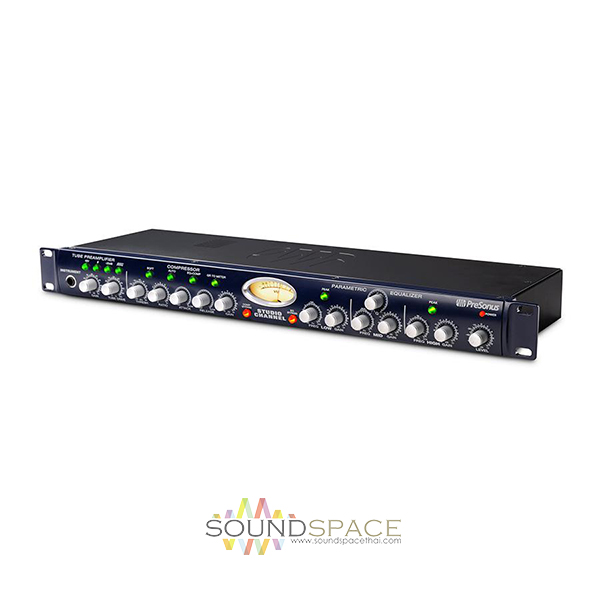

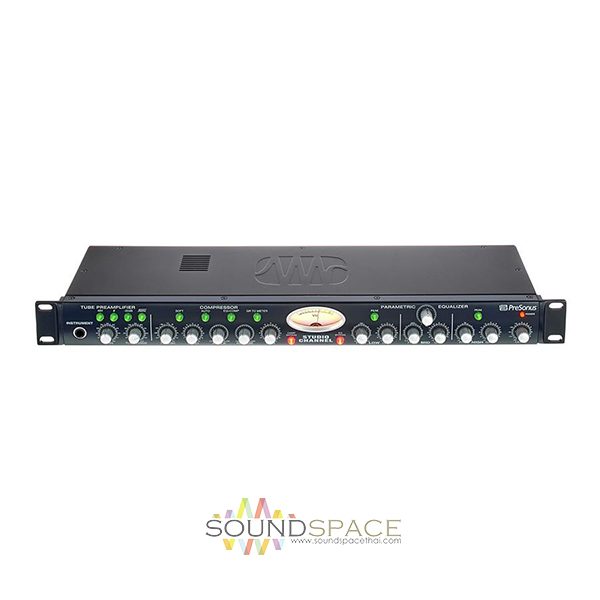

PreSonus Studio Channel 1-Channel VacuumTube Channel Strip

ปรีแอมป์ PreSonus Studio Channel Strip with Class A Vacuum Tube Preamplifier, Variable VCA Compressor, and 3-band Parametric EQ, Pre/Post compressor switch, Precision analog VU meter for gain reduction and output, 20dB pad, Phase invert

The Presonus Studio Channel is a channel strip that features a tube preamp, a VCA compressor, and a 3-band parametric EQ. The tube preamp section features two knobs: Gain and Tube Drive. This allows you to adjust the amount of signal that hits the tube circuitry, opening up a wide range of sonic options.

The VCA compressor section is well-suited to help all different kinds of audio sit nicely in a mix, whether it’s percussion with fast transients, or smooth and silky vocals. The parametric EQ features a custom amplifier with a gain control on each of the 3 bands, with a variable Q knob on the mid frequency.

If you’re curious about outboard gear and want to upgrade your signal path from the stock preamp found on most audio interfaces, the Presonus Studio Channel is an excellent choice for deeper sonic exploration. Likewise, experienced professionals will appreciate the Studio Channel’s solid set of sound shaping tools, as well as its afforable pricetag.

Features:

Class A vacuum tube microphone / instrument preamplifier
Tube gain and tube drive
Variable VCA compressor (threshold, ratio, attack, release, make up gain, auto, soft)
Three-band parametric EQ

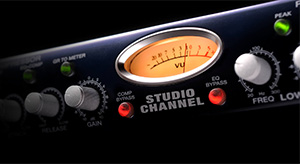

Precision analog VU meter for gain reduction and output
EQ Pre/Post compressor switch
80Hz highpass filter, 20dB pad
Phase invert, High-headroom, Ultra-low-noise design

Specifications

Number of Channels	Single

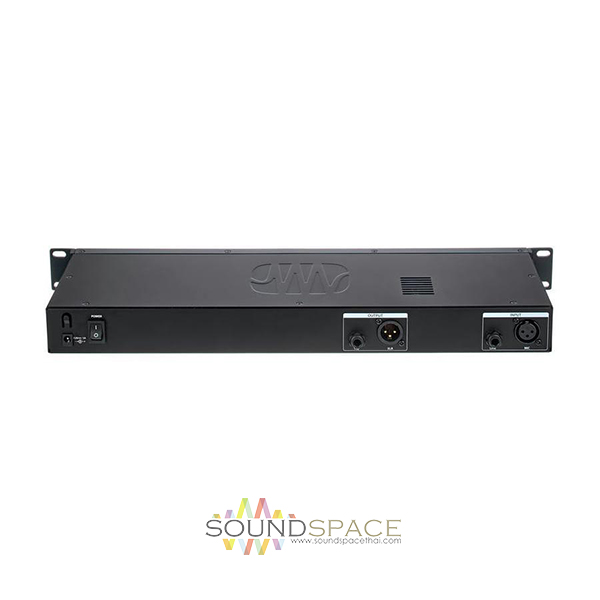

Inputs	1 x XLR 1 x 1/4″ TS, unbalanced
Outputs	1 x XLR 1 x 1/4″ TRS, balanced
Frequency Response	10 Hz to 50 kHz
Noise	-96 dBu

Preamp
Gain Range	-6 to +66 dB (+/-10 dB trim on line input)
Maximum Output	+22 dBu
Phantom Power	+48V

Compressor
Threshold Range	-40 to +2 dBu
Ratio	1-10 (1:1 to 2:1)
Attack Time	0.1 to 200 ms
Release Time	0.05 to 3S ms
Sidechain	No
Frequency Bands	Low frequencies = variable from 40 to 500 HzMid frequencies = variable from 200 Hz to 3 kHzHigh frequencies = variable from 2 to 20 kHz
Range (Boost/Cut)	Low and high frequencies = variable between +/-10 dBMid frequencies = variable from -10 to +10 dB

Physical
Power Requirements	120 VAC, 60 Hz for included external power adapter
Dimensions (WxDxH)	19 x 5.5 x 1.75″ (483 x 140 x 44 mm)
Weight	5 lb (2.3 kg)
Specialties	Tube gain and tube driveEQ Pre/Post compressor switch
