ออดิโออินเตอร์เฟส PreSonus Studio 68C USB-C Audio Interface
ออดิโออินเตอร์เฟส PreSonus Studio 68C, 6-in/6-out USB-C Audio Interface with 4 XMAX Preamps, Cue Mix A/B Headphone Output Switching, S/PDIF I/O, MIDI I/O, Studio One Artist DAW, and Studio Magic Plug-in Suite Mac/PC, Musicians, Small Bands, Producers
ไม่รวมภาษีมูลค่าเพิ่ม…
฿13,200.00
Description

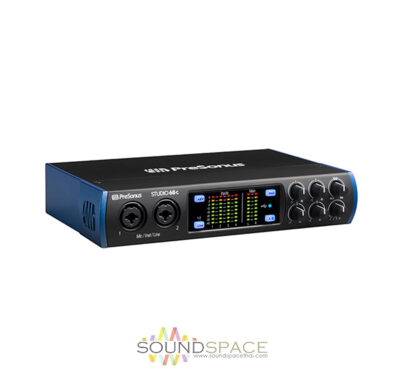

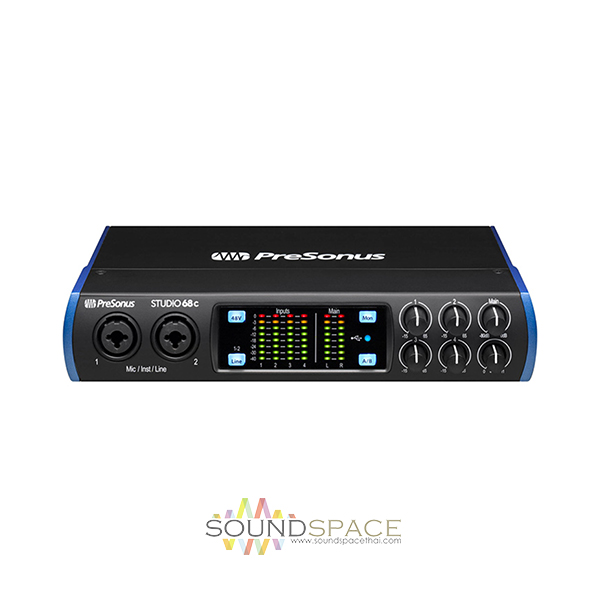

PreSonus Studio 68C Desktop 6×6 USB Type-C Audio/MIDI Interface
ออดิโออินเตอร์เฟส PreSonus Studio 68C, 6-in/6-out USB-C Audio Interface with 4 XMAX Preamps, Cue Mix A/B Headphone Output Switching, S/PDIF I/O, MIDI I/O, Studio One Artist DAW, and Studio Magic Plug-in Suite Mac/PC, Musicians, Small Bands, Producers
Offering ultra-high-resolution conversion, four Class-A preamps, and a powerful software package for vocalists, musicians, producers, and podcasters in home studios and mobile setups, the PreSonus Studio 68c desktop 6×6 USB audio/MIDI interface blends studio-quality sonic performance, versatile I/O, and refreshing ease of use.
With selectable 48V phantom power and four XMAX Class-A mic preamps fed via XLR-1/4″ combo inputs, the Studio 68c can accommodate any source from condenser microphones and active DI boxes to electric instruments and line-level mixer outputs with clarity and natural tonality.
All inputs and outputs feature quality converters that let the interface operate at resolutions up to 24-bit / 96 kHz resolution without sacrificing channel count or at 176.4 kHz or 192 kHz sample rates with 4×4 I/O functionality.
Features:
- Compact and feature-rich 6-in/6-out USB-C audio interface
- Loaded with 4 world-famous XMAX Class A microphone preamplifiers
- Enough built-in I/O for multiple monitor mixes and outboard gear
- Capable of up to 24-bit/192kHz studio-grade digital resolution (limited to 4 tracks)
- Stay on top of your mix with ladder-style LED meters and low-latency direct monitoring
- Cue Mix A/B headphone output control accommodates a number of advanced applications
- Onboard MIDI I/O provides a standard 5-pin DIN connection to keyboards and other MIDI gear
- Includes PreSonus Studio One Artist DAW software for Mac and Windows PCs
- Packaged with the complete Studio Magic Plug-in Suite — a collection of awesome plug-in emulations of classic studio gear
- USB-C to USB-C and USB-C to USB-A cables included
Specifications
| Form Factor | Desktop |
| Display | 6 x Multi-Segment LED Meter |
| Channels of I/O | Analog: 4 Inputs / 4 Outputs Digital: 2 Inputs / 2 Outputs |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | 4 Preamps |
| Input Level Adjustment | 4 x Knob |
| Expansion Slots | None |
| Pad | None |
| Gain/Trim Range | Mic Inputs: 80 dB Line Inputs: 40 dB Hi-Z Inputs: 80 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
| Analog Audio I/O | 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 2 x Combo XLR-1/4″ TRS Balanced Mic/Line Input 4 x 1/4″ TRS Balanced Line/Monitor Output (DC-Coupled) 1 x 1/4″ TRS Unbalanced Headphone Output |
| Phantom Power | 48 V, Selectable On/Off (Applied to All Inputs) |
| Phantom Power Current | 10 mA per Channel |
| Digital Audio I/O | 1 x RCA Coaxial S/PDIF Input (on Included Breakout Cable) 1 x RCA Coaxial S/PDIF Output (on Included Breakout Cable) |
| Host Connection / USB | 1 x USB-C (Class-Compliant) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input (on Breakout Cable) 1 x DIN 5-Pin Output (on Breakout Cable) |
| Other I/O | 1 x DE-9/DB-9 Breakout Cable In/Out |
| Wireless Connectivity | None |
| Frequency Response | Mic, Line Inputs: 20 Hz to 20 kHz ±0.15 dB (at 48 kHz, Min Gain) Hi-Z Inputs: 20 Hz to 20 kHz ±0.1 dB (at 48 kHz, Min Gain) Monitor Outputs: 20 Hz to 20 kHz ±0.2 dB (at 48 kHz, Unity Gain) Line Outputs: 20 Hz to 20 kHz ±0.2 dB (at 48 kHz, Unity Gain) Headphone Outputs: 20 Hz to 20 kHz ±0.2 dB (at 48 kHz) |
| Maximum Input Level | Mic Inputs: +16 dBu (Balanced, Min Gain) Line Inputs: +22 dBu (Balanced, Min Gain) Hi-Z Inputs: +15 dBu (Unbalanced, Min Gain) |
| Maximum Output Level | Line/Monitor Outputs: +18 dBu (Balanced) |
| Headphone Output Power | 150 mW per Channel into 56 Ohms (Max) |
| Impedance | Mic Inputs: 1.6 Kilohms Line Inputs: 10 Kilohms Hi-Z Inputs: 1 Megohm Headphone Outputs: 32 to 300 Ohms |
| Dynamic Range | AD/DA Converters: 114 dB Mic Inputs: 114 dBA (Min Gain) Line Inputs: 113.9 dBA (Min Gain) Hi-Z Inputs: 114.7 dBA (Min Gain) Monitor Outputs: 109 dBA Line Outputs: 109 dBA Headphone Outputs: 107 dBA |
| THD+N | Mic/Line Inputs: 0.007% (1 kHz, Min Gain, at -1 dBFS) Hi-Z Inputs: 0.012% (1 kHz, Min Gain, at -1 dBFS) Monitor Outputs: 0.001% (1 kHz, at -1 dBFS) Line Outputs: 0.0015% (1 kHz, at -1 dBFS) Headphone Outputs: 0.002% (1 kHz, at -1 dBFS) |
| EIN | Mic Inputs: -130 dBu A-Weighted |
| Sample Rates | Up to 192 kHz (AD/DA Conversion) |
| Sample Rate Conversion | None |
| Bit Depths | Up to 24-Bit (AD/DA Conversion) |
| Sync Sources | Internal, S/PDIF |
| Memory Card Slot | None |
| OS Compatibility | macOS 10.13 or Later (64-Bit Only) Windows 10 (64-Bit Only) *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Included Software | Studio One Artist Ableton Live Lite |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Supported Drivers/API & Plug-Ins | macOS Class-Compliant (No Driver Needed) |
| Processor Requirement | Mac: Intel Core i3 PC: Intel Core i3 AMD |
| RAM Requirements | 4 GB, 8 GB Recommended |
| Storage Requirements | 30 GB |
| Minimum Display Resolution | 1366 x 768 |
| Mobile Device Compatibility | None |
| Required Hardware | USB Cable (Included) Available USB 2.0 Port or USB-C Port |
| Internet Connection | Required for Registration, Software/Driver Download |
| Power Requirements | AC/DC Power Adapter (Included) |
| Rail Voltage | Preamp: +30 V |
| AC/DC Power Adapter | 12 V at 1 A, Center-Positive (Included) |
| Dimensions | 9 x 5.5 x 1.75″ / 22.9 x 14 x 4.45 cm |
| Weight | 2.4 lb / 1.1 kg |
Downloads
ดาวน์โหลด Manual PreSonus Studio 68C
