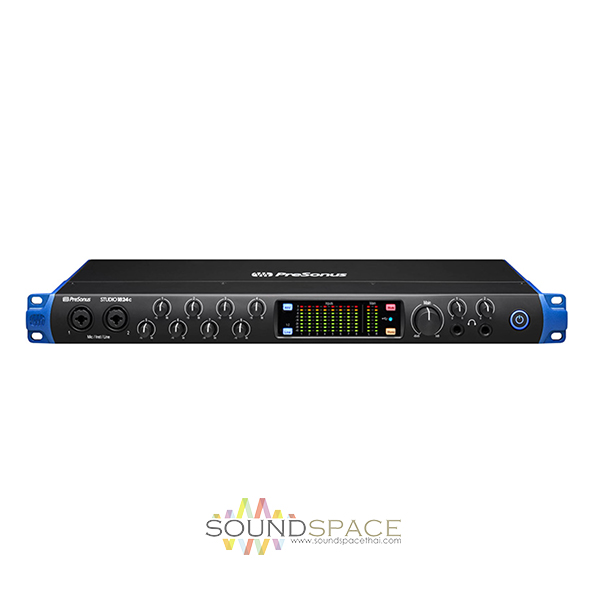

ออดิโออินเตอร์เฟส PreSonus Studio 1824C USB-C Audio Interface

Name: ออดิโออินเตอร์เฟส PreSonus Studio 1824C USB-C Audio Interface
Price: 21900.00 THB
Availability: InStock

ออดิโออินเตอร์เฟส PreSonus Studio 1824C, 18-in/18-out USB-C Audio Interface with 8 XMAX Preamps, ADAT I/O, S/PDIF I/O, MIDI I/O, Word Clock Output, DSP Monitor Mixer, Studio One Artist DAW, and Studio Magic Plug-in Suite Mac/PC

ไม่รวมภาษีมูลค่าเพิ่ม…

฿21,900.00

สอบถามและสั่งซื้อสินค้า

Category: ออดิโออินเตอร์เฟส (Audio Interface) Tag: PreSonus

Description

PreSonus Studio 1824C Rackmount 18×20 USB Type-C Audio/MIDI Interface

Offering ultrahigh-resolution conversion, eight Class-A preamps, a host of outputs, and a powerful software package for bands and engineers in project studios, the PreSonus Studio 1824c rackmount 18×20 USB audio/MIDI interface blends studio-quality, sonic performance, bountiful and expandable I/O, and refreshing ease of use, all in a sturdy chassis that occupies just a single rack space.

With selectable 48V phantom power and eight XMAX Class-A mic preamps fed via XLR-1/4″ combo inputs, the Studio 1824c can accommodate any source from condenser microphones and active DI boxes to electric instruments and line-level mixer outputs with clarity and natural tonality.

All inputs and outputs feature quality converters that let the interface operate at up to 24-bit / 48 kHz resolution without sacrificing channel count, or at a 192 kHz sample rate with 8×8 I/O functionality.

Features:

24-bit/192kHz, USB-C 18 x 18 1U audio interface (8 x 8 at 192kHz)
2 mic/instrument/line inputs and 6 mic/line inputs, all fitted with XMAX Class A mic preamps and +48-volt phantom power
8 channels of ADAT optical I/O (4 channels at 96kHz)
2-1/4″ TRS balanced main outputs with front-panel level control and dedicated Mute and Mono buttons (duplicate line outs 1/2)
8-1/4″ TRS balanced DC-coupled line outputs
2 stereo headphone outputs with independent mix streams
LED metering on all analog inputs and main outs
S/PDIF I/O, MIDI I/O
BNC word clock output
Flexible routing with zero-latency DSP-based monitor mixing
Included Studio One Artist DAW software
Monitor mix control with free UC Surface software for Mac, Windows, iPad, and Android
Packaged with the complete Studio Magic Plug-in Suite — a collection of awesome plug-in emulations of classic studio gear
USB-C to USB-C and USB-C to USB-A cables included

Specifications

Form Factor	Rackmount
Display	10 x Multi-Segment LED Meter
Channels of I/O	Analog: 8 Inputs / 10 Outputs at 192 kHz Digital: 10 Inputs / 10 Outputs at 48 kHz
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Preamps	8 Preamps
Input Level Adjustment	8 x Knob
Expansion Slots	None

Signal Processing

Pad	None
Gain/Trim Range	Mic Inputs: 80 dB Line Inputs: 40 dB Hi-Z Inputs: 80 dB
High-Pass Filter	None
Solo/Mute	Mute per Master

Connectivity

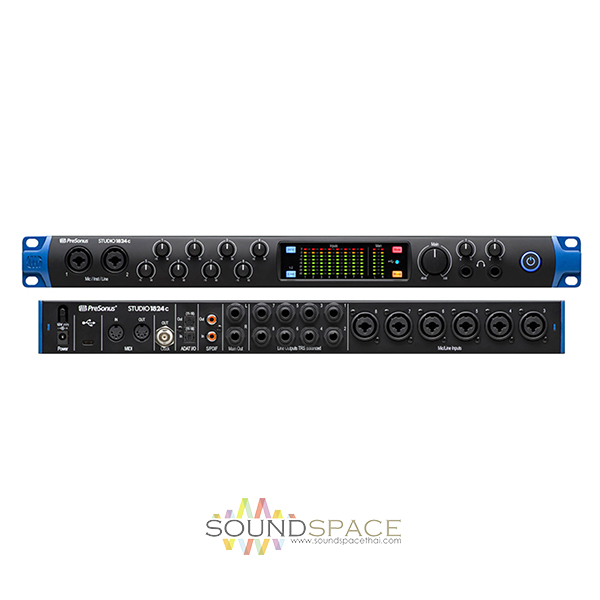

Analog Audio I/O	2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 6 x Combo XLR-1/4″ TRS Balanced Mic/Line Input 2 x 1/4″ TRS Balanced Monitor Output (DC-Coupled) 8 x 1/4″ TRS Balanced Line Output (DC-Coupled) 2 x 1/4″ TRS Unbalanced Headphone Output
Phantom Power	48 V, Selectable On/Off (Applied to All Inputs)
Phantom Power Current	> 10 mA per Channel
Digital Audio I/O	1 x TOSLINK Optical ADAT Input (S/MUX Support) 1 x TOSLINK Optical ADAT Output (S/MUX Support) 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output
Host Connection / USB	1 x USB-C (Class-Compliant)
Host Connection Protocol	USB 2.0
USB (Non-Host)	None
Sync I/O	1 x BNC Word Clock Output
Network I/O	None
MIDI I/O	1 x DIN 5-Pin Input 1 x DIN 5-Pin Output
Wireless Connectivity	None

Performance

Frequency Response	Mic, Line Inputs: 20 Hz to 20 kHz (Unity Gain) Hi-Z Inputs: 20 Hz to 20 kHz (Min Gain) Monitor Outputs: 20 Hz to 20 kHz (Unity Gain) Line Outputs: 20 Hz to 20 kHz Headphone Outputs: 20 Hz to 20 kHz (Unity Gain)
Maximum Input Level	Mic Inputs: +16 dBu (Balanced, Min Gain) Line Inputs: +21 dBu (Balanced, Min Gain) Hi-Z Inputs: +15 dBu (Unbalanced, Min Gain)
Maximum Output Level	Line/Monitor Outputs: +18 dBu (Balanced)
Headphone Output Power	150 mW per Channel into 60 Ohms (Max)
Impedance	Mic Inputs: 1.4 Kilohms Line Inputs: 10 Kilohms Hi-Z Inputs: 1 Megohm Headphone Outputs: 32 to 600 Ohms
Dynamic Range	AD/DA Converters: 114 dB Mic Inputs: 110 dBA (Min Gain) Line/Hi-Z Inputs: 112 dBA (Min Gain) Monitor Outputs: 108 dBA Line Outputs: 108 dBA Headphone Outputs: 103 dBA (1 kHz)
THD+N	Mic Inputs: 0.005% (1 kHz, Unity Gain) Line Inputs: 0.005% (1 kHz, Min Gain) Hi-Z Inputs: 0.02% (1 kHz, Min Gain) Monitor Outputs: 0.004% (1 kHz, Unity Gain, at -1 dBFS) Line Outputs: 0.004% (1 kHz, Unity Gain, at -1 dBFS) Headphone Outputs: 0.25% (1 kHz, Unity Gain)
EIN	Mic Inputs: -128 dBu A-Weighted (150-Ohm Source, Max Gain)

Digital Audio

Sample Rates	Up to 192 kHz (AD/DA Conversion)
Sample Rate Conversion	None
Bit Depths	Up to 24-Bit (AD/DA Conversion)
Sync Sources	ADAT, Internal, S/PDIF

Audio Storage & Playback

Memory Card Slot

None

Compatibility

OS Compatibility	macOS 10.13 or Later (64-Bit Only) Windows 10 (64-Bit Only) iOS 10 or Later Android 6 or Later *As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Included Software	Studio One Artist Ableton Live Lite
Compatible Software (Not Included)	Any Core Audio (Mac) Compliant Software
Supported Drivers/API & Plug-Ins	macOS Class-Compliant (No Driver Needed) Windows Driver Downloadable from Manufacturer
Processor Requirement	Mac: Intel Core i3 PC: Intel Core i3 AMD
RAM Requirements	4 GB, 8 GB Recommended
Storage Requirements	32 GB
Minimum Display Resolution	1366 x 768
Mobile Device Compatibility	iPad Pro iPad Air iPad Air 2 iPad Mini with Retina iPad Mini 4 iPad 4th Gen. Android Smartphone Android Tablet
Required Hardware	USB Cable (Included) Available USB 2.0 Port or USB-C Port
Internet Connection	Required for Registration, Software/Driver Download
