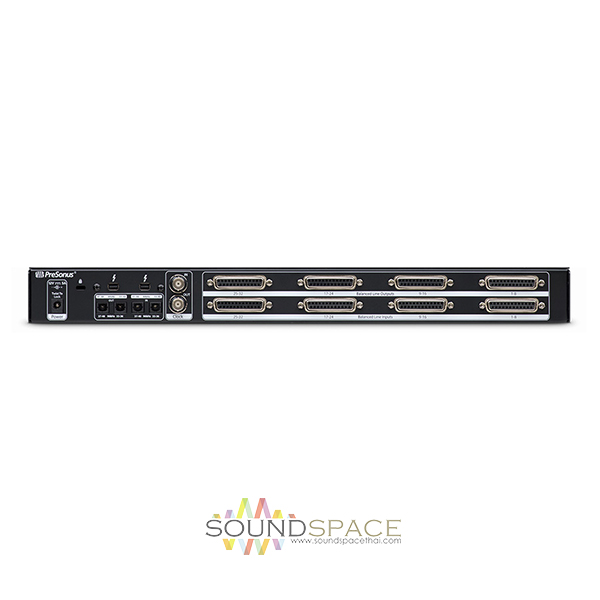

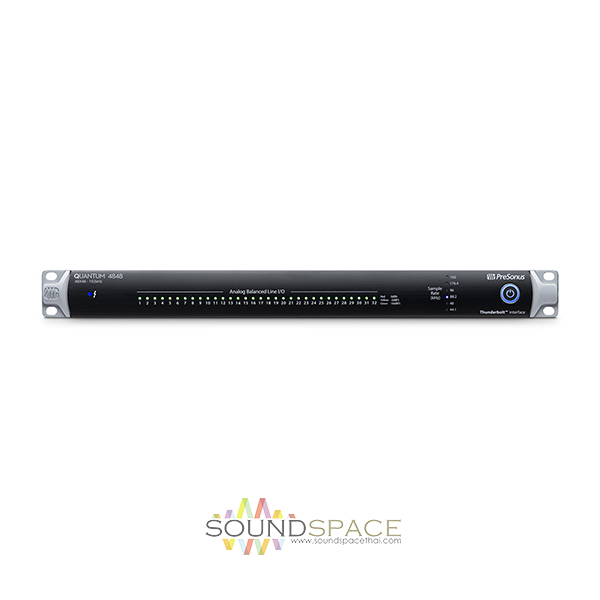

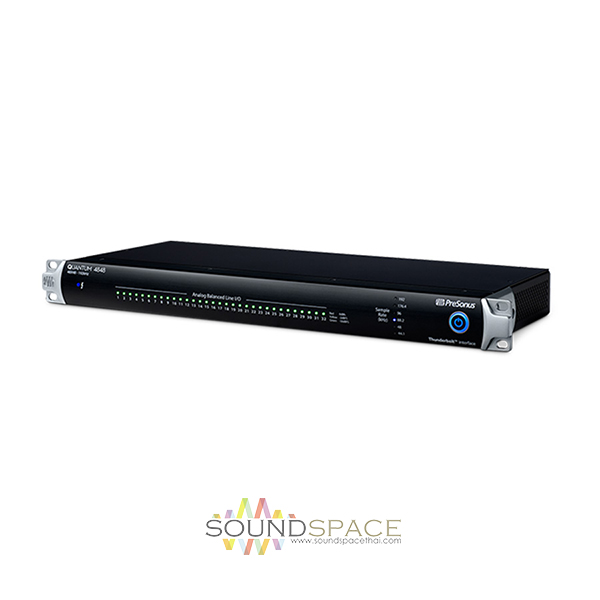

ออดิโออินเตอร์เฟส PreSonus Quantum 4848 Thunderbolt Interface

Name: ออดิโออินเตอร์เฟส PreSonus Quantum 4848 Thunderbolt Interface
Price: 58900.00 THB
Availability: InStock

ออดิโออินเตอร์เฟส PreSonus Quantum 4848 24-bit/192kHz, 48-in/48-out Thunderbolt 2 Audio Interface with 32 Channels of DB-25 Line-level I/O and ADAT Optical Digital I/O, Includes Studio One Professional DAW software for macOS and Windows

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

~~฿64,900.00~~ ฿58,900.00

สอบถามและสั่งซื้อสินค้า

Category: ออดิโออินเตอร์เฟส (Audio Interface) Tag: PreSonus

Description

PreSonus Quantum 4848 Thunderbolt 2 Low-latency Audio Interface

The PreSonus Quantum 4848 is a low-latency audio interface which, via analog and ADAT connections, gives you up to 48 inputs and up to 48 outputs. The unit’s converters allow for low-latency recording, as well as dynamic ranges greater than 120 dB on both the ADC (analog to digital) and DAC (digital to analog) side. Furthermore, the Quantum captures audio at 24-bit resolutions, achieving sample rates up to 192 kHz.

For analog I/O, the Quantum 4848 provides 32 line-level input and outputs via DB25 connectors. The optical ADAT section offers two banks of I/O with 16×16 at 44.1/48 kHz and 8×8 at 88.2/96 kHz. BNC wordclock I/O allow you to sync your interface with any digital equipment. With Studio One Professional’s Pipeline XT, you can insert your analog hardware processors into your session with automatic latency compensation.

Thunderbolt 2 ports offer connections to your host computer, and with two of them on hand, you can chain multiple units (up to four) for a total of 192×192. Additionally, any combination of Quantum interfaces is compatible to create custom systems with microphone preamps, headphone monitoring, and more. The PreSonus Quantum 4848 ships Studio One Professional and the Studio Magic plug-in suite featuring professional-quality effects from Arturia, SPL, Lexicon, Brainworks, Maag, and more.

Features:

Impressive 48-in/48-out audio interface in a 1U rackmount chassis
Thunderbolt 2 connectivity delivers such low latency, Sound on Sound called it “the fastest Thunderbolt interface on the planet” in mid 2017
32 channels of DB-25 line-level I/O for connection to consoles, patchbays, and more
Expand your system with 2 sets of ADAT I/O for enough channels to comfortably track entire bands at once
Cascade up to 4 Quantum 4848s via dual Thunderbolt 2 ports for up to 192 channels
24-bit/192kHz digital converters deliver amazingly clean sound with 120dB of dynamic range
Includes Studio One Professional DAW software for macOS and Windows
Packaged with the complete Studio Magic Plug-in Suite — a collection of 7 amazing plug-in emulations of classic studio gear by Maag Audio, Lexicon, Arturia, and others

Specifications

Interface

Display and Indicators

Multi-Segment LED Meter (Input Level)

Connectivity

Host Connection	2 x Thunderbolt (MDP)
Analog I/O	4 x DB25 Balanced 8-Channel Input 4 x DB25 Balanced 8-Channel Output
Digital I/O	None
MIDI I/O	None

Performance

Frequency Response	Line Inputs: 20 Hz to 20 kHz ±0.05 dB (at 48 kHz, Unity Gain) 20 Hz to 40 kHz ±0.1 dB (at 96 kHz, Unity Gain) Line Outputs: 20 Hz to 20 kHz ±0.05 dB (at 48 kHz, Unity Gain) 20 Hz to 40 kHz ±0.15 dB (at 96 kHz, Unity Gain)
Max Input Level	Line Inputs: +18 dBu (Balanced, Min Gain)
Max Output Level	Line Outputs: +18 dBu (Balanced)
Dynamic Range	A/D Converters: 120 dBA D/A Converters: 120 dBA Line Inputs: 118 dBA Line Outputs: 118 dBA
Impedance	Line Inputs: 10 kOhms Outputs: 51 Ohms
THD	Line Inputs: < 0.005% Line Outputs: < 0.0035%
Crosstalk	Inputs: <-110 dB Interface: <-120 dB Outputs: <-115 dB

Digital Audio

Sample Rates	44.1, 48, 88.2, 96, 176.4, and 192 kHz
Bit Depth	24-Bit

Compatibility

OS Compatibility	macOS 10.11.6 Windows 10 or Later
Processor Requirement	Intel Core i5
RAM Requirements	4 GB (8 GB Recommended)
Storage Requirements	30 GB
Minimum Display Resolution	1366 x 768
Required Hardware	Available Thunderbolt Port
Internet Connection	Required for Registration and Software/Driver Download
