มิกเซอร์มอนิเตอร์ PreSonus EarMix 16M Personal Monitor Mixer

Description

PreSonus EarMix 16M 16×2 AVB-Networked Personal Monitor Mixer

มิกเซอร์มอนิเตอร์ PreSonus EarMix 16M, 16×2 AVB-networked personal monitor mixer, 24-Bit / 48 kHz Operation, Drives Low-Impedance, In-Ear Monitors, Limiter and 3-Band EQ on All Channels, Stereo Channel Linking and Grouping, Support for PoE Power

The Presonus EarMix 16M is a 16-channel personal monitor mixer that is compatible with all StudioLive Series III mixers, as well as with other AVB-enabled systems. The EarMix 16M mixes 16 mono channels via AVB networking and provides stereo channel linking and channel grouping along with three-band EQ and limiting for each channel as well as the main mix.

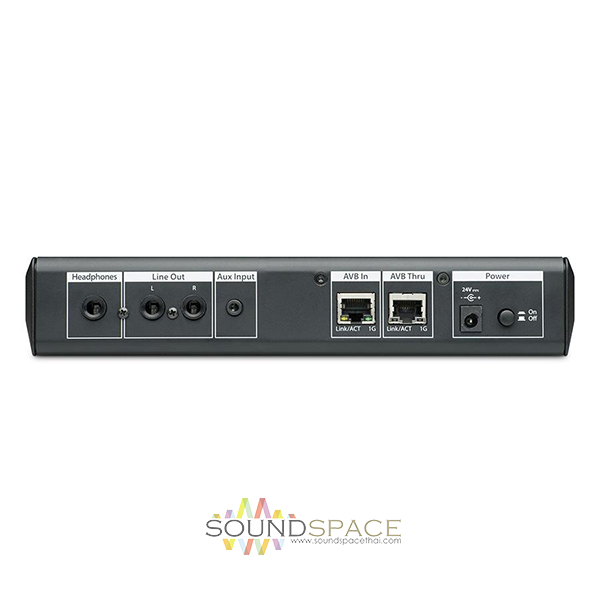

For outputs, the unit offers a pair of balanced 1/4″ TRS connectors as well as a 1/4″ headphone output with a loud, clear headphone amplifier capable of driving low impedance devices such as high-quality in-ear monitors. The two AVB jacks enable daisy-chaining up to 24 EarMix units with a StudioLive Series III mixer. The EarMix 16M can be powered by the included external power supply or over Ethernet (PoE) from a compatible switch.

Features:

• 16×2 AVB-networked personal monitor mixer
• Powerful headphone amp can drive low-impedance in-ear monitors
• 3-band EQ and limiter on all channels plus main mix
• Stereo channel linking and channel grouping
• May be powered via PoE
• 2 AVB Ethernet ports; network up to 24 units with a StudioLive Series III mixer
• 2 Balanced 1/4″ TRS line outputs
• 1/8″ stereo aux input
• Store up to 16 mix scenes for instant recall
• Signal present and clipping LED for each input
• 8-segment stereo output meter
• 24 bit, up to 48kHz operation
• Routing setup from StudioLive Series III consoles and UC Surface
• Mic-stand mounting option (available separately)
