ออดิโออินเตอร์เฟส PreSonus AudioBox 44VSL USB 2.0 Audio Interface

Name: ออดิโออินเตอร์เฟส PreSonus AudioBox 44VSL USB 2.0 Audio Interface
Price: 9900.00 THB
Availability: InStock

USB ออดิโออินเตอร์เฟส PreSonus AudioBox 44VSL, 4 Input / 4 Output, 4 Class-A Microphone Preamps, Phantom Power, Near-Zero-Latency Monitoring, Over 50 Fat Channel DSP Presets, MIDI I/O, 24-bit/96kHz, Studio One Artist Software
Studio Magic Plug-in Suite Included

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…

~~฿9,990.00~~ ฿9,900.00

สอบถามและสั่งซื้อสินค้า

Category: ออดิโออินเตอร์เฟส (Audio Interface) Tag: PreSonus

Description

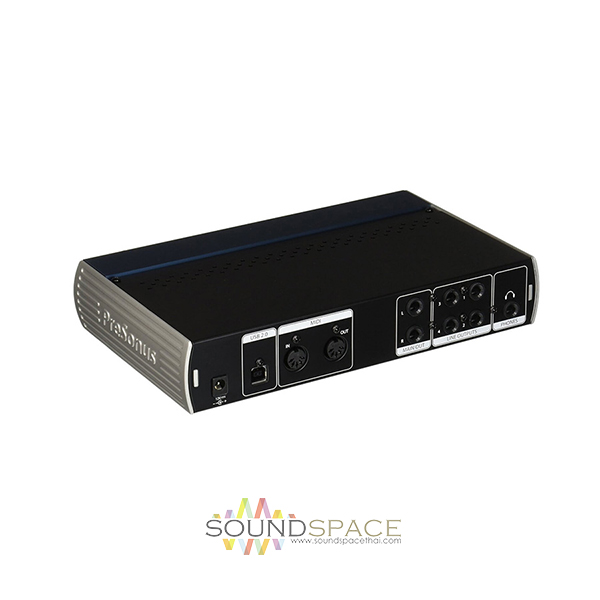

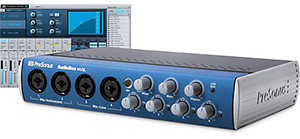

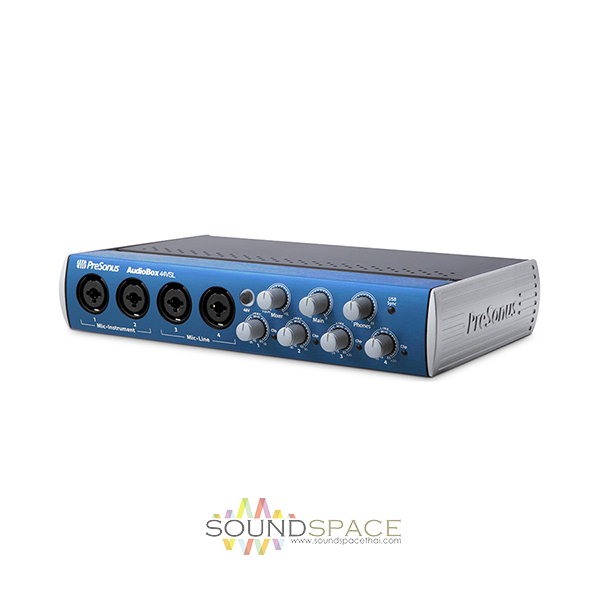

PreSonus AudioBox 44VSL USB 2.0 Recording System

The AudioBox 44VSL from Presonus is a portable 4 input/4 output USB 2.0 audio and MIDI interface that allows for monitoring with low-latency effects. Using the computer’s CPU and PreSonus Virtual StudioLive software, the interface provide reverb and delay effects and the same Fat Channel compression, limiting, semi-parametric EQ, and high-pass filter, as the PreSonus StudioLive 16.0.2 digital mixer, all with inaudible latency.

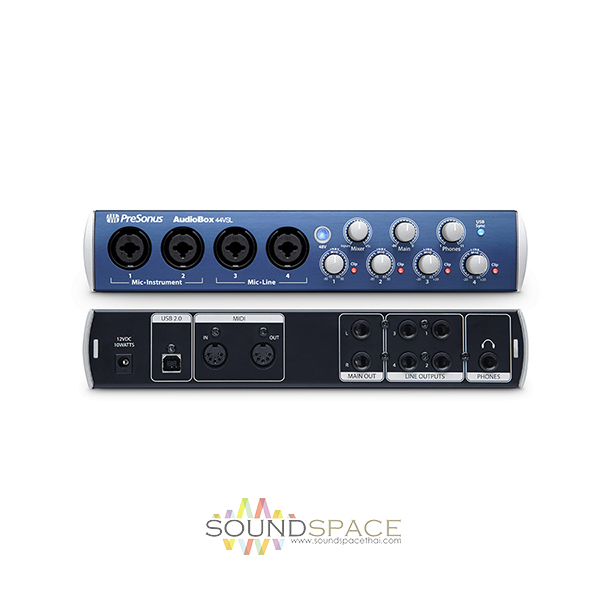

Compact and rugged, the interface offers two front-panel microphone/instrument combo and two microphone/line combo inputs, global phantom power, and six line-level outputs. It features the same high-headroom, Class-A XMAX preamps as the StudioLive mixers, and has 24-bit/96kHz converters with 114dB dynamic range for clear, clean audio.

The preamplifiers offer three key advantages – high voltage, discrete components and Class-A circuitry. The net result is low noise, wide dynamic range, extended frequency response, and most importantly, musicality and transparency. The unit is housed in a ruggedly built metal chassis. Clip lights are provided for all channels.

The interface includes an 8 x 4 software mixer that along with a laptop or other computer running VSL allows you to mix a studio session or a live show featuring, say, a guitar duo with vocals, a small band, a DJ rig with mixer and stereo synthesizer, or a panel discussion, all while monitoring and recording with or without real-time processing.

Seamlessly integrated with the included Studio One Artist DAW and VSL, the AudioBox 44VSL interface works with virtually all Mac and Windows audio-recording software.

Features:

4 input/4 output 24-bit/96kHz USB 2.0 recording interface
2 Class-A XMAX microphone/instrument preamps
2 Class-A XMAX microphone/line preamps
Individual input channel-trim controls with 0 to +35dBu microphone gain range
2 balanced 1/4″ TRS phone main outputs with level control
4 balanced 1/4″ TRS phone auxiliary line outputs
Headphone amplifier with level control
Mixer control (blends the input signal with the computer playback stream for zero-latency analog monitoring)
VSL (Virtual Studio Live) 8 x 4 Kernel mode DSP mixer with StudioLive 16.0.2 Fat Channel dynamics processing and EQ for each analog input and its DAW return and two stereo effects buses with reverb and delay
VSL includes more than 50 Fat Channel DSP presets for enhancing instrument and vocal recordings
Near-zero-latency monitoring with extensive signal processing
Analog monitor mixing with playback/input mix control knob
Power/USB sync LED, Clip lights for each channels
Globally-switchable phantom power
MIDI I/O
Includes Studio One Artist software with unlimited track count and over 4GB of third-party resources
Includes Studio Magic Plug-In Suite with Maag Audio EQ 2, SPL Attacker, Arturia Instruments and more

Specifications

Mic Preamps	4
Converters	24-bit
Sample Rates	44.1, 48, 88.4 and 96kHz
Inputs	4 x Combo XLR female
Input Impedance	Microphone: 10kΩ Line: 10kΩ Instrument: 1MΩ
Maximum Input Level	+21dBu, <0.5% THD
Gain	Microphone: -15dB to +65dB Line: -20dB to +20dB Instrument: -30dB to +50dB
Outputs	6 x 1/4″ TRS phone 1 x 1/4″ TRS phone Headphone
Output Impedance	Line: 51Ω
Maximum Output Level	Line: +10dBu, <0.5% THD Headphone: 120mW/channel @ 60Ω load
MIDI	2 x 5-pin DIN I/O
Dynamic Range	114dB (ADC and DAC) @ 48kHz, A-weighted
THD + N	Microphone: 0.002%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted Line Input: 0.002%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted Instrument Input: 0.003%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted Line Output: 0.003%, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted Headphone: 0.01%, +4dBu, 1kHz, unity gain, 20kHz BW, A-weighted
S/N Ratio	Microphone: 98dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted Line Input: 98dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted Instrument Input: 89dB, +4dBu, 1kHz, unity gain, 22kHz BW, A-weighted Line Output: 109dB, 1kHz, 22kHz BW, A-weighted Headphone: 90dB, 1kHz, maximum gain, 20kHz BW, unweighted
Noise	Microphone EIN: -133dB, 20kHz BW, maximum gain, Rs=40Ω, A-weighted
Frequency Response	Microphone: 20Hz to 22kHz, +/-0.25dB, unity gain Line Input: 20Hz to 22kHz, +/-0.25dB, unity gain Instrument Input: 20Hz to 22kHz, +/-0.25dB, unity gain Line Output: 20Hz to 22kHz, +/-0.25dB Headphone: 20Hz to 22kHz, +/-0.5dB, maximum gain
Phantom Power	48V, global switching
Controls	Trim Mains Phones Mixer 48V
Power	12 VDC external power supply (included) 1A, center-positive
Compatibility	ASIO, Core Audio, WDM, MME and multi-client drivers
System Requirements	Mac Intel Core 1 Solo 1.5GHz processor (Intel Core Duo or Intel Xeon processor recommended) OS X 10.6 or later (32- and 64-bit) 1GB RAM (2GB or more recommended) USB 2.0 Port DVD-ROM drive (required to install Studio One Artist) Internet connection recommendedPC Intel Pentium IV 1.6GHz processor or AMD Athlon 64 3000+ (Turion) (2.8GHz or faster recommended) Windows Vista, Windows 7 (32- and 64-bit) 1GB RAM (2GB or more recommended) USB 2.0 Port DVD-ROM drive (required to install Studio One Artist) Internet connection recommended
Dimensions (WxDxH)	1/2 rack space
Weight	2.6 lb (1.2kg)
Specialties	Latency: 2.8mS to 6mS, analog in to out
