ออดิโออินเตอร์เฟส Pioneer Interface2 Audio Interface
ออดิโออินเตอร์เฟส Pioneer Interface2 Digital Vinyl System Interface สำหรับเครื่องเล่นแผ่นเสียงและซีดี, 2-Sets of RCA for Inputs & Outputs Professional Quality 24-Bit, Supported Sample Rates 44.1, 48, 96 kHz
ราคาสินค้าไม่รวมภาษ๊มูลค่าเพิ่ม
฿15,000.00 ฿10,900.00
Description
Pioneer Interface2 Audio Interface with rekordbox dj and dvs
ออดิโออินเตอร์เฟส Pioneer Interface2 Digital Vinyl System Interface สำหรับเครื่องเล่นแผ่นเสียงและซีดี, 2-Sets of RCA for Inputs & Outputs Professional Quality 24-Bit, Supported Sample Rates 44.1, 48, 96 kHz, Includes Four RCA Cables Power Supply & USB Cable

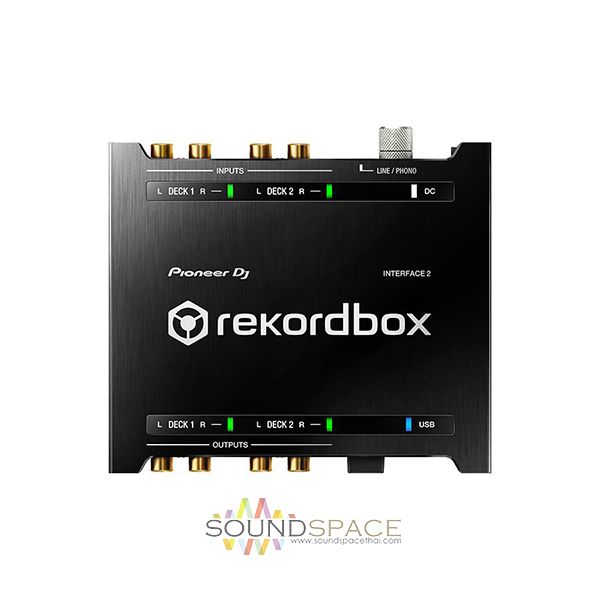

The Pioneer Interface 2 is a 2-channel audio interface designed for rekordbox dj and features rekordbox dvs, which allows you to play and scratch your digital music library from the included control vinyl disks. The Interface 2 connects to your computer via USB and offers three sample rates including 44.1, 48, and 96 kHz.

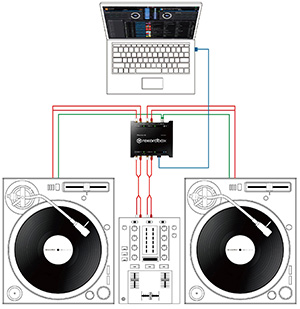

Simply connect your turntables to the RCA inputs and launch the included rekordbox dj and dvs software and start mixing right away. Alternatively, you can download a custom control signal WAV file, if you’d like to use CDs or USB drive to scratch with your players, controller, or all-in-one system.
The Pioneer Interface 2 also functions as an audio interface allowing you to record any phono or line level source. The seamless aluminum casing is robust enough to withstand the rigors of on-the-road wear and tear. Additionally, the casing extends out past the connectors for additional protection while on-the-go.

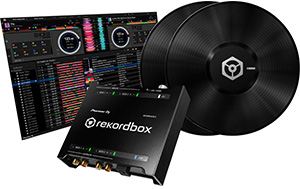

The Pioneer Interface 2 ships with a power adapter, USB cable, four rubber feet, four RCA cables, two control vinyl disks, and a registration card for the full version of rekordbox dj and rekordbox dvs.
Features:
- Digital Vinyl System Interface
- For Turntables & CD Players
- Two Sets of RCA for Inputs & Outputs
- Professional Quality: 24-Bit
- Supported Sample Rates: 44.1, 48, 96 kHz
- Dedicated Turntable Grounding Post
- Includes rekordbox dj & dvs
- Two Control Vinyl Records Included
- Includes Four RCA Cables
- Includes Power Supply & USB Cable
Specifications

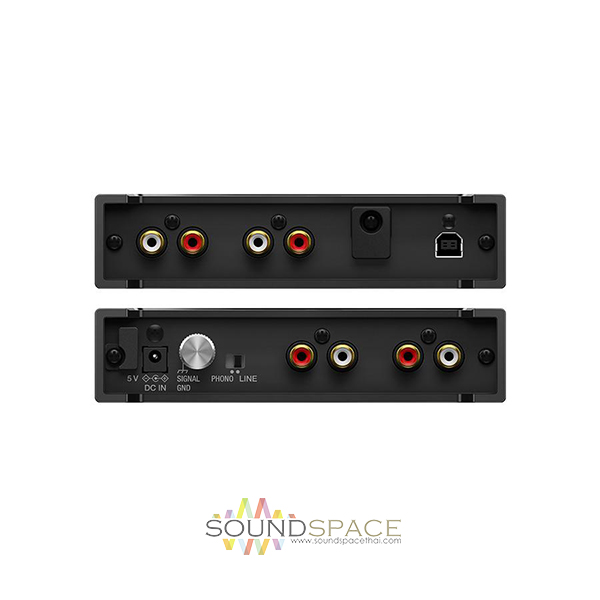

| Input and Output Connectors | Inputs 2 x Stereo RCA (phono/line)Outputs 2 x Stereo RCA (line) |
| USB | 1 x Type-B |
| Sample Rate | 44.1, 48, 96 kHz |
| AD/DA Conversion | A/D Converters: 24-bit D/A Converters: 32-bit |
| Frequency Response | Line: 20 Hz to 20 kHz |
| Signal-to-Noise Ratio (SNR) | SNR (Rated Output at 96 kHz) USB: 112 dB Line: 103 dB Phono: 100 dB |
| Total Harmonic Distortion | THD (Rated Output at 96 kHz) USB: 0.002% Line: 0.005% Phono: 0.007% |
| Maximum Input Levels | Max Input Level (at 96 kHz) Line: +12 dBu, 3.2 Vrms Phono: -22 dBu, 60 mVrms (1 kHz) |
| Rated Output | Rated Output Level: +11 dBu, 2.8 Vrms |
| Impedance | Input Impedance: 42 kOhms Load Impedance: 10 kOhms Output Impedance: 550 Ohms |
| Gain | Phono: +33 dB (1 kHz) |
| Power | 100 to 240 VAC, 50/60 Hz |
| Rated Current | 0.4 A |
| Rated Output Power | 5 VDC, 2 A |
| Power Consumption | 5 VDC, 600 mA |
| Temperature & Humidity | Operating Temperature: 41 to 95°F / 5 to 35°C Operating Humidity: 5% to 85% (no condensation) |
| Dimensions (W x H x D) | 5.6 x 1.3 x 5.1″ / 142.2 x 33.0 x 129.5 mm |
| Weight | 1.6 lb / 0.7 kg |
| Packaging Info | |
|---|---|
| Package Weight | 4.95 lb |
| Box Dimensions (LxWxH) | 13.4 x 12.7 x 3.3″ |
