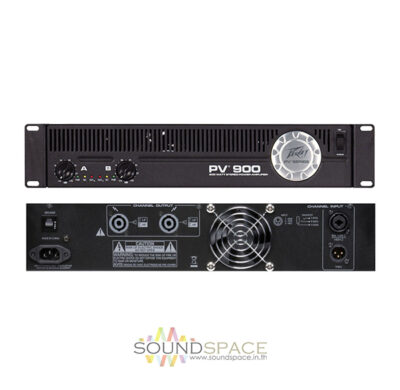

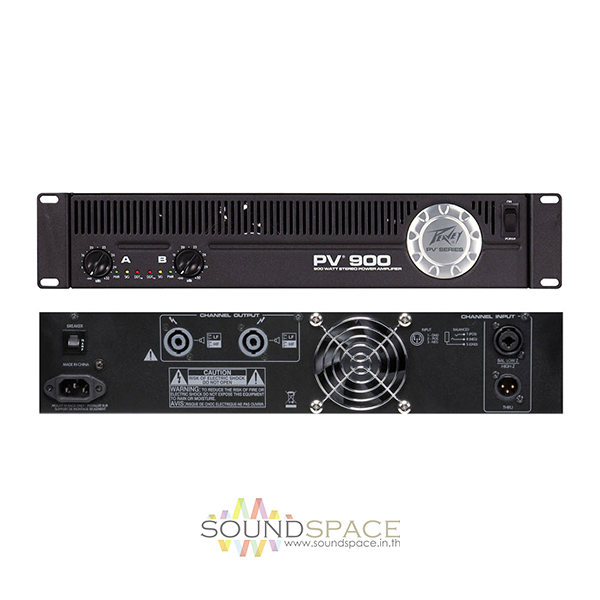

เพาเวอร์แอมป์ PEAVEY PV 900 Power Amplifier
เครื่องขยายเสียงกลางแจ้ง PEAVEY PV 900 มีกำลังขับ 2×300 วัตต์/4 Ohms, 2×180 วัตต์/8 Ohms, 2×450 วัตต์/2 Ohms
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿27,500.00 ฿19,000.00
Description
เครื่องขยายเสียง PEAVEY PV 900 Power Amplifier
เครื่องขยายเสียงกลางแจ้ง PEAVEY PV 900 มีกำลังขับ 2×300 วัตต์/4 Ohms, 2×180 วัตต์/8 Ohms, 2×450 วัตต์/2 Ohms
The PV900 from Peavey is a rackmount 2-channel power amplifier ideal for installation applications. The amplifier has a large toroidal transformer and storage capacitors to provide a powerful performance. The DDT compression system uses a soft limiter to prevent distortion and protect the amplifier and any connected speakers.
The amplifier can operate in either stereo or bridged mono mode, providing terrific versatility. Each channel has its own detented gain control for precise adjustment. The rear panel offers XLR/TRS combo inputs and a barrier strip input, as well as Speakon and binding post outputs, allowing you to connect to virtually any sound source or speaker system. High and low 1/4″ crossover jacks let you connect to other amplifiers for additional flexibility.
The PV900 also has Peavey’s patented Turbo-V cooling system, which uses variable-speed fans to keep system components cool. Built-in protection circuitry helps to protect against overheating, short circuits, clipping, DC, and faulty loads.
Rackmount Design
The amplifier can be mounted in a standard equipment rack and has a 14 gauge steel chassis for a long life of professional use
Multiple Modes
The amplifier offers stereo or bridged mono operating modes for versatile performance
Large Transformer
The large toroidal transformer and storage capacitors provide a strong, clear performance
DDT Compression System
The DDT compression system uses a soft limiter to help prevent distortion
Multiple Inputs
The rear panel offers XLR/TRS combo inputs and a barrier strip input
Multiple Outputs
The amplifier can connect to speaker systems via Speakon outputs or 5-way binding post connectors
150Hz Crossovers
The amplifier has dual 150Hz crossovers, each with 1/4″ outputs for connecting to additional amplifiers
Individual Gain Controls
Each channel has its own detented gain control knob
Patented Turbo-V Cooling
The patented Turbo-V cooling system uses variable-speed fans to keep internal components running smoothly
Protection Circuitry
Built-in protection circuitry protects against overheating, short circuits, clipping, DC, and faulty loads
Specifications
| Power Rating | 180W/Channel @ 8 Ohms Stereo
300W/Channel @ 4 Ohms Stereo 450W/Channel @ 2 Ohms Stereo 600W @ 8 Ohms Bridged Mono 900W @ 4 Ohms Bridged Mono |
|
| Damping Factor | > 300 | |
| Input Sensitivity | 0.87VRMS (-1.2dBV) (Rated Output, 4 Ohms) | |
| Input Impedance | 10 kOhms | |
| Gain | 32dB | |
| Frequency Response | 20Hz – 20kHz | |
| Signal-to-Noise Ratio | 100dB | |
| Total Harmonic Distortion (THD) | < 0.03% | |
| Connectors | 2 x XLR/TRS Combo Inputs
1 x Barrier Strip Input 3 x Speakon Outputs 2 x 5-Way Binding Post Outputs 2 x 1/4″ Crossover Outputs (4 Total Jacks) 1 x AC Power Input |
|
| Controls | 2 x Gain Control Knobs
1 x Mode Switch 1 x DDT Switch 2 x Low Cut Switches 2 x Crossover Switches 1 x Power Switch |
|
| Indicators | 2 x Power LEDs
2 x Signal LEDs 2 x DDT LEDs |
|
| Cooling | Dual-Speed Cooling Fans | |
| Power Consumption | 5.0A | |
| Power Requirements | 100-220VAC, 50/60Hz | |
| Dimensions (HxWxD) | 3.5 x 19 x 15.5″ (89 x 483 x 380mm) | |
| Weight | 40 lbs (18.2kg) | |
| Packaging Info | ||
| Box Dimensions (LxWxH) | 23.0 x 21.0 x 6.0″ | |
