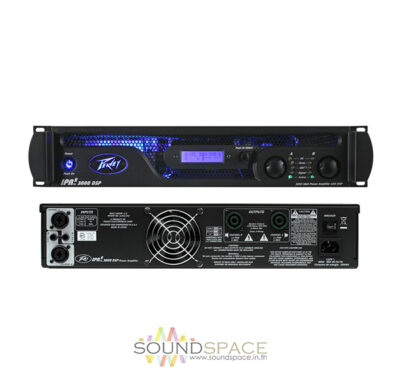

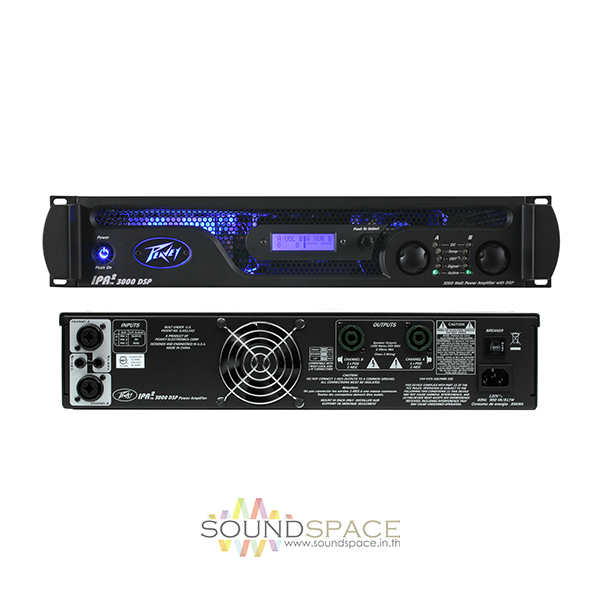

เพาเวอร์แอมป์ PEAVEY IPR2 3000DSP Power Amplifier
เครื่องขยายเสียงกลางแจ้ง PEAVEY IPR2 3000DSP มีกำลังขับ 2×950 วัตต์/4 Ohms,2×1750 วัตต์/2 Ohms,2×525 วัตต์/8 Ohms
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม
฿45,000.00 ฿21,000.00
Description
เครื่องขยายเสียง PEAVEY IPR2 3000DSP Power Amplifier
เครื่องขยายเสียงกลางแจ้ง PEAVEY IPR2 3000DSP มีกำลังขับ 2×950 วัตต์/4 Ohms,2×1750 วัตต์/2 Ohms,2×525 วัตต์/8 Ohms
IPR2™ power amplifiers, designed for years of reliable, flawless operation under rigorous use. The groundbreaking IPR2 series utilizes an advanced design that allows Peavey engineers to dramatically reduce weight while increasing output power, reliability and thermal efficiency. IPR2 Series amplifiers are designed with a resonant switch-mode power supply and a high-speed class D topology that yields the highest audio resolution and efficiency available. This revolutionary amplifier offers the sonic superiority and unsurpassed reliability for which Peavey is famous, in an extremely efficient and lightweight design. Advanced technology and extensive protection circuitry allow operation with greater efficiency into difficult loads and power conditions. The DDT™ (Distortion Detection Technique) circuitry ensures trouble-free operation into loads as low as 2 ohms. DDT protects drivers and ensures that sonic integrity is maintained, even in extreme overload conditions. The IPR2’s high-efficiency design allows the amplifier to operate at very low temperatures, and does not require massive heat sinks to cool.
As the name implies, the IPR2™ 2000 and 3000 DSP all include advanced digital signal processing. The DSP was designed to be incredibly effective, yet extremely easy to use. Using unique and revolutionary advanced bass enhancement processes, the IPR2 DSP amplifiers dramatically improve the perceived level of bass in any system, using a fraction of the power that would be required with any other power amplifier.
Features:
- Rated Power 2ch x 2 ohms: 1450 watts
- Combination XLR and 1/4″ inputs
- 2-pole twist lock output connector
- Light weight
- Individual signal patch-thru 1/4″ jacks on each channel
- Revolutionary IPR2 class D topology
- DSP-based Loudspeaker Management System
- Up to 120 ms of delay per channel
- 4 bands of parametric equalization per channel
- Adjustable Crossover
- Adjustable second through fourth-order high-pass filter each channel
- DDT™ protection
- MAXX Bass® bass enhancement circuitry
- Rated Power 2ch x 8 ohms: 500 watts
- Horn EQ each channel
- Rated Power 2ch x 4 ohms: 900 watts
- LED illuminated
- Weight Packed: 9.48 lb(4.3 kg)
- Width Packed: 10.5″(26.67 cm)
- Height Packed: 19″(48.26 cm)
- Depth Packed: 3.5″(8.89 cm)
Specifications
- Rated Power 2ch x 2 ohms: 1750 watts 20ms repetitive burst / 450 watts 1% THD both ch. driven @ 1kHz
- Rated Power 2ch x 4 ohms 950 watts 20ms repetitive burst / 900 watts 1% THD / 815 watts 0.2% THD, both ch. driven @ 1kHz
- Rated Power 2ch x 8 ohms 525 watts 20ms repetitive burst / 500 watts 1% THD / 430 watts 0.15% THD, both ch. driven @ 1kHz
- Minimum Load Impedance: 2 ohms
- Maximum RMS Voltage Swing: 70 volts
- Frequency Response: 20 Hz – 22 kHz; +/-.05dB @ 4 ohms
- 20Hz – 20kHz 2ch x 2 ohms <0.15% @ 1,200 watts 20 Hz to 3 kHz, decreasing to 1,100 watts @ 20 kHz, both ch. driven
- 20Hz – 20kHz 2ch x 4 ohms <0.15% @ 650 watts 20 Hz to 20 kHz, both ch. driven
- 20Hz – 20kHz 2ch x 8 ohms <0.15% @ 375 watts 20 Hz to 20 kHz, both ch. driven
- Input CMRR: > – 76 dB @ 1 kHz
- Voltage Gain: x 37.75 (+31.5 dB)
- Crossover: Adjustable High Pass and Low Pass filter per channel. Filter Types: 12dB/oct 2nd order, 18dB/oct 3rd
- order, 24dB/oct 4th order Butterworth and 24dB/oct 4th order Linkwitz -Riley
- Crosstalk: > -68 dB @ 1 kHz @ 400 watts power @ 8 ohms
- Hum and Noise: > -92 dB, “A” weighted referenced to rated power @ 4 ohms
- Slew Rate: > 12V/?s
- Damping Factor: (8 ohms) > 255:1 @ 20 Hz – 1 kHz @ 8 ohms
- Input Sensitivity: 1.54 volts +/- 3% for 1 kHz 4 ohm rated power, 1.47 volts +/- 3% for 1 kHz. 2 ohm rated power
- Input Impedance: 12 kilohms, balanced and 6 kilohms unbalanced
- Current Draw @ 1/8 in VA (watts): 960 (535) @ 2 ohms, 615 (315) @ 4 ohms, 400 (200) @ 8 ohms
- Current Draw @ 1/3 in VA (watts): 2065 (1360) @ 2 ohms, 1215 (735) @ 4 ohms, 740 (420) @ 8 ohms
- Idle Consumption: 160VA, 75 watts
- Cooling: Temperature dependent variable speed 80 mm DC fan
- Controls: 2 front panel detented attenuators, push-button navigation encoder to navigate through the menus on theLCD screen for input mode, parametric EQ, crossover HPF, LPF. and more.
- Indicator LEDs: Five LED indicators per channel: Active, Signal, DDT, Temperature and DC
- Protection: Thermal, DC, subsonic, incorrect loads, under and over voltage
- Connectors: Dual combination 1/4″ XLR, dual male XLR input thru, two twist lock connectors
- Construction: 0.062″ aluminum
- Dimensions: 3.5″x19″x 10.5″ behind front panel + 0.6″ for handle
- Net Weight: 5.62 kg (12.4 lb.*)
- Gross Weight: 6.80 kg (15.0 lb.)
