ออดิโออินเตอร์เฟส Zoom UAC232 USB-C Audio Interface
ออดิโออินเตอร์เฟส Zoom UAC232, 2 x 2 USB C 2.0 Audio Interface 2 XLR/TRS Combo Mic/Line/Instrument Inputs, MIDI I/O, 192 kHz sample rate, Headphone Output, 2 Line Outputs, and Software, Can use with Windows, Mac, and even iOS devices
ไม่รวมภาษีมูลค่าเพิ่ม…
฿9,200.00 ฿7,360.00
Description

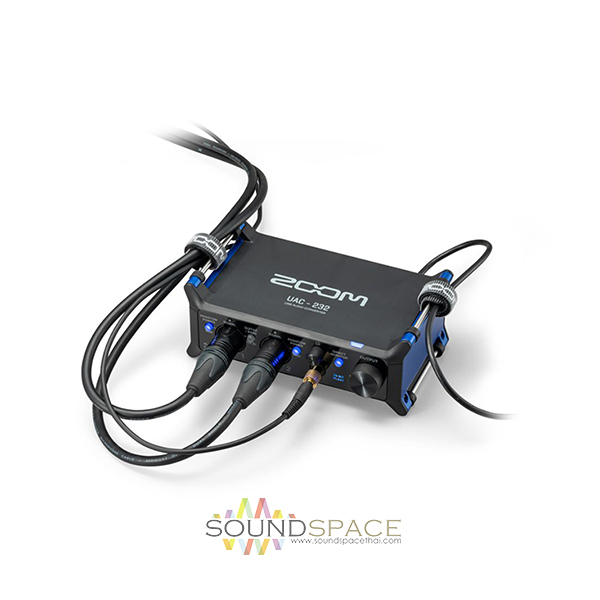

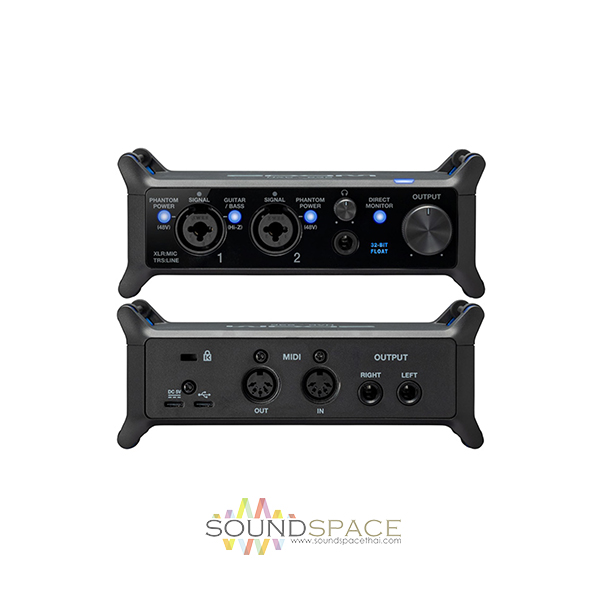

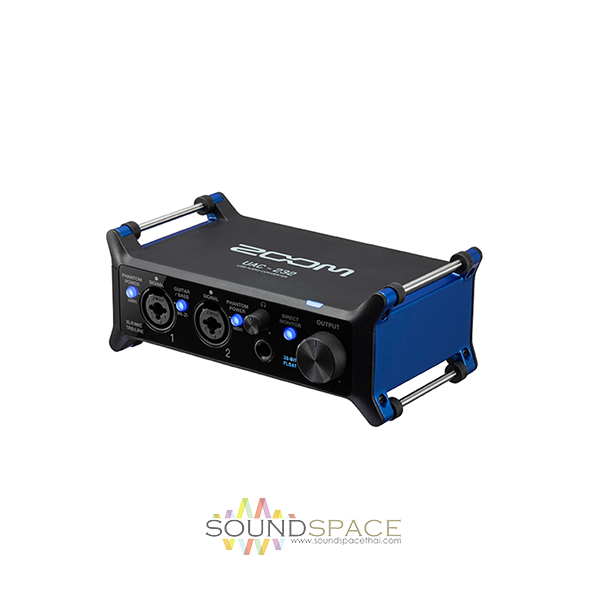

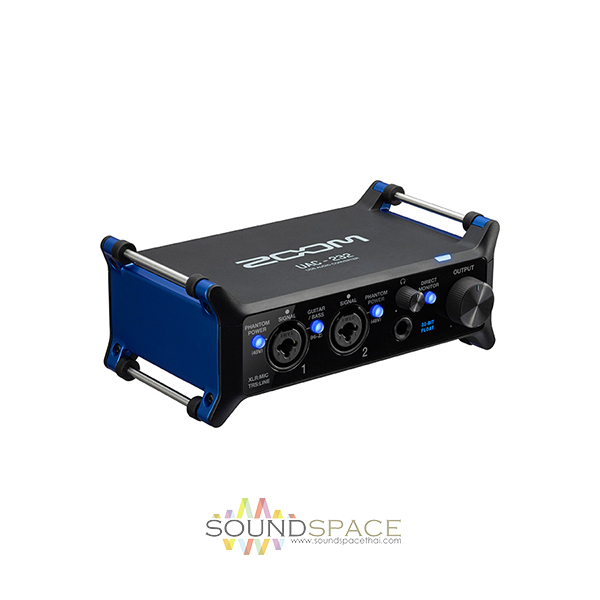

Zoom UAC232 USB-C Audio Interface
ออดิโออินเตอร์เฟส Zoom UAC232, 2 x 2 USB C 2.0 Audio Interface 2 XLR/TRS Combo Mic/Line/Instrument Inputs, MIDI I/O, 192 kHz sample rate, Headphone Output, 2 Line Outputs, and Software, Can use with Windows, Mac, and even iOS devices
The ZOOM UAC-232 USB Audio Converter is the first dedicated 32-bit float audio interface, designed for musicians who demand more quality in their productions. The UAC-232 Audio Converter can be placed anywhere. Set it up vertically, horizontally or mount it to a mic stand with the included flat cable straps. The MIDI in/out allows you to connect to external MIDI gear such as drum machines, synths and keyboards.
Features:
- Dual AD circuitry with 32-bit float recording technology
- High-quality mic preamps, same as the Zoom F6
- 2x XLR/TRS combo inputs
- Headphone output and 2x TRS main outputs
- High-power headphone outputs (100 mW)
- Records up to 192 kHz sample rate
- Compatible with Windows, Mac, and iOS devices (Android not supported)
- Zoom Mix Control software mixer
- MUSIC and STREAMING modes available via the software to optimize I/O
- Loopback available via the software
- Direct Monitor switch for latency-free recording
- Vertical or horizontal use
- MIDI IN/OUT for connection to external MIDI equipment
- Bus-powered operation (separate power required for Lightenting-enabled iOS devices)
Specifications
| Form Factor | Desktop |
| Display | None |
| Channels of I/O | 2 Inputs / 2 Outputs |
| Built-In DSP | None |
| Maximum Sampling Rate | 192 kHz / 32-Bit Float |
| Number of Microphone Preamps | 2 Preamps |
| Built-In Microphone | None |
| Expansion Slots | None |
| Analog Audio I/O | 2 x Combo XLR-1/4″ TRS Balanced Mic/Line/Hi-Z Input 2 x 1/4″ TRS Balanced Line Output 1 x 1/8″ / 3.5 mm TRS Headphone Output |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | None |
| Host Connection / USB | USB-C |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 1 x USB-C (Power Input) |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Frequency Response | 20 Hz to 60 kHz /-1 (at 192 kHz) 20 Hz to 40 kHz /-1 (at 96 kHz) 20 Hz to 20 kHz /-1 (at 44.1 kHz) |
| Maximum Input Level | XLR Mic/Line: +6 dBu 1/4″ Mic/Line: +24 dBu 1/4″ Hi-Z: +11.5 dBu |
| Maximum Output Level | 1/4″ Line: +18 dBu |
| Headphone Output Power | 1/4″: 100 mW per Channel into 32 Ohms |
| Impedance | XLR Mic/Line Inputs: 2.7 Kilohms 1/4″ Mic/Line Inputs: 4 Kilohms 1/4″ Hi-Z Inputs: 1 Megohm 1/4″ Line Outputs: 100 Ohms 1/8″ / 3.5 mm Headphone Outputs: 12 Ohms |
| EIN | < 127 dBu |
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Bit Depths | 32-Bit Float / 24-Bit |
| Memory Card Slot | None |
| OS Compatibility | macOS Windows iOS *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Included Software | None |
| Mobile App Compatible | No *As of February, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile Device Compatibility | iPhone (with Lightning Connector) iPad (with Lightning Connector) |
| Internet Connection | Required for Software/Driver Download |
| Power Requirements | USB Bus Power |
| Current Consumption | 293 mA |
| Power Consumption | 5 W (Maximum) |
| Anti-Theft Features | Kensington Security Slot |
| Dimensions | 6.5 x 4.2 x 2.6″ / 164 x 105.5 x 65 mm |
| Weight | 12.5 oz / 355.0 g |
