ลำโพงไลน์อาเรย์ NEXO STM B112 Bass Module Line Array Speaker 12″

Name: ลำโพงไลน์อาเรย์ NEXO STM B112 Bass Module Line Array Speaker 12"
Price: 308400.00 THB
Availability: InStock

ลำโพงซับเบสไลน์อาเรย์แบบไม่มีกำลังขยาย NEXO STM B112 Bass Module Line Array Speaker ขนาดดอกลำโพง12″ 3000 watt

ราคาพิเศษ….Contact Us…..0863114142

฿308,400.00

สอบถามและสั่งซื้อสินค้า

Category: ลำโพงแบบแขวนไลน์อาเรย์ (Line Array) Tag: NEXO

Description

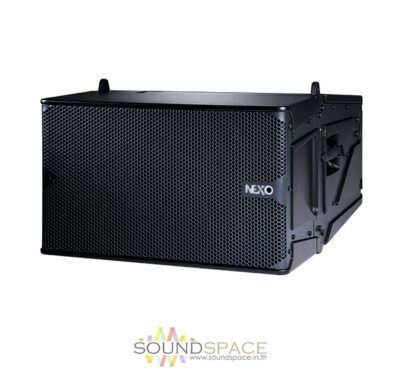

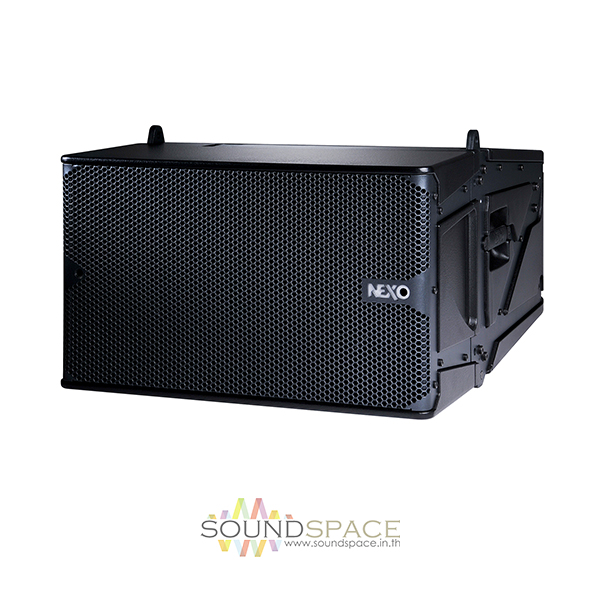

NEXO STM B112 Bass Module Line Array Speaker

ลำโพงซับเบสไลน์อาเรย์ NEXO STM B112 แบบไม่มีกำลังขยาย ขนาดดอกลำโพง 12″ 3000 watt

STM B112 Injection-moulded bass cabinet featuring a Neodymium high excursion 3000W 12″ bass driver with 4″ voice coil. It has the same format – dimensions, weight, gravitycentre – as the M46. The hybrid horn-loaded design maximizes the efficiency of the driver, delivering 6dB more than a standard front-loaded driver in this frequency range.

Features:

1 x 3000W +/- 3cm excursion 12 inch LF Driver
141dB peak SPL
Frequency response: 63Hz-200Hz
H350mm/W575mm/D715mm
55Kg/121lb

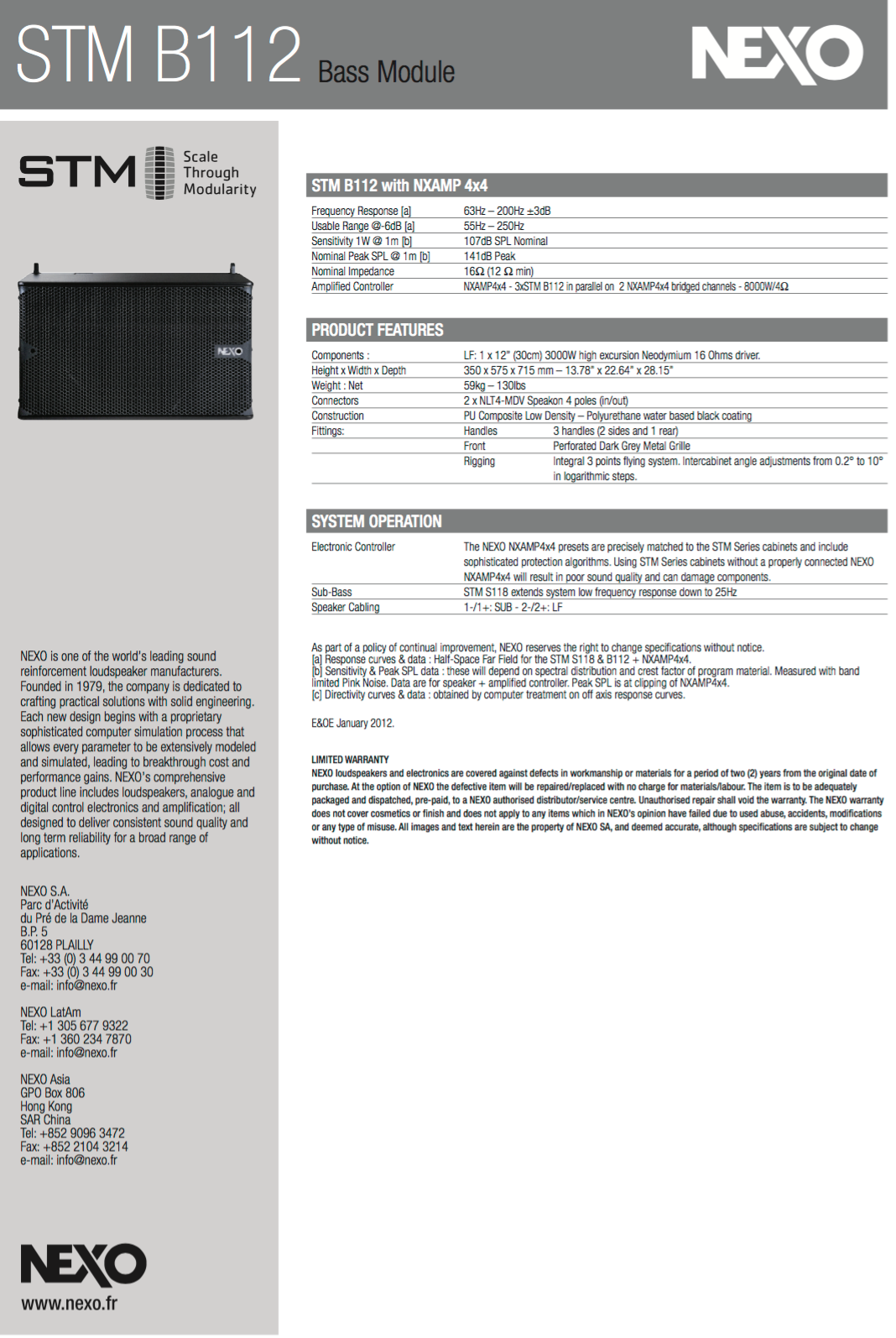

Specifications

NEXO STM B112 with NXAMP 4X4
Frequency Response [a]	63Hz — 200Hz ±3dB
Usable Range@-6dB [a]	55Hz — 250Hz
Sensitivity 1W@ 1m[b]	107dB SPL Nominal
Nominal Peak SPL@ 1m[b]	141dB Peak
Nominal Impedance	16Ω (12 Ω min)
Amplified Controller	NXAMP4x4 – 3x NEXO STM B112 in parallel on 2 NXAMP4x4 bridged channels- 8000W/4Ω
Product Features
Components:	LF: 1 x 12″ (30cm) 3000W high excursion Neodymium 16 Ohms driver.
Height x Width x Depth	350 x 575 x 715 mm — 13.78″ x 22.64″ x 28.15″
Weight : Net	59kg — 130lbs

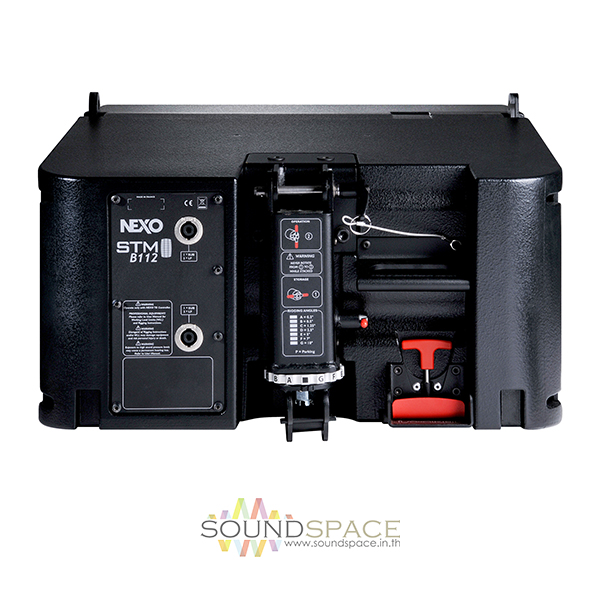

Connectors	2 x NLT4-MDV Speakon 4 poles (in/out)
Construction	PU Composite Low Density — Polyurethane water based black coating
Fittings:	Handles	3 handles (2 sides and 1 rear)
	Front	Perforated Dark Grey Metal Grille

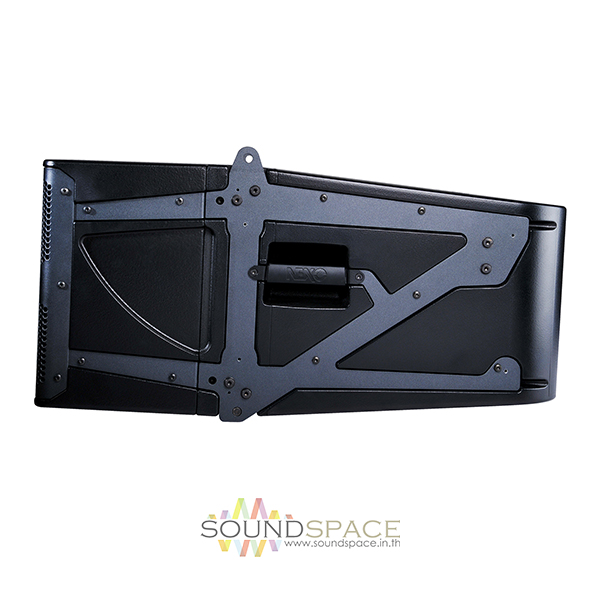

	Rigging	Integral 3 points flying system. Intercabinet angle adjustments from 0.2° to 10° in logarithmic steps.
System Operation
Electronic Controller	The NEXO NXAMP4x4 presets are precisely matched to the NEXO STM Series cabinets and include sophisticated protection algorithms. Using NEXO STM Series cabinets without a properly connected NEXO NXAMP4x4 will result in poor sound quality and can damage components.
Sub-Bass	NEXO STM S118 extends system low frequency response down to 25Hz
Speaker Cabling	1-/1+: SUB – 2-/2+: LF
