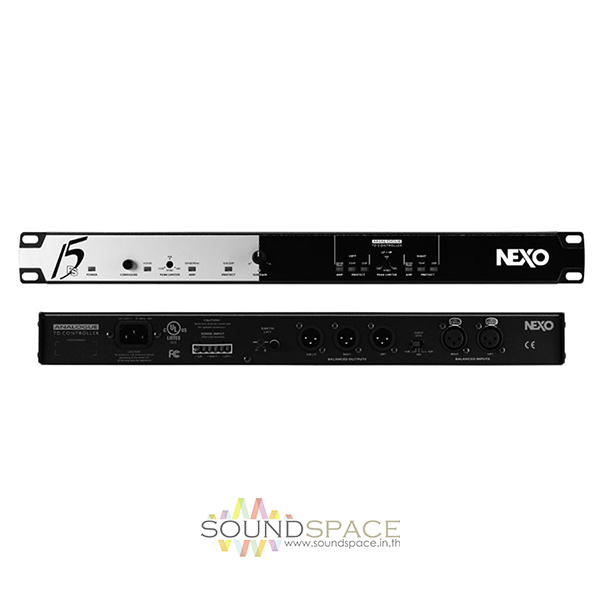

คอนโทรลเลอร์ NEXO PS15UTD V3 ST
อุปกรณ์ปรับแต่งสัญญาณเสียงและควบคุมการทำงานเวอร์ชั่น3 สำหรับลำโพง NEXO PS15 และ NEXO RS15 Sub เพื่อให้การทำงานของลำโพงเป็นไปอย่างเต็มประสิทธิภาพ
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..
฿37,600.00
Description
อุปกรณ์ปรับแต่งสัญญาณเสียงและควบคุมการทำงานเวอร์ชั่น3 สำหรับลำโพง NEXO PS15 และ NEXO RS15 Sub
The PS15 TDController-R2is an advanced analogue processor that allows the PS15-R2 Loudspeaker and optional RS15 Subwoofer to achieve exceptional performance from such compact packages. PS15 TDController-R2 provides crossover, sensed amplifier control and system equalisation optimised for the PS15-R2 and RS15.
The PS15 TDController-R2 also features user-selectable passive or active (bi-amp) operation of the PS15-R2 Loudspeaker. One PS15 TDController-R2 has two inputs and three outputs, including summed sub out, minimising installation cost and complexity.
Like all NEXO processors, the PS15 TDController-R2 provides precision dynamic, voice coil temperature and diaphragm displacement protection through the use of selective Voltage Controlled Equalisers (VCEQs), reducing levels only at frequencies when and where necessary.
Features:
- Precision circuits engineered for the PS15-R2/RS15 systems permit increased sound pressure and operational reliability.
- Servo controlled VCEQs provide precise dynamic control without spectral imbalance.
- Two inputs and three outputs enable a single PS15 TDController-R2 to manage multiple PS15-R2 and RS15 products.
- User configurable for passive or active (bi-amp) operation of the PS15-R2 Loudspeaker.
- Comprehensive indicators and controls.
PS15 TDController-R2 Product Features
- Audio Inputs Two L&R Audio inputs. Electronically balanced, 50KOhm. Two XLR-3F connectors.
- Sense Inputs
- Three Amplifier Sense Inputs, 180 kOhm. 6 Pole Removable Strip Terminal.
- Passive Mode, PS15-R2 L&R, RS15. Active Mode, PS15-2 LF and HF, RS15.
- Audio Outputs
- Three audio outputs. Electronically balanced, 50 Ohm. Three XLR-3M connectors.
- Passive Mode, two PS15-R2 L&R, one Mono (L+R) RS15. Active Mode, one PS15-R2 LF, one PS15-R2 HF, one Mono (L+R) RS15.
- Controls Front panel: Overlap/Crossover switch, Two Bass EQ trimmers (+/- 3 dB), Three Peak Limiter Adjust trimmers. Three Gain trimmers (+/- 6dB). Back panel: Gain switch (back panel), 3 positions for Amps with Gain : -6 / 0 / +6 dB. Internal: Active/Passive Mode switch. Three Protection trimmers.
- Indicators Speaker Protect LEDs. Amp Sense & Peak LEDs. Active Mode LED. Power ON LED.
- Dimensions 1U 19″ Rack. 190mm (7.5″) Depth.
- Weight 2.9kg (6.6 lbs) net.
Specifications
System Specifications PS15 TDController-R2
- Input Level +28dBm max into 600 Ohms.
- Output Level +22dBm.
- Noise -88 dBm (22 Hz – 22 kHz, Unweighted).
- THD+N < 0.03% Typ. 0.05 Max for +18dBm Output.
- Power Supply 110/220 Volts (External Rear Panel Switch), 50/60Hz. Earth-Lift (back panel).
System Operation
- Applicable Products The PS15 TDController-R2 is precisely matched to the PS15-R2 & RS15 cabinets and includes sophisticated protection systems. Use of either product without a properly-connected Controller will result in poor sound quality and may damage the components.
- Sub-bass Active two-way operation of the PS15 Loudspeaker in passive mode or three-way operation in active mode with the RS15 Subwoofer is included in thePS15TDController-R2
