ตู้ลำโพงซับเบส NEXO MSUB18 Arrayable Subwoofer 18″
ตู้ลำโพงซับเบสไลน์อาเรย์ NEXO MSUB18 for the GEO M12 line array element, ขนาดดอกลำโพง 18 นิ้ว 4 Ohms very long excursion Neodymium driver, ตอบสนองความถี่ 32 Hz to 120 Hz @-6 dB, Recommended Power 2000 Watts, Connectors 4 x NL4, 4 poles connectors (1+/1- MSUB18 / 2+/2- Through)
ราคาพิเศษ….Contact Us…..0863114142
฿249,600.00
Description

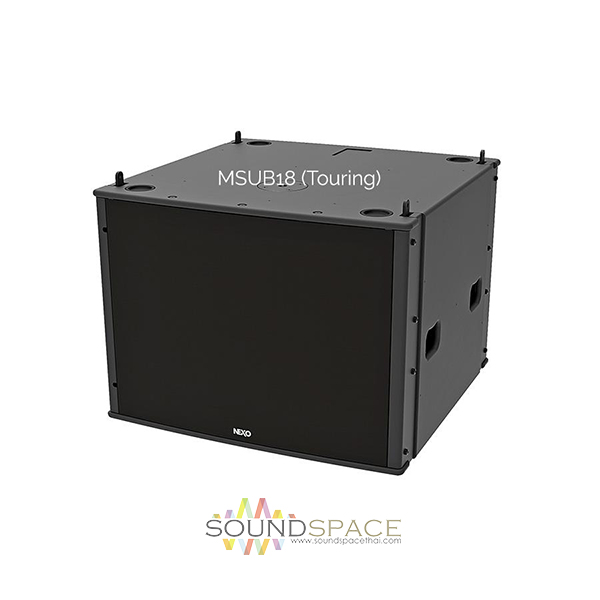

NEXO MSUB18 Arrayable Subwoofer 18″
ตู้ลำโพงซับเบสไลน์อาเรย์ NEXO MSUB18 for the GEO M12 line array element, ขนาดดอกลำโพง 18 นิ้ว 4 Ohms very long excursion Neodymium driver, ตอบสนองความถี่ 32 Hz to 120 Hz @-6 dB, Recommended Power 2000 Watts, Connectors 4 x NL4, 4 poles connectors (1+/1- MSUB18 / 2+/2- Through)
The MSUB18 is the ideal companion for the GEO M12 line array element, sharing same aesthetic design and arrayable in the same flown or stacked cluster.
Measuring 701mm wide x 525mm high x 704mm deep and weighing 55 kg, the MSUB18-I is the same width as the GEO M12 main cabinet, and 141% higher. Cabinets are constructed from Baltic birch ply with large composite bumpers on the corners, and feature integral rigging.

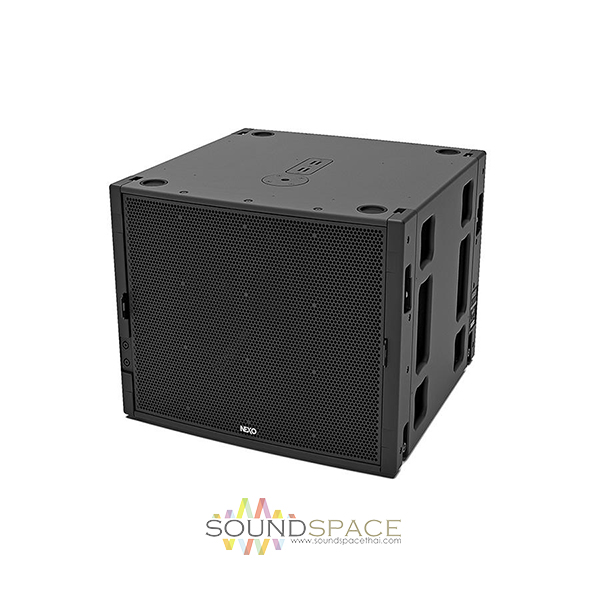

Employing a single 18″ diameter voice coil Neodymium driver in a high-efficiency band pass cabinet design with a quadratic shaped profiled port, the MSUB18 can be deployed in Omni or Cardioid modes and is available in black, white or custom RAL colours. The MSUB18-I is the installation version.
Features:
- Very high power, arrayable sub that can be stacked or flown, with or without its companion main element the GEO M12
- Integrated rigging hardware with no loose parts
- Front and rear connectivity for cardioid (front to back) implementation
- Comprehensive range of versatile, multifunction accessories for deploying the MSUB18 in a wide variety of applications
- Available in black, white and custom RAL colours
Specifications
| MSUB18 with NEXO TDController Setup | |
| Frequency Response @-6 dB | 32 Hz to 120 Hz |
| Sensitivity 1W@1m | 107 dB SPL Nominal |
| Peak SPL@1m | 139 dB |
| Available Crossover Frequencies | 29-65, 29-75, 29-85, 29-95, 29-120 Hz |
| Nominal Impedance | 4 Ohms |
| Recommended Power | 2000 Watts |
| Product Features | |
| Component | 1 x 18″ 4 Ohms very long excursion Neodymium driver |
| Height x Width x Depth | 525mm x 701mm x 704mm (20.6″ x 27.6″ x 27.7″) |
| Weight: Net | 55 kg / 122 lbs |
| Connectors (Touring version) | 4 x NL4, 4 poles connectors (1+/1- MSUB18 / 2+/2- Through) |
| Connectors (Install version) | 2 x Cable gland with 2 cores cables |
| Construction | Baltic Birch Plywood & textured black or white coating |
| Fittings | 8 x Side handles |
| Front Finish (Touring version) | Steel front grill + back mesh |
| Front Finish (Install version) | Acoustic fabric fitted front grill |
| Operating temperature range | 0°C – 40 °C |
| Storage temperature range | -20 °C – 60 °C |
| System Operation | |
| Recommended powering solution | NXAMP4x4 Powered TDcontroller: up to 2 x MSUB18 per channel |
| Optional powering solution | NXAMP4x1mk2 Powered TDcontroller (Bridged): 1 x MSUB18 per channel NXAMP4x2mk2 Powered TDcontroller: 1 x MSUB18 per channel |
