ลำโพงซับเบส NEXO MSUB15 Arrayable Subwoofer 15″
ลำโพงซับวูฟเฟอร์ NEXO MSUB15 Arrayable Sub, bass-pass มีขนาดดอกลำโพง 15 นิ้ว 8 Ohms very long excursion Neodymium driver, Compact arrayable sub that can be stacked or flown, with or without the GEO M10, ตอบสนองความถี่ 45 Hz to 150 Hz
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿199,200.00
Description

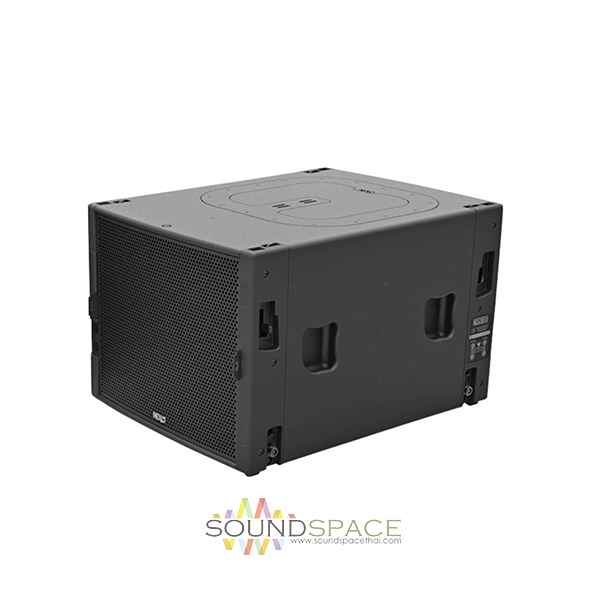

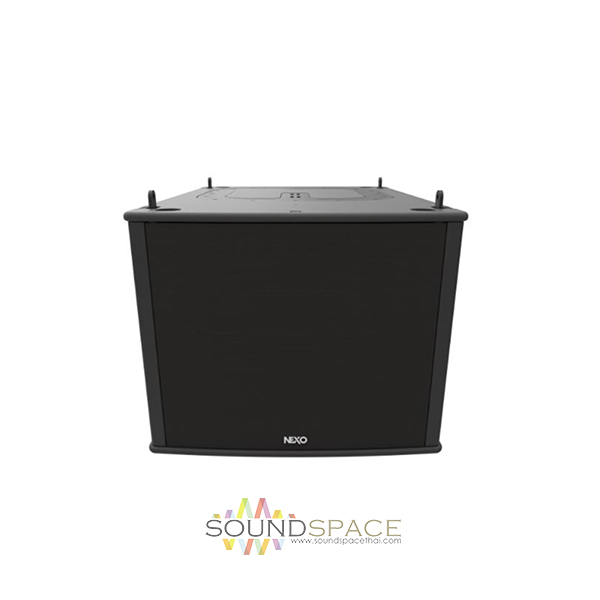

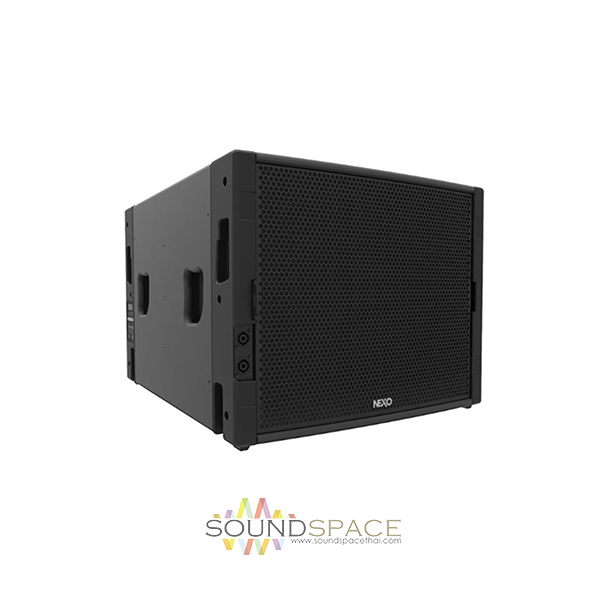

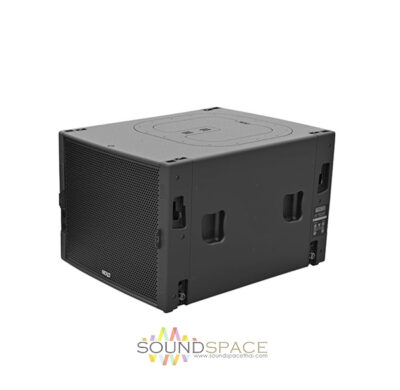

NEXO MSUB15 Arrayable Sub Band Pass 15″
ลำโพงซับวูฟเฟอร์ NEXO MSUB15 Arrayable Sub, bass-pass มีขนาดดอกลำโพง 15 นิ้ว 8 Ohms very long excursion Neodymium driver, Compact arrayable sub that can be stacked or flown, with or without the GEO M10, ตอบสนองความถี่ 45 Hz to 150 Hz

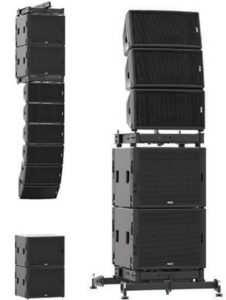

The MSUB15 is the ideal companion for the GEO M10 line array element, sharing same aesthetic design and arrayable in the same flown or stacked cluster.

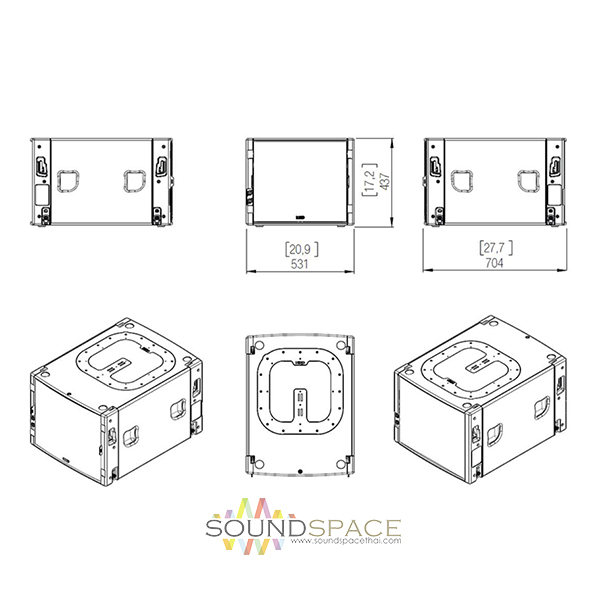

Measuring 437mm wide x 531mm high x 704mm deep and weighing 40Kg, the MSUB15 is the same width as the GEO M10 main cabinet, and 50% higher. Cabinets are constructed from Baltic birch ply with large composite bumpers on the corners, and feature integral rigging.
Employing a single 15″ diameter / 3″ voice coil Neodymium driver in a high-efficiency band pass cabinet design with a quadratic shaped profiled port, the MSUB15 can be deployed in Omni or Cardioid modes and is available in black, white or custom RAL colours.
The touring version features a steel front grille and Speakon connectors (front and back).
Features:
- Compact arrayable sub that can be stacked or flown, with or without its companion main element the GEO M10
- Integrated rigging hardware with no loose parts
- Front and rear connectivity for cardioid (front to back) implementation
- Comprehensive range of versatile, multifunction accessories for deploying the MSUB15 in a wide variety of applications
- Touring version with steel grille and Speakon connectors
Specifications
| Frequency Response @-6 dB | 40 Hz to 120 Hz |
| Sensitivity 1W@1m | 101 dB SPL Nominal |
| Peak SPL@1m | 136 dB |
| Available Crossover Frequencies | 40-65, 40-75, 40-85, 40-95, 40-120 Hz |
| Nominal Impedance | 8 Ohms |
| Recommended Power | 900 Watts |
| Component | 1 x 15” 8 Ohms long excursion Neodymium driver |
| Height x Width x Depth | 437mm x 531mm x 704mm (17.2” x 20.9” x 27.7”) |
| Weight: Net | 40 kg / 89 lbs |
| Connectors | 4 x NL4, 4 poles connectors (1+/1- MSUB15 / 2+/2- Through) |
| Construction | Baltic Birch Plywood & textured black or white coating |
| Fittings | 4 x Side handles |
| Front Finish | Steel front grill + back mesh |
| Operating temperature range | 0°C – 40 °C |
| Storage temperature range | -20 °C – 60 °C |
| System Operation | |
| Recommended powering solution | NXAMP4x2mk2 Powered TDcontroller: up to 2 x MSUB15 per channel |
| Optional powering solution | NXAMP4x1 Powered TDcontroller (Bridged): up to 2 x MSUB15 per channel |
| NXAMP4x4 Powered TDcontroller: up to 3 x MSUB15 per channel | |
| DTD TDcontroller + DTDAMP4x1.3 Power amplifier: 1 x MSUB15 per channel |
