ลำโพงซับเบส NEXO LS400 Sub 12″

Name: ลำโพงซับเบส NEXO LS400 Sub 12"
Price: 56200.00 THB
Availability: InStock

ลำโพงซับเบส 12นิ้วรองรับกำลังขับของเครื่องขยายเสียงได้ 300-700 วัตต์ 8โอหม์ (High power system (131dB Peak SPL @ 1m)

ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม

฿56,200.00

สอบถามและสั่งซื้อสินค้า

Category: ลำโพงแบบไม่มีกำลังขยายในตัว (Passive) Tag: NEXO

Description

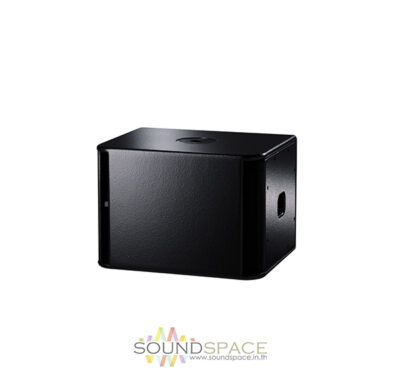

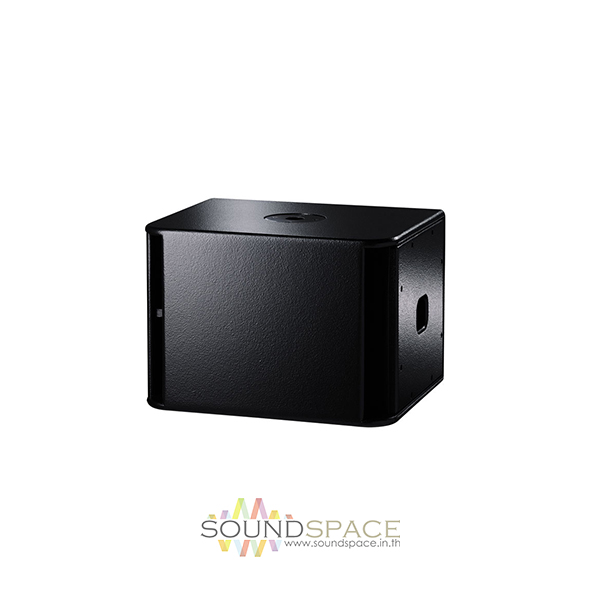

NEXO LS400 Sub Bass

ลำโพงซับเบสขนาด 12นิ้ว รองรับกำลังขับของเครื่องขยายเสียงได้ 300-700 วัตต์ 4โอหม์

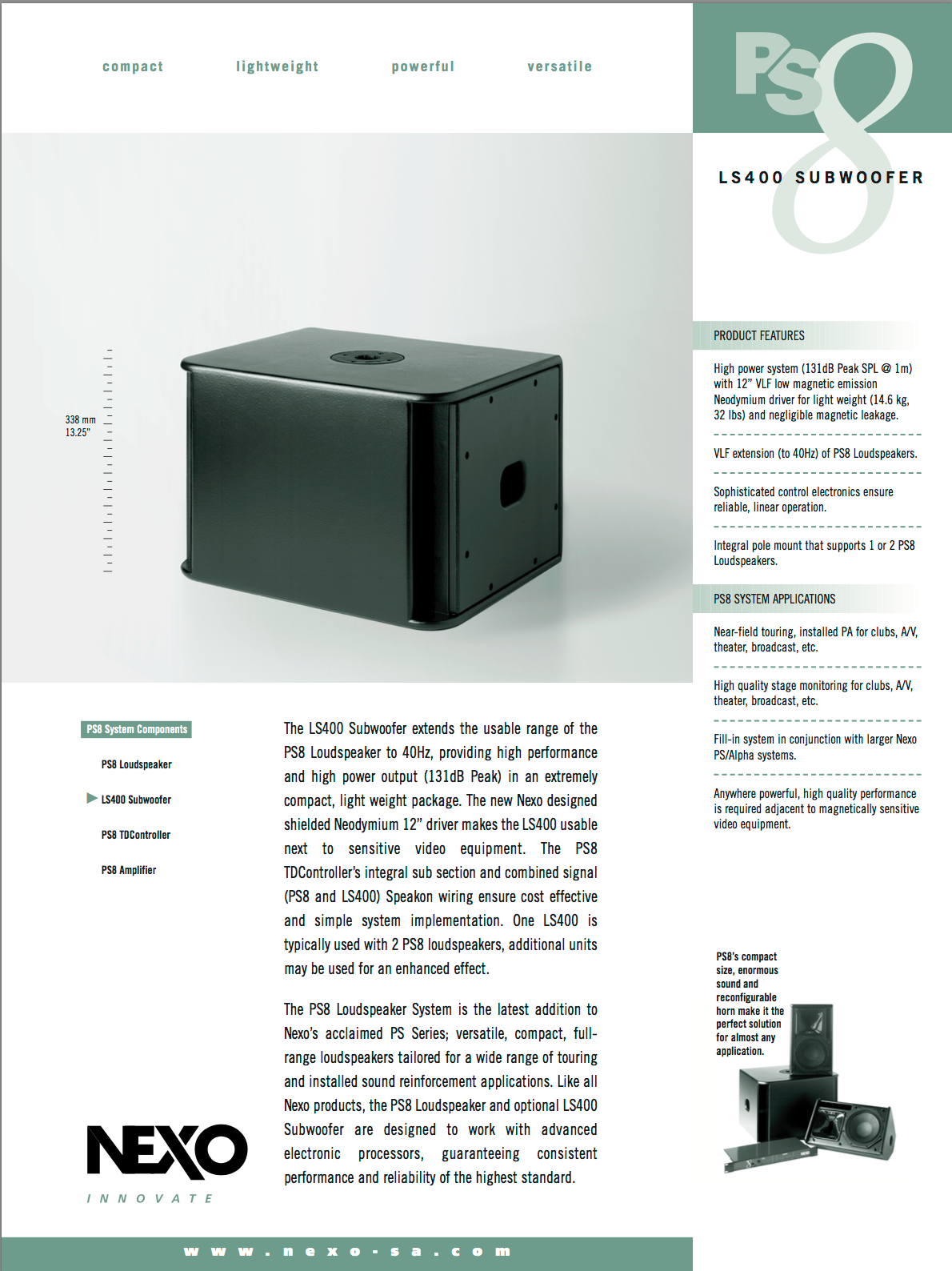

Nexo LS400 Sub Bass, The LS400 Sub-Bass extends the usable range of the PS8 Loudspeaker to 40Hz, providing high performance and high power output (131dB Peak) in an extremely compact, light weight package. The NEXO-designed shielded 12in Neodymium driver allows the LS400 to be used in close proximity to magnetically sensitive video equipment. One LS400 is typically used with two PS8 loudspeakers, additional units may be used for an enhanced LF impact. The PS8 TDController’s integral sub section and combined signal (PS8 and LS400) Speakon wiring ensure cost-effective and simple system implementation.

Features:

High power system (131dB Peak SPL @ 1m) with 12” VLF low magnetic emission Neodymium driver for light weight (14.6 kg, 32 lbs) and negligible magnetic leakage.
VLF extension (to 40Hz) of PS8 Loudspeakers.
Sophisticated control electronics ensure reliable, linear operation.
Integral pole mount that supports 1 or 2 PS8 Loudspeakers.

System Applications

Near-field touring, installed PA for clubs, A/V, theatre, broadcast, etc.
High quality stage monitoring for clubs, A/V, theatre, broadcast, etc.
Fill-in system in conjunction with larger Nexo PS/Alpha systems.
Anywhere powerful, high quality performance is required adjacent to magnetically sensitive video equipment.

LS400 Product Features

Components: VLF 1 x 12” ( 30cm ) Shielded Neodymium long excursion 6 Ohm driver.
Height x Width x Depth 338 x 500 x 406 mm (13 1/4’’x 19 5/8’’x 16”).
Weight 19.5 kg (43 lbs) net.
Connectors 2 x NL4MP SPEAKON 4 pole.
Construction Baltic Birch Ply & textured, polyurethane black coating.
Fittings: Handles 2, integral to cabinet.
Stand fittings Internal Stand Fitting on Top (35mm, 1”3/8) accepts a mast supporting 1 or 2 PS8s.

Specifications

System Specifications LS400 with PS8 TDcontroller

Frequency Response [a] 43 Hz – 120 Hz ±3dB.
Usable Range @-6dB [a] 40 Hz – 140 Hz.
Sensitivity 1W @ 1m [b] 99 dB SPL Nominal.
Nominal Peak SPL @ 1m [b] 128 to 131 dB Peak (300 to 700 W RMS Amp.)
Crossover Frequencies 120 Hz Active through PS8TD.
Nominal Impedance 6 Ohms.
Recommended Amplifiers 300 to 700 Watts into 4 Ohms.

System Operation

Electronic Controller The LS400 Subwoofer must be used with a Nexo Controller (PS8 TD analogue, NX241 digital or PS8AMP integrated power amplifier). Use without a properly connected Controller will result in poor sound quality and may damage the components.
Sub-bass The LS400 Subwoofer provides optional VLF extension for PS8 Loudspeakers. Active two-way operation with the PS8 is included in the PS8TD, NX241 or PS8AMP. One LS400 matches 2 x PS8, additional LS400 may be used for enhanced effect.
Speaker Cables The PS8 is wired 2- & 2+ on Speakon connectors, LS400 on 1- & 1+. Loop through Speakons are present on both products. Single identical cables can thus be used to loop through combinations of up to 2 x PS8 & 1 x LS400 in no particular order.
