ตู้ลำโพงซับเบส NEXO L15 Compact Horn Loaded Subwoofer 15″
ตู้ลำโพงลำโพงกลางแจ้งซับวูฟเฟอร์ NEXO L15 Compact Horn Loaded Subwoofer เป็นลำโพงซับวูฟเฟอร์รุ่นล่าสุดจาก NEXO (2019) มีขนาดดอกลำโพง 15 นิ้ว Long excursion Neodymium driver, Dedicated partner sub for P12 with matching footprint, 139dB peak SPL, ตอบสนองความถี่ 40 Hz – 120 Hz, Standard fitting M20
ราคาพิเศษ….Contact Us…..0863114142
฿136,800.00
Description

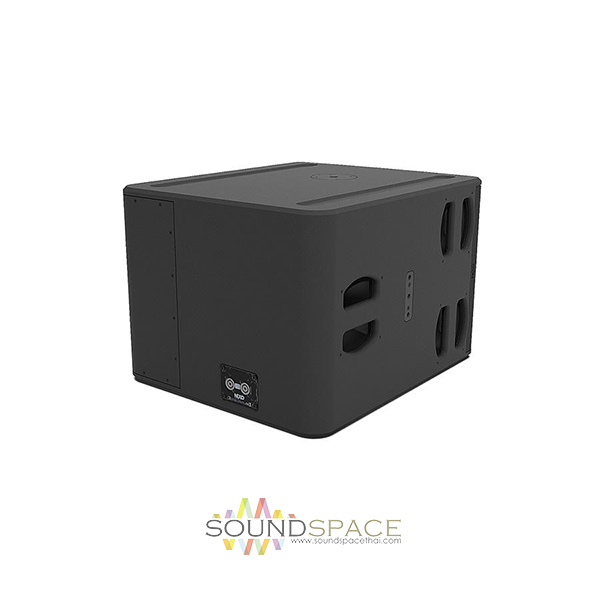

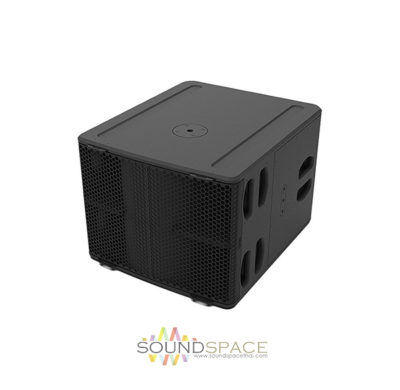

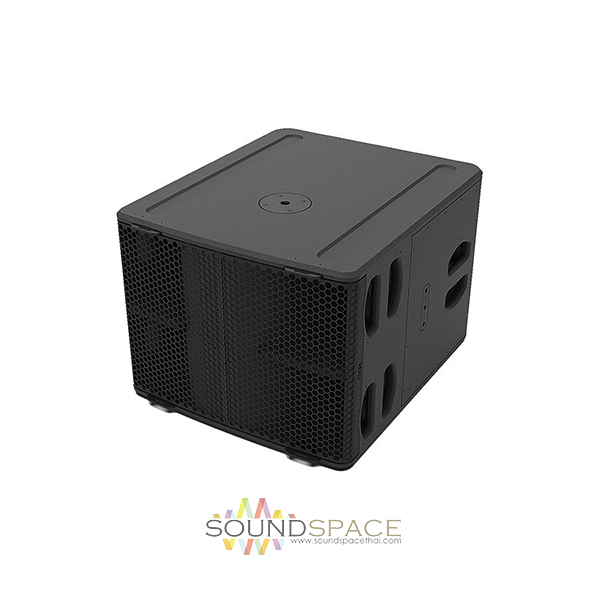

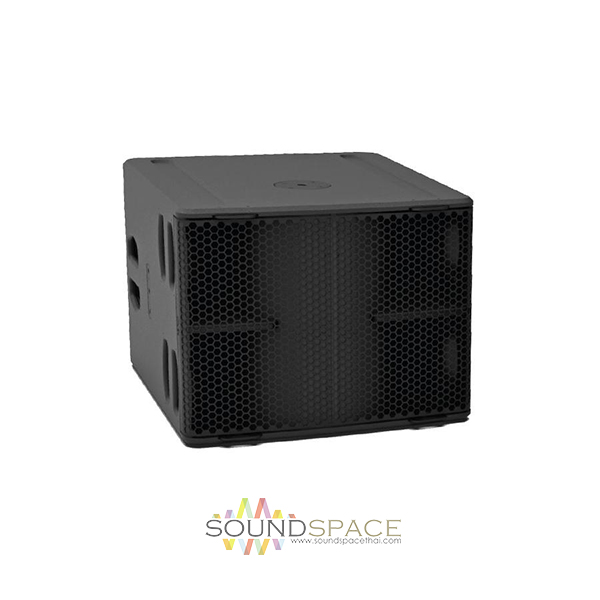

NEXO L15 Compact Horn Loaded Subwoofer 15″
ตู้ลำโพงลำโพงกลางแจ้งซับวูฟเฟอร์ NEXO L15 Compact Horn Loaded Subwoofer เป็นลำโพงซับวูฟเฟอร์รุ่นล่าสุดจาก NEXO (2019) มีขนาดดอกลำโพง 15 นิ้ว Long excursion Neodymium driver, Dedicated partner sub for P12 with matching footprint, 139dB peak SPL, ตอบสนองความถี่ 40 Hz – 120 Hz, Standard fitting M20
Measuring 650mm wide x 430mm high x 550mm deep and weighing 35Kg, the L15 sub employs a 15″ long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting.

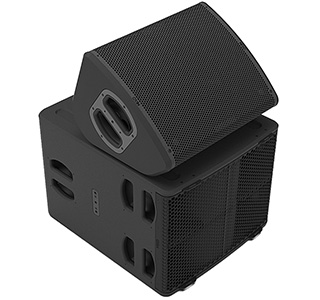

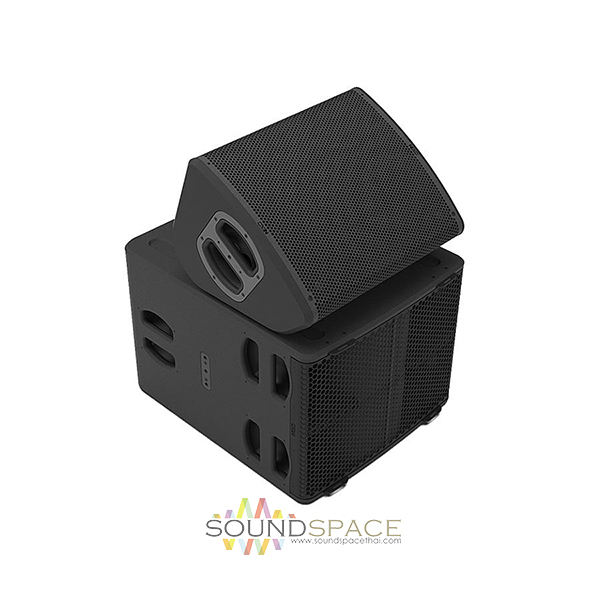

With a frequency range of 40Hz-120Hz, and 139dB Peak SPL, The L15 is specially designed in a footprint to match the P12, making it a perfect partner in flown applications, and for use as a drum fill.
Features:
- Dedicated partner sub for P12 with matching footprint
- Extends LF performance to 40Hz
- 139dB peak SPL
- 1 x 15″ long-excusion Neodymium driver
- Can be deployed in standard and cardioid modes
- Threaded inserts on the back and on both sides for connection of mounting accessories
- Standard fitting M20
Specifications
| L15 WITH NEXO PROCESSING | |
| Frequency Response @-6 dB | 40 Hz to 120 Hz |
| Peak SPL@1m | 139 dB Peak |
| Operating Voltage | 55 Vrms (150 Vpeak) |
| Crossover Frequency | 85 Hz or 120 Hz |
| Nominal Impedance | 4 |
| PRODUCT FEATURES | |
| Components | 1 x Neodymium 15” 4 Ohms long excursion |
| Connectors | 2 x NL4, 4 poles connectors. |
| Rigging points | 1 x universal accessory fit on each side + 1 x M20 thread for Pole Stand on top |
| Material | Custom made bent plywood of baltic birch and poplar |
| Finish | Black or White structural paint |
| Front Finish | Steel front grille |
| Height x Width x Depth | 439mm x 550mm x 650 mm (17.3” x 21.7” x 25.6”) |
| Weight: Net | 35 kg (77 lbs) |
| Operating temperature range | 0°C – 40 °C (32° F – 104° F) |
| Storage temperature range | -20 °C – 60 °C (-4 ° F – 140° F) |
| SYSTEM OPERATION | |
| Recommended powering solution | NXAMP4x2mk2 Powered TDcontroller: up to 2 x L15 per channel |
| Optional powering solution | NXAMP4x1mk2 Powered TDcontroller (Bridged): up to 1 x L15 per channel |
| NXAMP4x4 Powered TDcontroller: up to 2 x L15 per channel |
