ลำโพงไลน์อาเรย์ NEXO GEO S830 Line Array Speaker 8″

Description

NEXO GEO S830 Versatile Line Array Speaker

NEXO GEO S830 ลำโพงไลน์อาเรย์ แบบไม่มีกำลังขยาย ดอกลำโพง LF ขนาด 8″ Driver HF ขนาด 1″ Driver มุมกระจายเสียง 30 องศา

The compact GEO S830 is a high-output array module intended for horizontal tangent arrays or as a downfill element in curved (tangent) vertical arrays to establish consistent SPL in all coverage areas. The HRW™ allows the 30° S830 and 5° S805 to be coherently arrayed together.

GEO S Series loudspeakers ship with 120° dispersion (in the non-coupling plane) Configurable Directivity Devices (CDD), but are field-changeable to 80° CDDs. To maximize downfill coverage, CDFs are used on GEO S830s for the bottom two rows of curved vertical arrays.

Features:

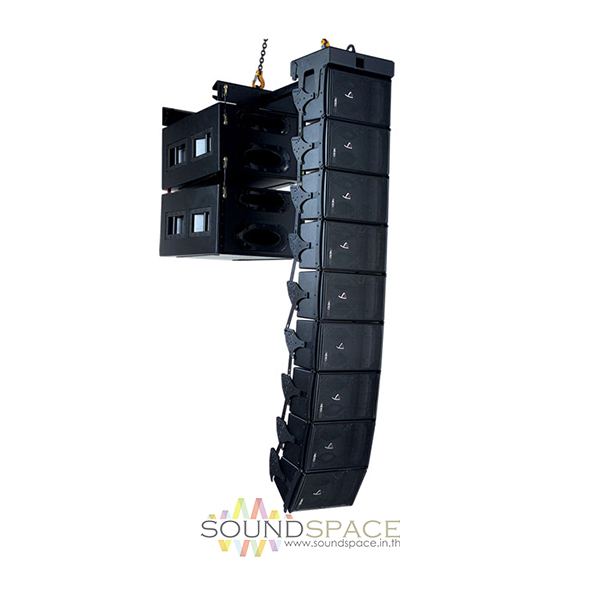

• S830 can be deployed in horizontal or vertical tangent arrays.
• High power, long excursion neodymium 8” woofer delivers full range output from compact enclosures.
• Light weight (13kg per module including precision array assembly system) construction allows GEO tangent arrays to be hung almost anywhere.
• When vertically arrayed, multiple Hyperboloid Reflective Wavesources project tangent wavefronts from a common virtual source for coherent output.
• Configurable Directivity Device allows dispersion in the non-coupling plane to be changed from 80° to 120° through bolt-on flanges that alter the flare of the diffraction slot’s exit.
• Directivity Phase Device combines enhanced line source coupling in vertical arrays with extended low frequency response.
• NS-1 array design software predicts vertical tangent array performance for a wide range of venues.
