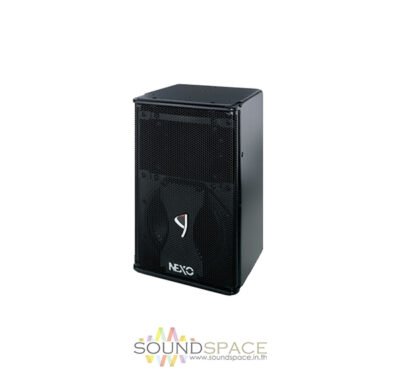

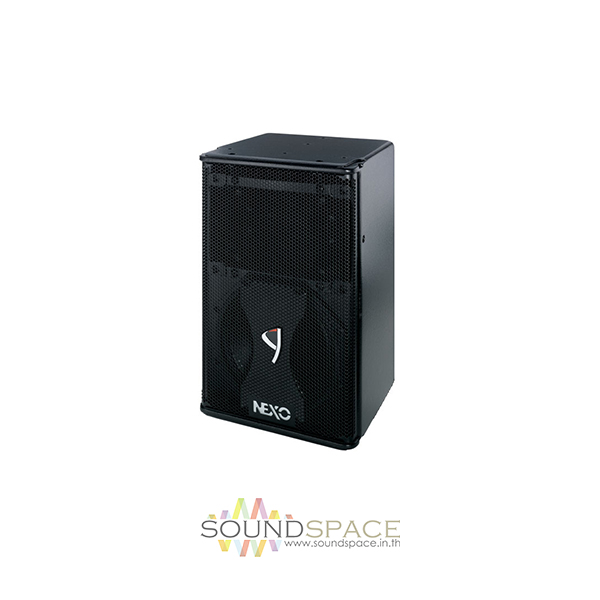

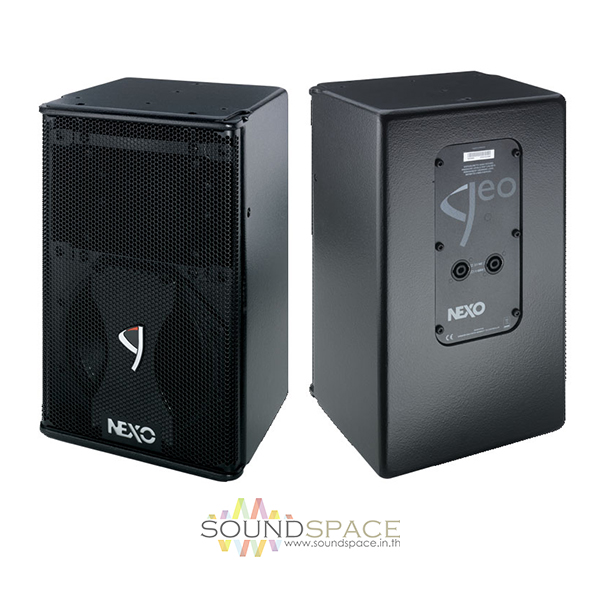

ลำโพงไลน์อาเรย์ NEXO GEO S805 Line Array Speaker 8″

Description

ลำโพงกลางแจ้งไลน์อาเรย์ NEXO GEO S805 Versatile Line Array Speaker

NEXO GEO S805 ลำโพงไลน์อาเรย์ แบบไม่มีกำลังขยายดอกลำโพง LF ขนาด 8″ Driver HF ขนาด 1″ Driver มุมกระจายเสียง 5 องศา

The GEO S805 is compact, high-output array module designed for use in vertical tangent arrays. The Hyperboloid Reflective Wavesource allows multiple GEO S8 loudspeakers to radiate tangent wavefronts with coherent output.

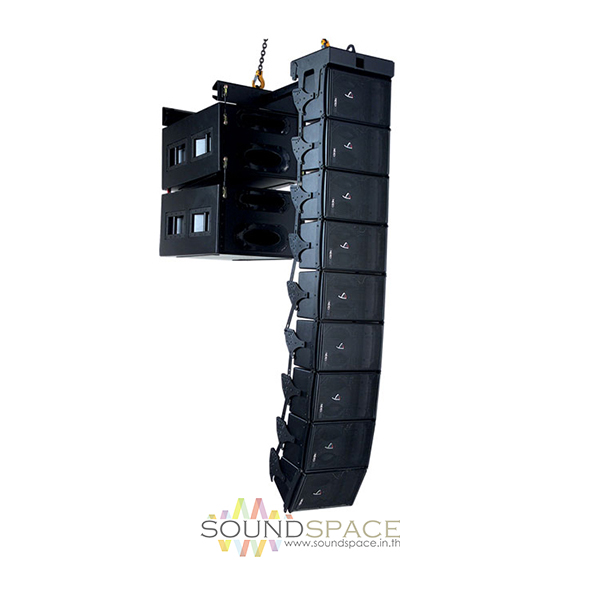

The 5° wavesource is optimized for the construction of curved vertical arrays that deliver equal power to equal coverage areas for consistent SPL from front to rear of the audience area.

Advanced DSP algorithms, applied by the NXAMP/NX242 TDcontroller, precisely integrate GEO S systems with CD12 SubBass cabinets, so they may be flown together, without causing any interference between the GEO S and CD12 wavefronts.

Features:

• S805 is optimized for vertical tangent arrays.
• M delivers full range output from compact enclosures.
• Light weight (13kg per module including Array Assembly System) allows GEO tangent arrays to be hung almost anywhere.
• When vertically arrayed, multiple Hyperboloid Reflective Wavesources project tangent wavefronts from a common virtual source for coherent output.
• Configurable Directivity Device allows dispersion in the non-coupling plane to be changed from 80° to 120° through bolt-on flanges that alter the flare of the diffraction slot’s exit.
• Directivity Phase Device combines enhanced line source coupling in vertical arrays with extended low frequency response.
• NS-1 array design software predicts vertical tangent array performance for a wide range of venues.
