ตู้ลำโพง NEXO ePS10 Passive Point Source Loudspeaker 10″
ลำโพงแบบไม่มีกำลังขยายในตัว Point Source สำหรับงานติดตั้ง NEXO EPS10 เป็นลำโพงแบบ 2 way Passive ขนาดดอกลำโพง 10 นิ้ว 8 Ohms LF driver long excursion driver เสียงแหลม 1.4 นิ้ว HF driver on an Asymmetrical Dispersion, Nominal Impedance 8 Ω, Recommended Power 500 to 800 Watts / 8 Ohms
ราคาพิเศษ….Contact Us…..0863114142
฿68,400.00
Description
NEXO ePS10 2 Way Passive Point Source Loudspeaker 10″
ลำโพงแบบไม่มีกำลังขยายในตัว Point Source สำหรับงานติดตั้ง NEXO EPS10 เป็นลำโพงแบบ 2 way Passive ขนาดดอกลำโพง 10 นิ้ว 8 Ohms LF driver long excursion driver เสียงแหลม 1.4 นิ้ว HF driver on an Asymmetrical Dispersion, Nominal Impedance 8 Ω, Recommended Power 500 to 800 Watts / 8 Ohms

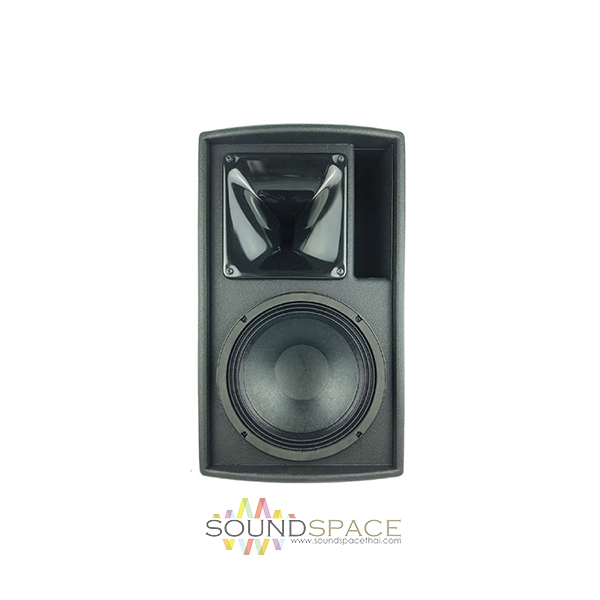

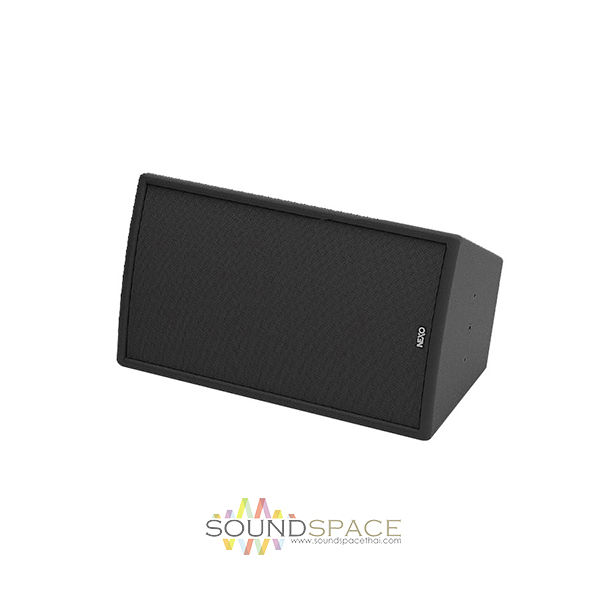

Measuring 531mm high x 316mm wide x 285mm deep and weighing 14.8Kg, the ePS10 combines a high excursion 10-inch LF driver with a 1.4- inch voice coil HF driver in a trapezoidal cabinet constructed in a bass-reflex design from 15mm baltic birch plywood.
Achieving a peak SPL of 130dB with a frequency range of 70Hz to 20kHz, the ePS10 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.
Features:
- High power (130 dB peak) point source loudspeaker for fixed installation
- Lightweight (14.8.kg / 32.6lbs) design
- Robust 15 mm Birch plywood enclosure
- NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
- IP54 protection level
- Comprehensive range of accessories for deploying in a wide variety of fixed installation applications
- Black finish with custom RAL colours available
Specifications
| Frequency Response @-6 dB | 70 Hz to 20 kHz |
| Sensitivity 1W@1m | 101 dB SPL Nominal |
| Peak SPL@1m | 130 dB |
| Vertical Dispersion | +25°/-30° |
| Horizontal Dispersion | 50° to 100° Asymmetrical |
| Crossover Frequency | 70 Hz, 120 Hz |
| Nominal Impedance | 8 Ω |
| Recommended Power | 500 to 800 Watts / 8 Ohms |
Product Features
| Number of ways | 2 ways passive |
| LF Component | 10″ 8 Ohms long excursion neodymium driver |
| HF Component | 1.4″ diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion (“PS”) horn |

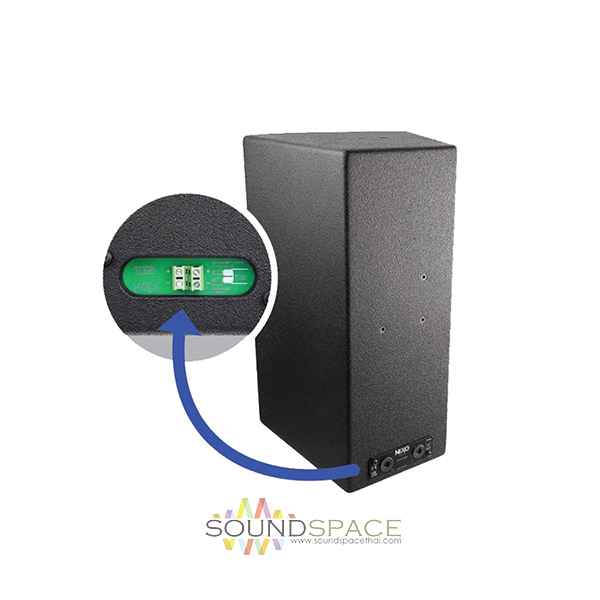

| Connectors | 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks (+/- poles) |
| Compatible cables section | Cables from 0.75 mm² to 3.3 mm² (AWG 18 to 12) copper section |
| Compatible cables outside diameter | Cable with maximum outside diameter of 9 mm |

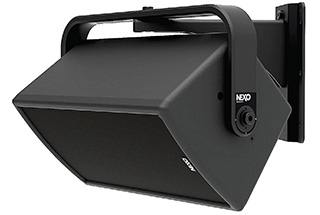

| Rigging points | 3x M6 – 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot) |
| Material | 15 mm thick birch plywood body and galvanized grille |
| Finish | Black structural paint (RAL9005 or Custom RAL upon request) |
| Front Finish | UV & Fire resistant acoustic fabric |
| Height x Width x Depth | 531mm x 316mm x 285mm (20.9″ x 12.4″ x 11.2″) |
| Weight: Net | 14.8 kg (32.6 lbs) |
| Operating temperature range | 0°C – 40 °C (32° F – 104° F) |
| Storage temperature range | -20 °C – 60 °C (-4 ° F – 140° F) |
| IP Rating | IP54 |
| System Operation | |
| Recommended powering solution | NXAMP4x1mk2 Powered TDcontroller: 1 x ePS10 per channel |
| Optional powering solution | DTDcontroller + DTDAMP4x1.3 : Up to 2 x ePS10 per channel |
| NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS10 per channel | |
| NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS10 per channel |
Downloads
ดาวน์โหลด Data Sheet NEXO EPS10
