คอนโทรลเลอร์ NEXO DTD-IN Digital TD Controller

อุปกรณ์ปรับแต่งสัญญาณเสียงและควบคุมการทำงานสำหรับลำโพง NEXO รุ่น PS, LS และ ID Series สำหรับงานติดตั้งแบบถาวรที่ไม่ค่อยเคลื่อนย้ายมาพร้อม DANTE

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿42,800.00

NEXO DTD-I-n Digital TD Controller (Standard Installation Version/DANTE)

Connectable with amplifiers from every other manufacturer, the DTD Digital TD Controller for PS Series cabinets and LS Subs makes the world’s favorite compact, high output system even more accessible than it already is. Now it is possible to pick exactly the right size and magnitude of amplification, making PS/LS configurations easily accessible in a wide array of applications from small mobile systems to more much more complex multi cabinet installs. With advanced speaker control processing taken from the NEXO NXAMP, the DTD Digital TD Controller additionally provides dramatic improvements in audio performance over prior analog TD Controllers.

The DTD brings together premium speaker processing and a flexible range of inputs such as stereo balanced analog inputs, an AES input and a USB port enabling direct driverless audio playback from laptops, etc. An optional Dante™ input is available as well. DTD utilizes cutting-edge audio processing to produce high precision EQ and Linear Acoustic Phase algorithms, phase compatible with all PS and LS cabinets, in addition other speakers in the NEXO catalog. Premium AD and DA converters and 64-bit/96kHz processing ensure an analog in to analog out dynamic range larger than 112dB, with distortion maintained under 0.001%.

*The Nexo DTD-IN Features 2 x Dante Channels, whereas the Nexo DTD-IU does not.

Features:

Compatible with amplifiers of all sizes and scales

Compatible with amplifiers from other manufacturers

Drastic audio improvements over prior analog devices

In-depth analog and digital connectivity and Dante™

Plug and play operation w/ automatic amplifier sensing technology

Touring and install versions conveniently available

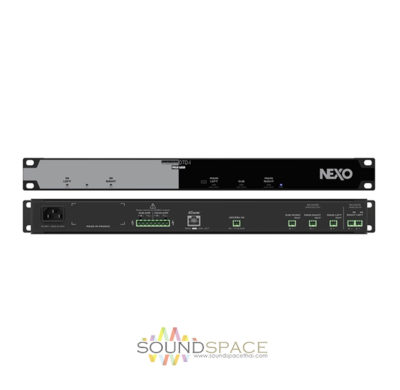

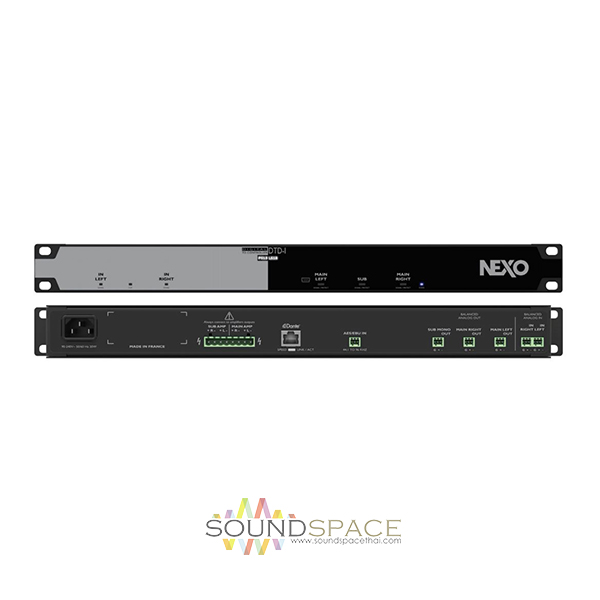

Touring vs. Install Versions

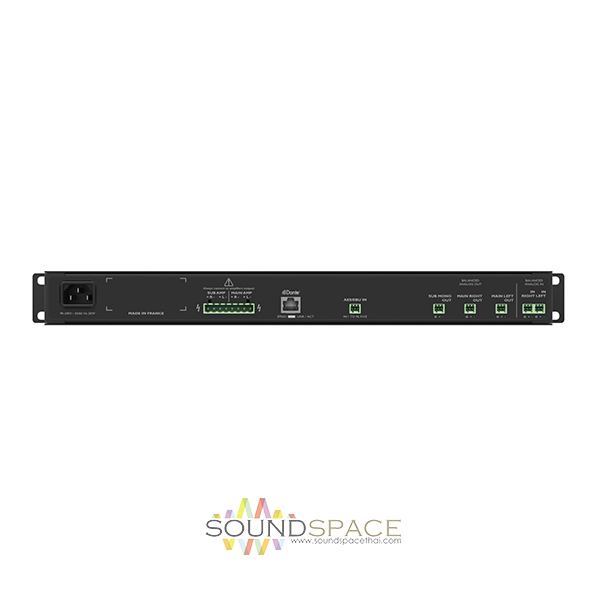

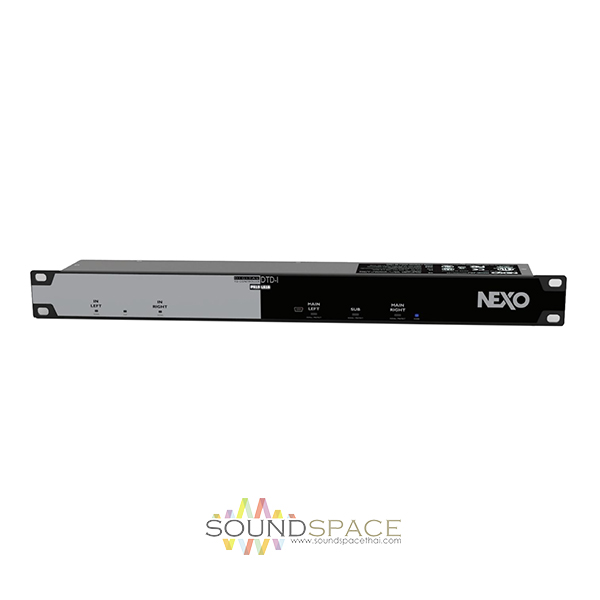

Both Touring (DTD-T) and Install (DTD-I) versions are housed in a rugged, low-depth rack-mounting case and feature a universal power supply. The touring version has analog input and output connectors (XLR and Speakons) on the front panel, removing the cost need for an additional patch panel. The front panel display shows the current PS/LS set up, and features controls for Sub/Main output gain and a switch to select Wideband, Crossover or User mode. Set up from a Mac/PC connected via USB, User Mode offers additional control over Speaker/Sub model selection, Crossover Frequency selection, Delay on Main and Sub outputs, Gain for each output, Input/Output Meters including protections, User EQ (2 x 8 bands parametric), Limiters and Settings Lock with Password. The install version has all the connectors except mini-USB located on the back panel. There is no hardware control on the unit; all parameters are set in User Mode from a Mac/PC connected via USB, allowing settings to be locked to prevent accidental changes.

Easily accessible firmware updates for Nexo DTD-IN

The USB port can also be used to update firmware, add new functions or download new NEXO speaker presets.

Specifications

Nexo DTD-IN Electrical Specs:

Sampling Frequency and Resolution: 48/96 KHz, 64 bits internal processing precision
Signla Delay: Less than 1 ms (analog in to out) on flat setup, compatible with NXAMP latency
Frequency Response: 20 Hz to 20 KHz, +/-0.5 dB (mains out) 20 Hz to 2 KHz +/-0.5 dB (sub out)
Total Harmonic Distortion: Less than 0.001% (mains out) less than 0.02% (sub out)
Dynamic Range: 112 dB (unweighted, mains out) 107 dB (unweighted, sub out)
Crossover/ Channel Separation: -100 dB (1kHz)
Indicators: Input Signal/Peak (green/red), amp in signal (green), speaker protect (yellow)
Display: White Backlight graphical OLED display 96 x 16 pixels

Nexo DTD-IN Physical Specs:
