ตู้ลำโพง NEXO Alpha+ M210 Hybrid Source Loudspeaker System

Name: ตู้ลำโพง NEXO Alpha+ M210 Hybrid Source Loudspeaker System
Price: 516000.00 THB
Availability: InStock

ลำโพงแบบไม่มีกำลังขยายในตัว NEXO M210 เป็นลำโพง 2-Way Hybrid Horn Loaded System รุ่นในตระกูล ในตระกูล Alpha+ Series ในตู้ประกอบด้วยดอกลำโพงขนาด 10 นิ้ว 2 ดอก เสียงแหลมขนาด 3 นิ้ว +4 ดอก, Extremely Powerful (148 dB peak), Nominal Impedance 4 Ohms + 4 Ohms

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม

฿516,000.00

สอบถามและสั่งซื้อสินค้า

Category: ลำโพงแบบไม่มีกำลังขยายในตัว (Passive) Tag: NEXO

Description

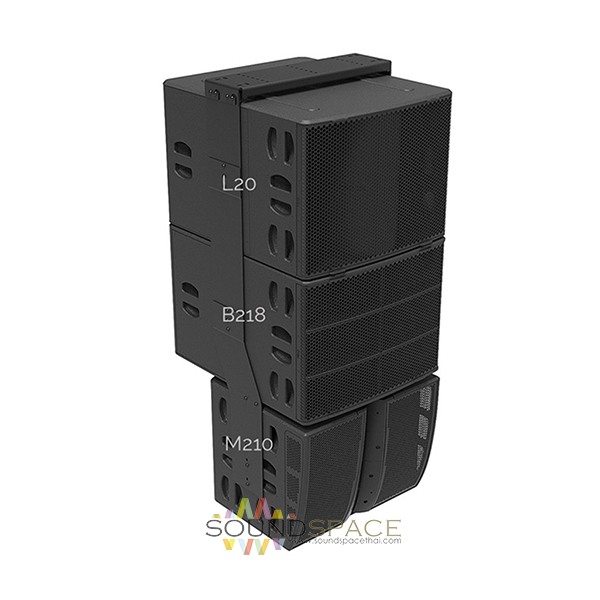

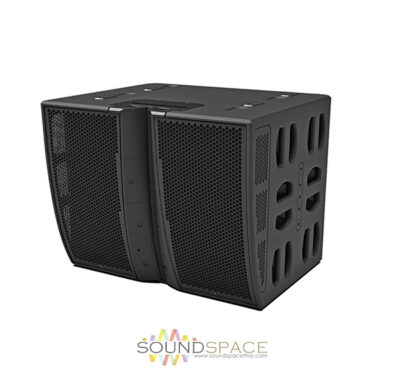

NEXO Alpha+ M210 Hybrid Source Loudspeaker System 2×10″ MF / 4×3″ HF

The two-way M210 active Main module uses two lightweight pure MF neodymium 10″ drivers horn loaded, and coaxially mounted with four 3″ neodymium compression drivers mounted on an innovative articulated waveguide.

Using a custom made 15 mm plywood cabinet of Birch and Poplar with a rounded shape to prevent damage in the corners, the M210 weighs in at 53kg/117lbs and achieves a peak SPL of 148dB. The mid-frequency horn ensures maximum radiating surface and high efficiency.

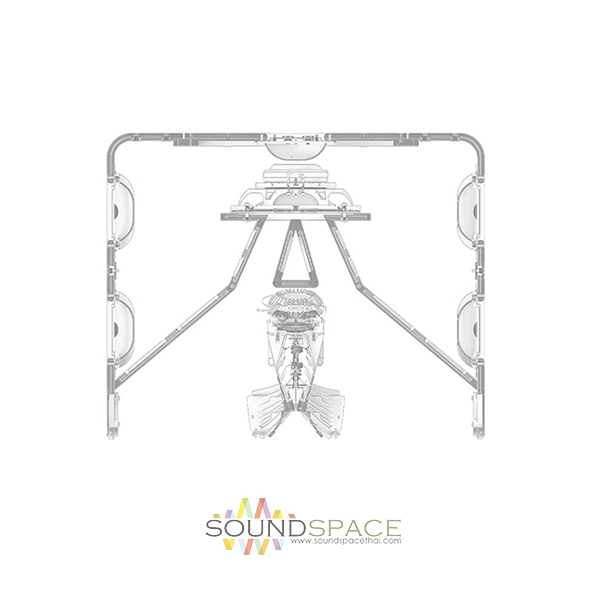

A unique articulated HF waveguide is used to adjust vertical directivity. Continuously changing horizontal directivity from 120° (bottom) to 60° (top) is tuneable with optional magnetic flanges.

Features:

Extremely Powerful (148 dB peak) main module of the Alpha+ system
Lightweight (53 kg / 117 lbs) design using custom made 15 mm bent plywood of Birch and Poplar
Unique articulated HF waveguide to adjust vertical directivity
Continuously changing horizontal directivity from 120° (bottom) to 60° (top), tunable with optional magnetic flanges
Mid-frequency horn ensure maximum radiating surface and high efficiency

Specifications

With NEXO Processing
Frequency Response @-6 dB	160 Hz to 20 kHz
Peak SPL@1m	148 dB Peak
Operating Voltage	45 Vrms (150 Vpeak)
Crossover Frequency	500 Hz to 1500 Hz overlap, optimized with proprietary software NEXO Polar Combiner
Vertical Dispersion	Adjustable (-20°/+20° Default mode) or (-20°/+0° Long Throw mode)
Horizontal Dispersion	120° (Bottom) to 60° (Top) continuously
Nominal Impedance	4 Ohms + 4 Ohms

MF Components	2 x High-efficiency pure medium neodymium 10” 8 Ohms
HF Components	4 x Neodymium 3“ voice coil 1.4” throat driver on a BEA/FEA optimized Wavesource
Connectors	2 x NL4, 4 poles connectors
Rigging points	2 x universal accessory fit (on each side) + 1 x universal accessory fit on the back
Material	Custom made bent plywood of baltic birch and poplar
Finish	Black or White structural paint
Front Finish	Magnelis® Steel front grille
Height x Width x Depth	598mm x 755mm x 632 mm (23.5” x 29.7” x 24.9”)
Weight: Net	53 kg (117 lbs)
Operating temperature range	0°C – 40 °C (32° F – 104° F)
Storage temperature range	-20 °C – 60 °C (-4 ° F – 140° F)

System Operation
Recommended powering solution	NXAMP4x4mk2 Powered TDcontroller: Up to 2 x M210 (MF/HF) on 2 x channels
Optional powering solution	NXAMP4x1mk2 Powered TDcontroller (Bridged): Up to 2 x M210 (MF/HF) per amplifier
	NXAMP4x2mk2 Powered TDcontroller: 1 x M210 (MF/HF) on 2 x channels
