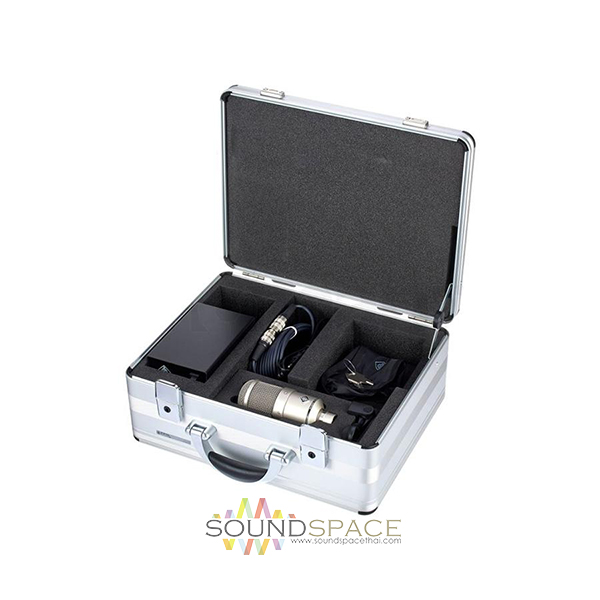

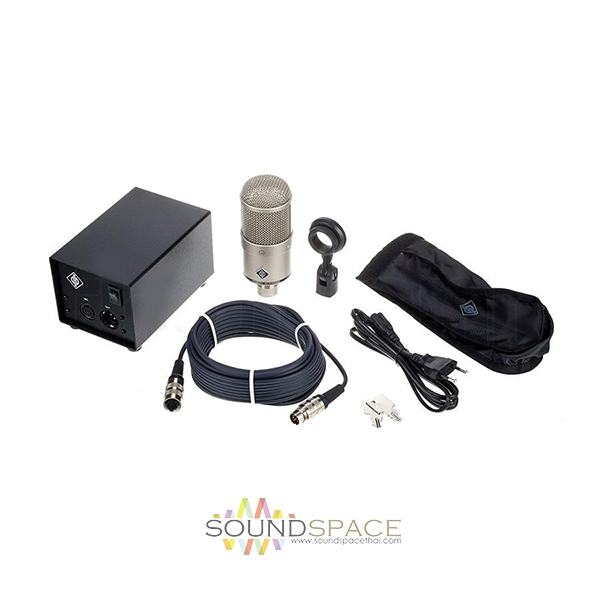

ไมค์อัดเสียง Neumann M147 เป็นไมโครโฟนแบบ vacuum tube large diaphragm condenser microphone, รูปแบบการรับเสียง Cardioid Polar Pattern, ตอบสนองความถี่ 20 Hz to 20 kHz, Impedance 50 Ohms, Classic sound with unmatched presence, มาพร้อม power supply N149
ไม่รวมภาษีมูลค่าเพิ่ม…..
฿186,000.00 ฿120,900.00
ไมค์อัดเสียง Neumann M147 เป็นไมโครโฟนแบบ vacuum tube large diaphragm condenser microphone, รูปแบบการรับเสียง Cardioid Polar Pattern, ตอบสนองความถี่ 20 Hz to 20 kHz, Impedance 50 Ohms, Classic sound with unmatched presence, มาพร้อม power supply N149

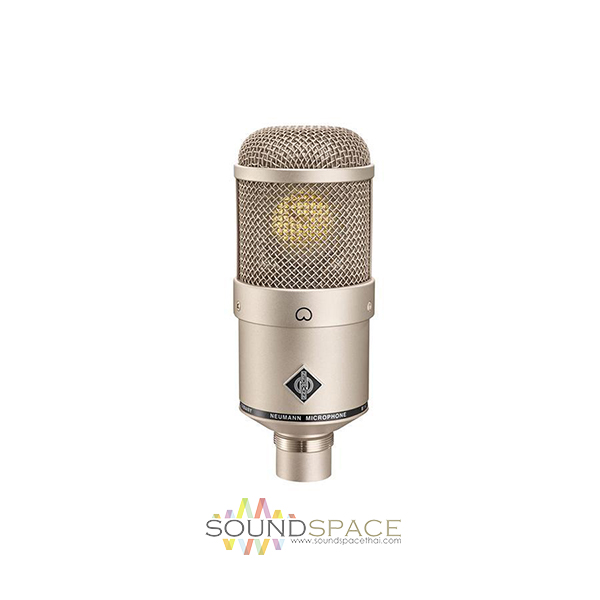

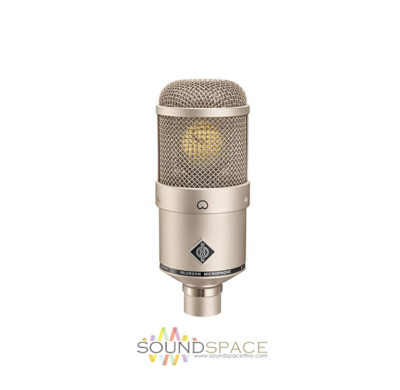

The M 147 Tube Microphone from Neumann is a vacuum tube large diaphragm condenser microphone with a cardioid polar pattern. The pressure gradient, dual diaphragm capsule is the K 47/49, inherited from the legendary U 47 and M 49 microphones. Following the tube is a transformerless output circuit providing low self-noise and high output gain without adding color to the signal.
The M 147 Tube delivers high output levels, allowing the microphone to feed cables up to 984.3′ in length without signal degradation. The side address capsule features a cardioid polar pattern, which is effective in minimizing ambiance and noise coming from the off-axis sections of the microphone. The capsule features a flat frequency response to the upper mid-range, and a boost of up to 3 dB above 2 kHz. The M 147 Tube is a suitable microphone for recording vocals and general instruments such as strings, piano and wind instruments.
Operating Principle | Pressure Gradient |
Capsule | Condenser |
Circuitry | Tube |
Frequency Range | 20 Hz to 20 kHz |
Maximum SPL | 114 dB SPL 134 dB SPL |
Impedance | 50 Ohms |
Load Impedance | 1000 Ohms |
Sensitivity | 20 mV/Pa at 1 kHz into 1 Kilohms |
Signal-to-Noise Ratio | 70 dB CCIR 82 dB A-Weighted |
Equivalent Noise Level | 24 dB CCIR 12 dB A-Weighted |
THD | 0.5% |
Dimensions | ø: 2.24 x L: 5.59″ / ø: 5.69 x L: 14.2 cm |
Weight | 16.23 oz / 460 g |
