ลำโพงห้องบันทึกเสียงแบบมีกำลังขยายในตัว Neumann KH 80 DSP เป็นตู้ลำโพงแบบ Active 2-Way ขนาดดอกลำโพง 4 นิ้ว LF Driver Composite Cone, เสียงแหลม 1 นิ้ว Tweeter, มีกำลังขับ LF Amplifier 90 W / 120 W Peak, HF Amplifier 50 W / 70 W Peak, ตอบสนองความถี่ 53 Hz to 21 kHz ± 6 dB
ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม
฿42,000.00 ฿27,300.00
ลำโพงห้องบันทึกเสียงแบบมีกำลังขยายในตัว Neumann KH 80 DSP เป็นตู้ลำโพงแบบ Active 2-Way ขนาดดอกลำโพง 4 นิ้ว LF Driver Composite Cone, เสียงแหลม 1 นิ้ว Tweeter, มีกำลังขับ LF Amplifier 90 W / 120 W Peak, HF Amplifier 50 W / 70 W Peak, ตอบสนองความถี่ 53 Hz to 21 kHz ± 6 dB

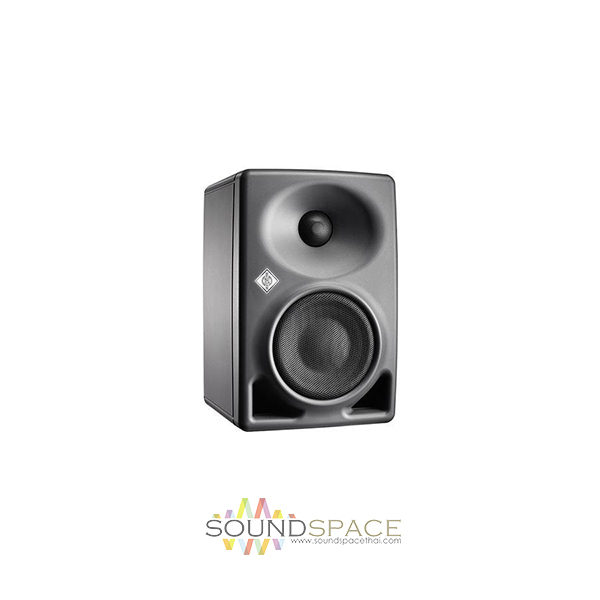

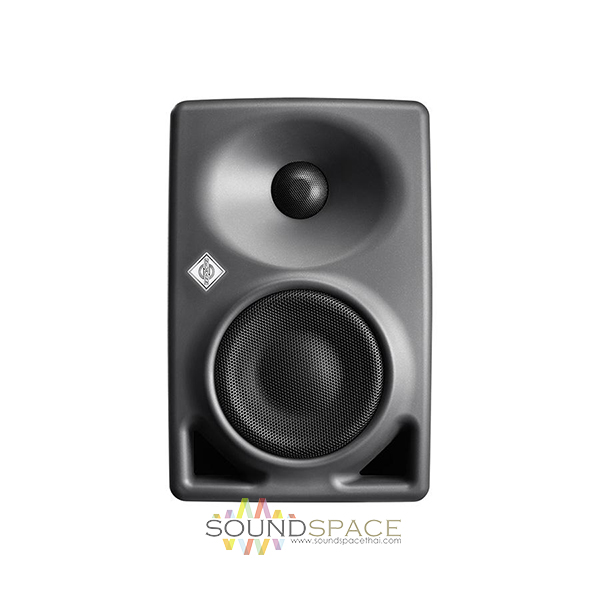

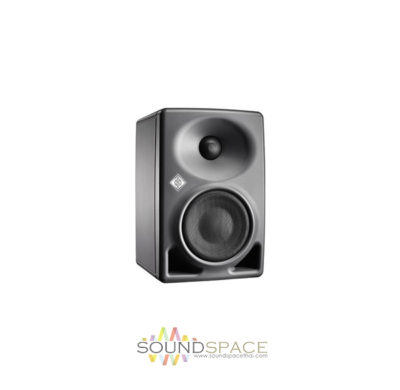

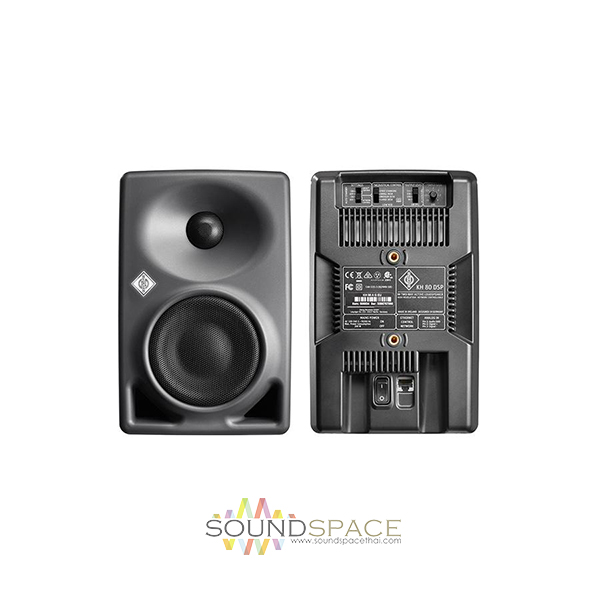

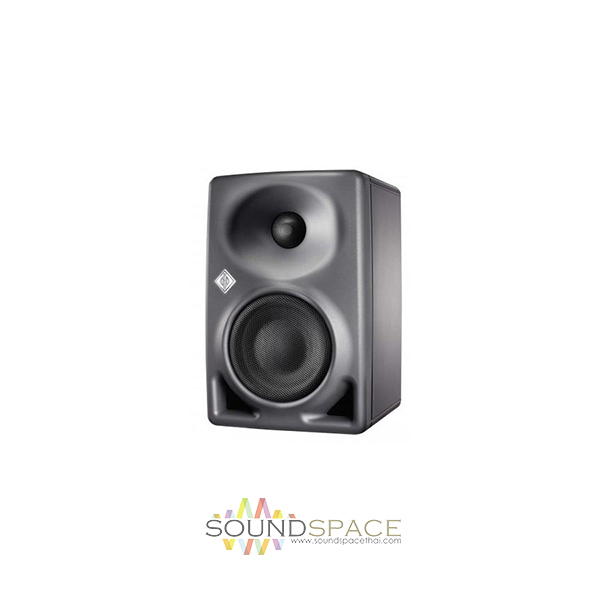

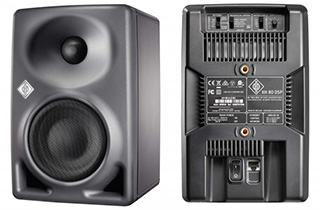

Neumann KH 80 DSP is a 2-way active studio monitor well suited for near-field monitoring and multichannel setups in music studios, broadcast centers and vans, as well as home studios and desktop audio applications. The KH 80 utilizes two amplifiers (120W and 70W) to power the 4″ woofer and 1″ tweeter respectively, an onboard DSP engine, a Mathematically Modeled Dispersion waveguide (MMD), an analog input, and an extensive range of optional mounting hardware.
The DSP function is accessed via a standard IP network connection that allows the monitoring system to be controlled using the Neumann.Control app, which runs on a Windows/Mac computer or iOS/Android tablet.
With the use of the latest acoustic and electronic simulation and measurement technologies, the KH 80 can be used in diverse acoustical conditions with any source equipment and in a wide variety of physical locations, ensuring accurate sound reproduction.
Monitor Type | Active 2-Way |
Enclosure | Bass-Reflex, Shielded |
Drivers | LF Driver: 1 x 4″ / 101.6 mm Composite Cone HF Driver: 1 x 1″ / 25.4 mm Tweeter |
Amplification | LF Amplifier: Rated at 90 W / 120 W Peak HF Amplifier: Rated at 50 W / 70 W Peak |
Frequency Range | 53 Hz to 21 kHz ± 6 dB 57 Hz to 21 kHz ± 3 dB |
Maximum Sound Pressure Level (SPL) | 108.8 dB |
Dynamic Range | 114 dBA |
Maximum Input Level | +24 dBu (Balanced) |
Analog Input Sensitivity/Gain | 0 dB to -15 dB (Incrementally Variable) |
Protections and Limiting | Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting |
EQ | 1 x Low-Mid Shelf dB |
Crossover Frequency | Low-Pass Frequency: 1.8 kHz, 48 dB/Octave Slope |

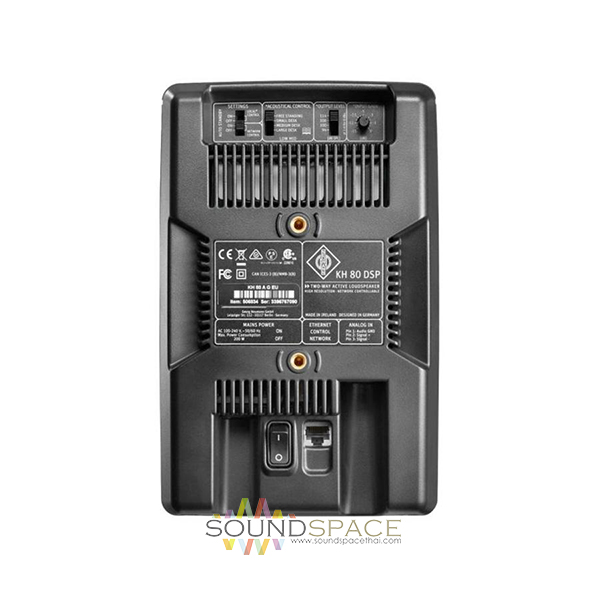

I/O | 1 x Combo XLR / 1/4″ Balanced Female Analog Input |
Computer Interface | 1 x RJ45 (Network) |
AC Input Power | 100 to 240 VAC at 50/60 Hz |
Power Consumption | 180 W (Maximum) |
Operating Temperature | 50 to 104°F / 10 to 40°C |
Storage Temperature | -13 to 158°F / -25 to 70°C |
Mounting Points | 2 x M6 (Rear Panel) |
Dimensions (W x H x D) | 6.1 x 9.2 x 7.6″ / 154 x 233 x 194 mm |
Weight | 9.0 lb / 4.1 kg |
