มิกเซอร์ BEHRINGER XENYX XL3200 Mixer
มิกเซอร์แบบอนาล็อค Behringer Xenyx XL3200 เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 32-Input 4-Bus Live Mixer with XENYX Mic Preamps and British EQs
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿32,130.00
Description

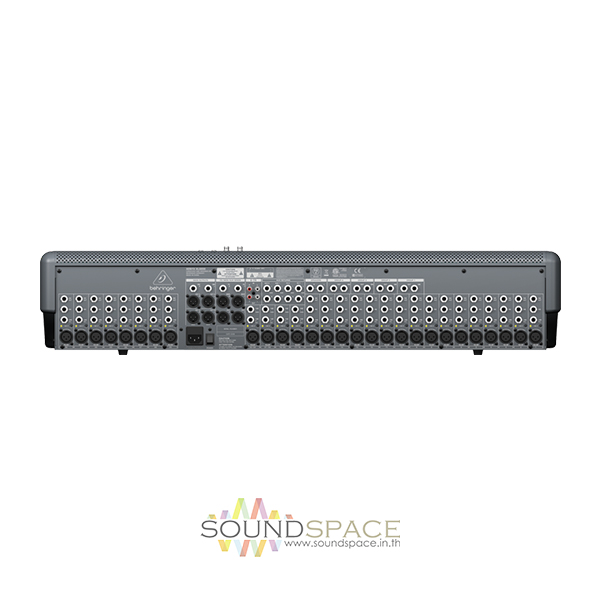

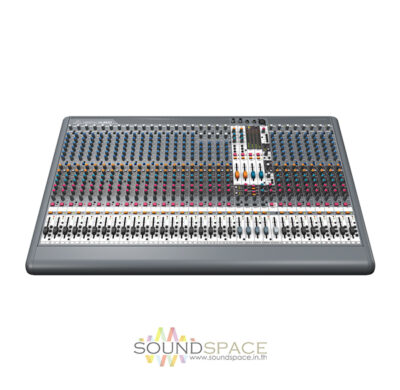

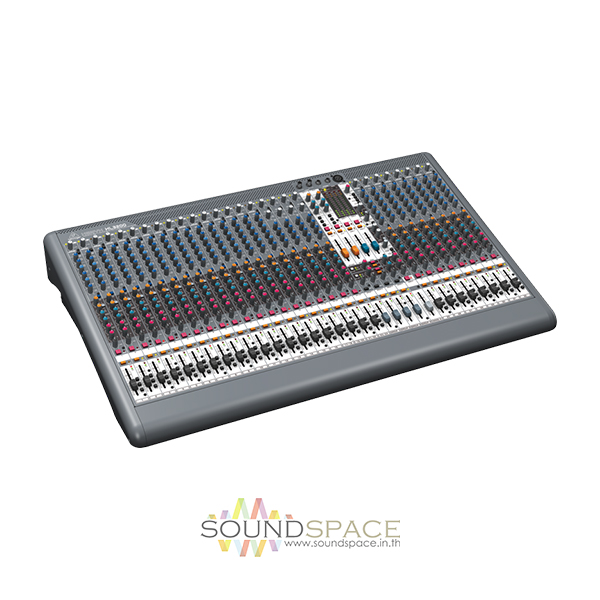

BEHRINGER XENYX XL3200 Mixer
มิกเซอร์แบบอนาล็อค Behringer Xenyx XL3200 เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 32-Input 4-Bus Live Mixer with XENYX Mic Preamps and British EQs
The Behringer XENYX XL3200 is an ultralow-noise, high-headroom analog mixer for live audio applications featuring 28 state-of-the-art XENYX microphone preamps plus 4 stereo Line inputs with ultrahigh RFI suppression. The XL3200’s neo-classic British-style 4-band EQs with 2 semi-parametric mid bands allow for warm and musical sound.
The XL3200 mixer has 4 subgroup outputs with inserts and 2 independent main outputs with inserts on Main A. It features 6 Aux sends per channel, 4 pre/post-fader switchable for flexible routing. It boasts an internal autorange power supply for maximum flexibility (100–240V~), noise-free audio, superior transient response, and low power consumption for energy efficiency.
Features:
- Ultra-low noise, high-headroom analog mixer for live, front-of-house, monitor, corporate and touring audio applications
- 28 state-of-the-art XENYX PRO Mic Preamps plus 4 stereo Line inputs with ultra-high RFI suppression designed for live application
- Neo-classic “British” 4-band EQs with 2 semi-parametric mid bands for warm and musical sound
- 4 Subgroup outputs with inserts plus 2 independent main outputs with inserts on Main A
- 6 Aux sends per channel: 4 pre/post fader switchable for flexible routing
- Channel inserts and direct outputs on each mono channel
- Clip and Signal LEDs plus 80 Hz, EQ, Mute, Solo, Subgroup and Main routing switches on all channels
- 2 multi-functional stereo FX returns with comprehensive routing options
- 2 Headphone and Speaker outputs with selectable Main/CD/Tape inputs
- Solo-In-Place with PFL/AFL function plus full-featured Talkback section
- Long-wearing 60 mm logarithmic-taper faders and sealed rotary controls
- Internal autorange power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by BEHRINGER Germany
Specifications
| Total # Of Inputs | 32 |
| Stereo Line Inputs | 4 |
| Outputs | 2 x balanced XLR main outputs
2 x balanced XLR “B” outputs 2 x balanced XLR monitor outputs 2 x balanced XLR aux outputs 2 x 1/4″ FX outputs 2 x RCA CD/tape outputs 24 x 1/4″ TRS Direct outputs |
| AUX Sends | 6 (2 labeled as FX, 2 labeled as monitor, and 2 labeled as aux) |
| AUX Returns | 4 Stereo returns |
| Inserts | Every channel, every group, and mains |
| 2 Trk Master I/O | 2 x balanced XLR main outputs |
| Monitor Outputs | 2 x balanced XLR
2 x 1/4″ headphone outputs Independent volume control for headphone and monitor outputs |
| EQ Section | 4-Band EQ with swept high and low mids on all mono channels
4-Band EQ with swept low mid on stereo channels |
| Effects | None |
| Solo/Mute | Solo/mute buttons on every channel |
| Channel Level Control | 60mm Faders |
| Trim/Gain Control | XENYX Mic preamp
Mic E.I.N. (20 Hz – 20 kHz) @ 0 Ohm source resistance -127 dB / 129.7 dB A-weighted @ 50 Ohm source resistance -126 dB / 128.3 dB A-weighted @ 150 Ohm source resistance -125 dB / 126.5 dB A-weighted |
| Phantom Power | Yes, +48V, individual channel switches |
| Metering | 13-segment LED main and monitor metering
Signal and peak LEDs on every channel |
| Frequency Response | To Direct Out
<10 Hz – 50 kHz (-1 dB) <10 Hz – 100 kHz (-3 dB) To Insert Send <10 Hz – 90 kHz (-1 dB) <10 Hz – 170 kHz (-3 dB) |
| Signal-to-Noise Ratio | 120 dB / 122 dB A-weighted (0 dBu In @ +22 dB Gain) |
| Total Harmonic Distortion (THD) | Typ. 0.0008 % |
| Dimensions | 7.1 x 35.8 x 21.3″ (180 x 910 x 540 mm) |
| Weight | 32.8 lbs (14.9 kg) |
