มิกเซอร์ BEHRINGER XENYX X1832 USB Mixer
เครื่องผสมสัญญาณเสียง XENYX X1834USB เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 18-Input 3/2-Bus Mixer with XENYX Mic Preamps & Compressors, British EQs
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿13,000.00
Description

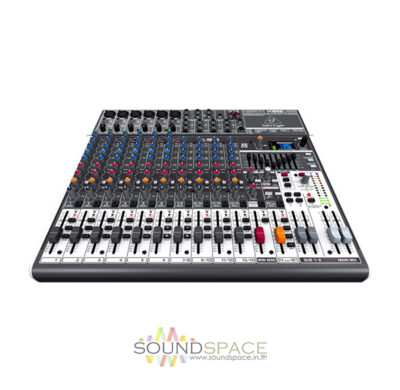

BEHRINGER XENYX X1832 USB Mixer
เครื่องผสมสัญญาณเสียง XENYX X1834USB เป็นมิกเซอร์แบบมีช่องสัญญานขาเข้า 18-Input 3/2-Bus Mixer with XENYX Mic Preamps & Compressors, British EQs
The XENYX X1832USB – 18-Input USB Audio Mixer with Effects from Behringer is a 18-input audio mixer with an integrated USB computer audio interface. It enables you to mix together and shape the sound of multiple audio signals, and route the audio to several outputs. Special attention has been paid to the quality of the X1832USB’s 6 microphone preamps, “British” style EQ, and 6 easy-to-use one-knob compressors.
The X1832USB provides six mono channels with inserts and four stereo channels, making it ideal for a wide range of audio tasks. There are three aux sends on every channel (which enable you to route individual channels to stage monitors or external effects). Every channel features a 3-band EQ with a swept mid, which can really help you make vocals and instruments stand out in a mix. The 9-band graphic EQ can be assigned to either the main or monitor outputs, and an FBQ feedback detection function helps to cut down on disturbing feedback. The built-in USB interface allows for a bi-directional transfer of audio to and from your computer.
The built-in 24-bit dual engine effects processor features 16 presets that include, reverb, chorus, flanger, delay, pitch shifter, and multi-effects. You can edit the parameters of every preset, and a tap tempo button is included to sync time-based effects. The 6 built-in compressors are designed to simplify the process of controlling dynamics in your mix. With a single knob you can dial in the amount of compression you need for any given sound. Individual compressors are a feature rarely seen in mixing boards in this price range. The 6 XENYX preamps offer 130 dB of dynamic range, and the 3-band “British” style EQs really allow you to create a fine-tuned mix. The XENYX X1832USB is well-suited for recording studios, video editing suites, live sound mixing, podcasting, and more.
Specifications
| Total # Of Inputs | 18 Inputs |
| Mic/Line Inputs | 6 x XLR Microphone Inputs
10 x 1/4″ TRS Line-Level Inputs |
| Stereo Line Inputs | 4 x 1/4″ TRS Left & Right Paired Inputs |
| AUX Sends | 3 |
| AUX Returns | 2 Stereo Returns |
| Inserts | 6 |
| BUS (Group) Outputs | 2 Sub Groups |
| 2 Trk Master I/O | 2 x Balanced XLR Outputs
2 x 1/4″ TRS Outputs |
| ALT I/O | 2 x 1/4″ TRS Sub Outputs
1 x 1/4″ MON Output Stereo RCA 2-Track Outputs |
| Monitor Outputs | 2 x 1/4″ TRS Control Room Outputs
1 x 1/4″ Stereo Headphone Output |
| EQ Section | 3-Band EQ with Mid Sweep on Every Channel
9-Band Graphic EQ on Either Mains or Monitor Outs |
| Solo/Mute | Mute and Solo Buttons on Every Channel |
| Channel Level Control | 60mm Faders |
| Trim/Gain Control | Yes |
| Phantom Power | +48 V Phantom |
| Metering | 12-Segment Stereo LED Meters
Clip LEDs on Every Channel |
| Frequency Response | Mic Input to Main Output:
<10 Hz – 90 kHz (+0 dB / -1 dB) <10 Hz – 160 kHz (+0 dB / -3 dB) |
| Dynamic Range | Not Specified by Manufacturer |
| Signal-to-Noise Ratio | 110 dB A-weighted (0 dBu In @ +22 dB Gain) |
| Total Harmonic Distortion (THD) | 0.005% / 0.004% A-weighted |
| Power Supply | Not Specified by Manufacturer |
| Dimensions | 3.54 x 16.93 x 14″ (90 x 430 x 355 mm) |
