มิกเซอร์ BEHRINGER XENYX1002B Mixer
มิกเซอร์ แบบอนาล็อค Behringer XENYX 1002B 5-Channel Mixer has Behringer’s highly musical 3-band British-style EQ, plus an FX and monitor send for each channel, making it a must-have for any audio toolkit.
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿5,600.00
Description
เครื่องผสมสัญญาณเสียง BEHRINGER XENYX 1002B
มิกเซอร์ แบบอนาล็อค Behringer XENYX 1002B 5-Channel Mixer has Behringer’s highly musical 3-band British-style EQ, plus an FX and monitor send for each channel, making it a must-have for any audio toolkit.

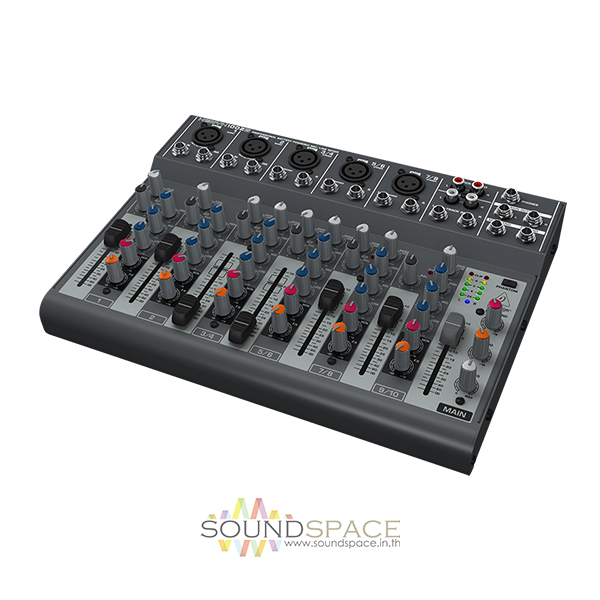

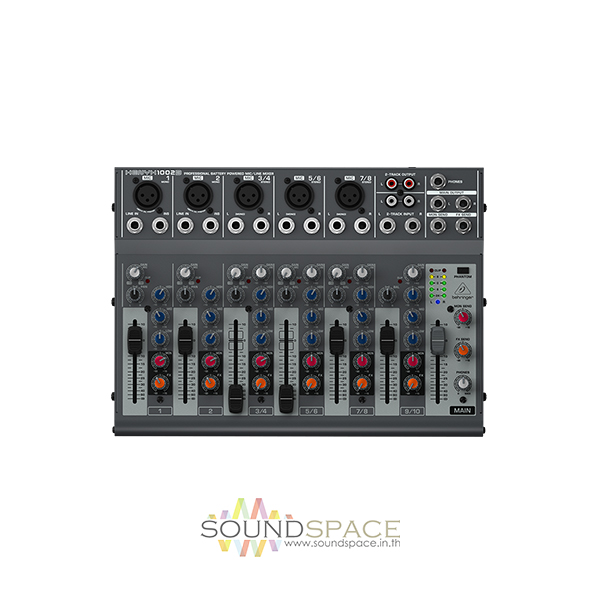

The XENYX 1002B is a compact 10-channel audio mixer with 5 microphone inputs and 5 stereo-paired line-level inputs. The mixer may be powered with the supplied power supply, or 9V batteries for remote use.
An additional stereo I/O is provided for connecting Tape and CD devices. The compact 1002B is well suited for project recording, home video editing, small PA systems and mixing on the road.
Features:
- Premium ultra-low noise analog mixer with optional battery operation
- 2 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
- Neo-classic ”British” 3-band EQs for warm and musical sound
- Optional battery operation (with 9 V alkaline batteries) allows for mobile operation
- 4 balanced, high-headroom stereo inputs with 3 additional mic inputs
- One FX send and one Monitor send per channel for external FX devices and monitor applications
- Clip LEDs on all channels and dedicated inserts on all mono channels
- Main output plus separate Phones and CD/Tape outputs
- Switchable phantom power for condenser microphones
- Long-wearing 60-mm logarithmic-taper master fader and sealed rotary controls
- External power supply for noise-free audio and superior transient response
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by BEHRINGER Germany
Specifications
| Total # Of Inputs | 10 Inputs |
| Mic/Line Inputs | Mic (Xenyx Mic Preamp): XLR connector, electronically balanced, discrete input circuit Gain Range: +14 dB to +60 dB Max Input Level: +12 dBu @ +10 dB gainLine: 1/4″ TS Phone1/4” TRS jack, electronically balanced Impedance: 20 kOhms balanced, 10 kOhms unbalanced Gain Range: -10 dB to +40 dB Max Input Level: +22 dBu @ 0 dB gain |
| Stereo Line Inputs | Line: 2x ¼” TRS jack, balanced Impedance: 20 kOhms balanced, 10 kOhms unbalanced Gain Range: -20 dB to +20 dBMax Input Level: +22 dBu @ 0 dB gainCD/Tape In: RCA connector Impedance: 10 kOhms Max Input Level: +22 dBu |
| AUX Sends | 1/4″ Mono jack, unbalanced Impedance: 120 ohms Max Output Level: +22 dBu |
| Inserts | 1/4″ TRS jack, unbalanced Max input level: +22 dBu |
| Main Output | 1/4″ TRS jack, electronically balanced Impedance: 240 ohms balanced, 120 ohms balanced Max Output Level: +28 dBu |
| Headphone Output | 1/4″ TRS jack, unbalanced Max Output Level: +19 dBu/150 ohms (+25 dBm) |
| EQ Section | LOW: 50 Hz/+-15 dB MID: 700 Hz/+-15 dB HIGH: 10 kHz/+-15 dB |
| Phantom Power | +23 V Phantom with AC Adapter +18 V Phantom with 9 V Battery |
| Metering | Clip LEDs on all channels and dedicated inserts on all mono channels |
| Power Supply | Power Consumption: 50 W Fuse (100-120 V ~50/60 Hz) T 2,0 A H 250 V Fuse (220-230 V ~50/60 Hz) T 2,0 A H 250 V Connector: Standard IEC |
| Battery | 4-Hour battery life w/high quality alkaline battery |
| Dimensions (HxWxD) | 1.5/2.87 x 11.75 x 8.50″ (40/73 x 298 x 216 mm) |
| Weight | 5.5 lbs (2.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 8.95 lb |
| Box Dimensions (LxWxH) | 16.5 x 11.0 x 5.5″ |
