ดิจิตอลมิกเซอร์ MIDAS PRO2C CC TP Touring Package

Name: ดิจิตอลมิกเซอร์ MIDAS PRO2C CC TP Touring Package
Price: 521600.00 THB
Availability: InStock

เครื่องผสมสัญญาณเสียงแบบดิจิตอล Midas Pro2C CC-TP สำหรับงานทัวร์, งานคอนเสริต์ (Touring Package) พร้อมกล่องแร็ค Compact Live Digital Console Control Centre with 64 Input Channels, 8 MIDAS Microphone Preamplifiers, 27 Mix Buses, 96 kHz Sample Rate and Touring Grade Road Case

ราคาไม่รวมภาษีมูลค่าเพิ่ม…

** Click ดูรายการโปรโมชั่น PRO2C-IP Pack

~~฿652,000.00~~ ฿521,600.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: MIDAS

Description

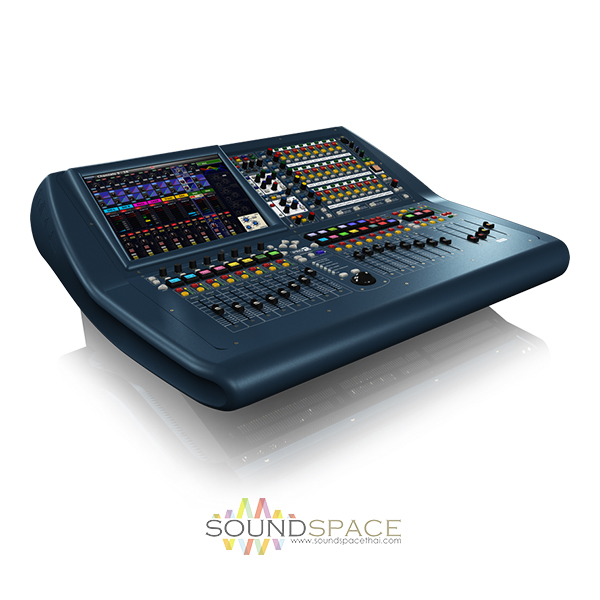

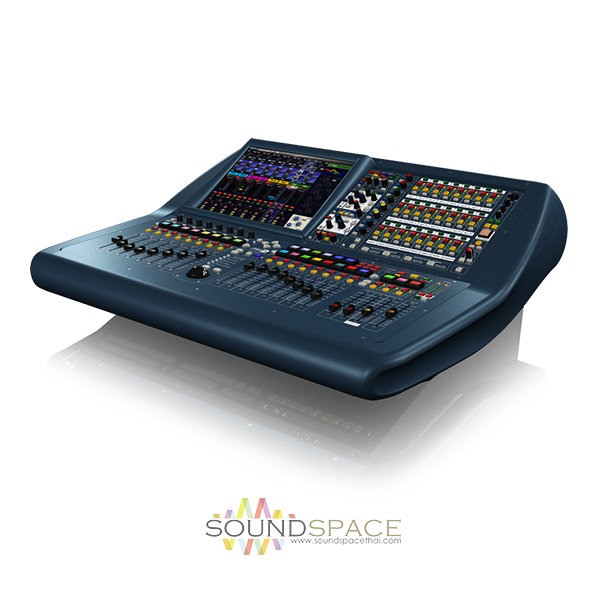

Midas Pro2C CC-TP Digital Audio Mixing System (Touring Package)

เครื่องผสมสัญญาณเสียงแบบดิจิตอล Midas Pro2C CC-TP สำหรับงานทัวร์, งานคอนเสริต์ (Touring Package) พร้อมกล่องแร็ค Compact Live Digital Console Control Centre with 64 Input Channels, 8 MIDAS Microphone Preamplifiers, 27 Mix Buses, 96 kHz Sample Rate and Touring Grade Road Case

The ground breaking PRO2C features 64 simultaneous input channels with 8 award-winning MIDAS Microphone Preamplifiers and 27 time-aligned and phase-coherent mix buses. Like all PRO Series consoles, the PRO2C features managed latency and 40 bit floating point processing precision. Designed for use in high-profile live sound applications, the PRO2C sets a new standard of performance and portability in a compact digital console form factor.

midas_pro2c_digital-mixer

AES50 audio networking technology allows the PRO2C to dynamically assign up to 156 inputs and 164 outputs at 96 kHz sample rate to any of its input channels and bus outputs on a scene-by-scene basis. This high level of connectivity, coupled with the large channel and bus counts, makes the PRO2C equally at home in theatres and clubs as it is in live concert touring, outside broadcast and music festivals.

Features:

midas_rack_touring

Compact live performance digital console control centre with up to 64 simultaneous input channels
8 award-winning MIDAS microphone preamplifiers
27 time-aligned and phase-coherent mix buses
AES50 networking allows up to 156 inputs and 164 outputs @ 96 kHz sample rate
Touring grade road case featuring marine grade plywood, aluminium extrusions and composite density protective foam
Advanced MCA (mix control association) channel control and navigation
8 VCA (variable control association) and 6 POPulation groups
Up to 28 assignable 1/3 octave KLARK TEKNIK DN370 graphic equalisers
Up to 6 multi-channel digital signal processing effects engines
20 MIDAS PRO motorised 100 mm faders
Daylight viewable 15” full colour TFT display screen
Fully interpolated touch sensitive controls
Optional wireless remote control with MIDAS MIXTENDER App for iPad*
Dual redundant auto-ranging universal switch-mode power supplies
3-Year Warranty Program*
Designed and engineered in the U.K.

SPECIFICATIONS

I/O	8x XLR outputs 8x XLR line outputs 4x XLR monitor output 2x XLR master outputs 2x XLR AES3 stereo outputs 2x XLR AES3 stereo inputs 1x XLR talk output 1x XLR talk input
Expandability	Multiple 3U rack configurable I/O boxes (optional DL451 rack boxes) can be connected that house 24 x I/O slots in 8 x 8 wide blocks of: 8x XLR mic/line inputs or 8x XLR line outputs or 8x Jack line in and 8x line out 4x stereo AES3 in and 4x (stereo) AES3 out AES50 networking allows up to 156 inputs and 164 outputs @ 96 kHz sample rateMultiple 6U rack splitters (optional DL431) house: 24x splitter mic/line inputs 2x 24 splitter outputs 1x 24 transformer isolated splitter outputs
Processing	Input audio processing: 56x dual slope high and low pass filters 56x 4-band parametric EQs with 3 shelf modes 56x 4-mode creative input compressors 56x input gatesMix/output audio processing: 24x output 6-band parametric EQs with shelf and multiple high and low pass modes 24x 5-mode creative output dynamics 8x assignable Klark Teknik output GEQAssignable audio processing: 4x assignable stereo effects (each of these can be reconfigured to generate 4 further GEQs making a total of 24 available on the console)
Mixing Control Assistance	6x auto-mutes 6x surface POPulation groups 8x VCA faders 8x VCA associated POPulation groups 176x MCA faders 176x flipped MCA POPulation groups 1000-scene snapshot automation
Resilience	N+1 cable redundancy and dual redundant PSUs
Sampling Frequency	96 kHz
Processor	40-bit
Latency Delay	<2 ms input to master (no compensation)
Dynamic Range	106 dB, 22 to 22,000 Hz (no pre-emphasis)
Maximum Voltage Gain	80 dB inputs to subgroups and masters 86 dB inputs to aux and matrix
Crosstalk	At 1 kHz: -100 dB physically adjacent input channels At 10 kHz: -90 dB physically adjacent input channels
Cut and Mix Transitions	Fader/pan cut off at 1 kHz: -100 dB Fader/pan cut off at 10 kHz: -100 dB
Display Screen	1 x 15″ daylight-viewable color screen
LCD	25 x RGB color
Faders	12x touch-sensitive faders with 1024 steps of resolution
Encoders	31x touch-sensitive with 512 steps
Power Requirements	100 to 240 VAC, ±10%, 50 to 60 Hz
Operating Temperature	41 to 113°F (+5 to 45°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Dimensions (W x Depth)	Control Center: 34.7 x 28.8″ (882.0 x 730.3 mm)
Weight	Control Center: 81.6 lb (37.0 kg)
