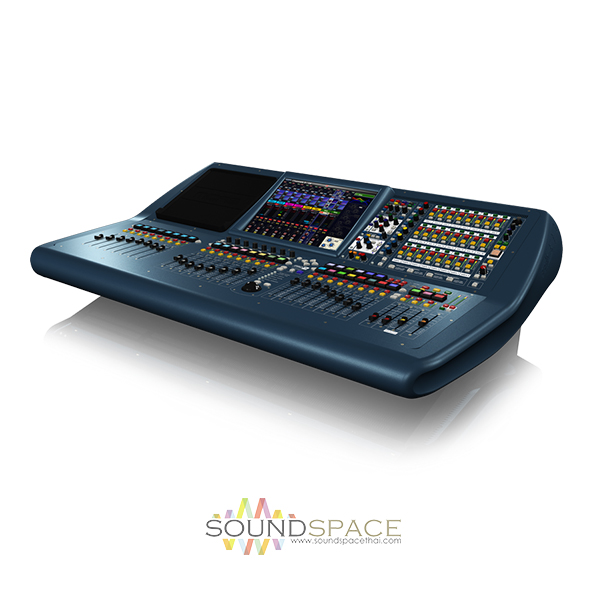

ดิจิตอลมิกเซอร์ MIDAS PRO2 CC-TP Touring Package

Name: ดิจิตอลมิกเซอร์ MIDAS PRO2 CC-TP Touring Package
Price: 746400.00 THB
Availability: InStock

เครื่องผสมสัญญาณเสียงแบบดิจิตอล Midas Pro2 CC-TP สำหรับงานทัวร์, งานคอนเสริต์ (Touring Package) พร้อมกล่องแร็ค Live Digital Console Control Centre with 64 Input Channels, 8 MIDAS Microphone Preamplifiers, 27 Mix Buses, 96 kHz Sample Rate and Touring Grade Road Case

ราคารวมกล่องแร็ค..ไม่รวมภาษีมูลค่าเพิ่ม

** Click ดูรายการโปรโมชั่น PRO2-IP Pack

~~฿933,000.00~~ ฿746,400.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: MIDAS

Description

เครื่องผสมสัญญาณเสียงแบบดิจิตอล MIDAS PRO2 CC-TP Digital Mixer

Midas PRO2 Live Audio Mixing System Touring package version is designed for live sound reinforcement such as in concert venues, theaters, houses of worship, broadcast, and more. The system is designed to work with any of the Midas digital I/O units. It will connect to the Midas DL251 stage box (sold separately) which features 48 Midas mic/line inputs, and 16 analog XLR outputs on stage, in addition to the mixer’s 8 mic/line inputs and 16 XLR analogue outputs on the back of the console itself. Two AES3 inputs, three AES3 outputs, and dual-redundant power supplies, all supplied as standard, complete the hardware configuration. AES50 networking allows for up to 156 inputs and 164 outputs @ 96 kHz sample rate

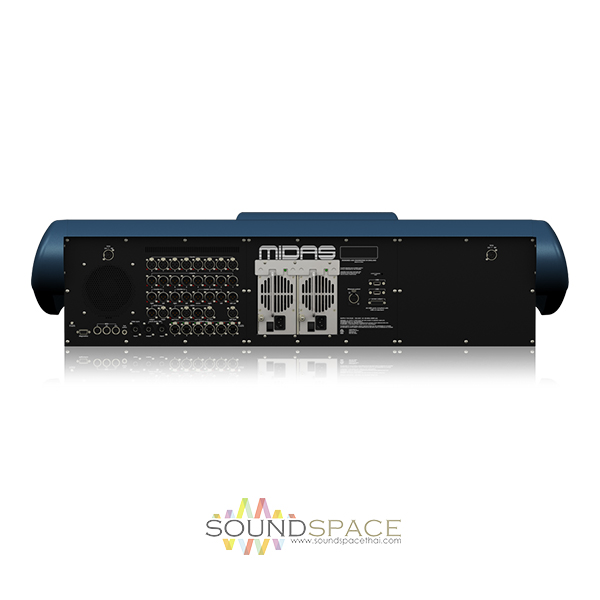

midas_pro2_digital-mixer_3

In addition to the mixer’s 56 primary input channels, the unit also features 8 aux returns, all of which feature 4-band Midas parametric EQ and insert points. These 8 aux returns can be used as returns for the PRO2’s internal FX processors, or as additional mic channels, if sufficient mic inputs are available on the I/O hardware.

The console’s 64 possible input channels may be routed to 27 phase-coherent mix buses which comprise 16 user-configurable buses (as mixes, subgroups, or mix minus groups) and eight matrix buses. The matrix buses can receive their sources from inputs or groups which allows them to be used as eight additional auxiliary (monitor mix and FX sends) for a total of 24 mixes (plus L, R & Mono) for monitor mixing. All buses can be linked as stereo pairs, except the mono bus. As with other Midas digital consoles, the audio paths can be routed to multiple destinations and the console format can be reconfigured live on a scene-by-scene basis.

Features:

midas_rack_touring

6x 96 kHz AES50 ports, providing an additional 156 inputs and 166 outputs
8 integral mic/line inputs with Midas mic preamps
64 simultaneous input processing channels
32 analog outputs (including 16 on the stage box and 2 stereo local monitor outputs)
3 AES3 outputs
2 AES3 inputs
27 sample-synchronous, phase-coherent mix buses
Up to 12 multichannel FX engines
Up to 28 Klark Teknik DN370 31-band Graphic EQs
Full-color 15″ daylight-viewable display screen
8 VCA (Variable Control Association) groups
6 POPulation groups
96 kHz 40-bit floating-point processing throughout

VCA and POPulation Groups

VCA and POPulation groups both have assignable color coding and digital write-on buttons
VCA Groups allow access to all the channel faders belonging to any of the VCA groups at the press of a switch
POP (POPulation) groups can contain any combination of channels that you want to access instantly at the press of a switch
VCA and POP Groups encourage the development of a mental picture, or “Mind Map,” of the whole system
Selecting a VCA or POP group will bring all of the members of that group to you, rather than you having to go looking for them
Input channels can be viewed either by scrolling the input faders or by pressing the EXTEND button, which will populate the VCA faders with additional members of that POP group

Equalization

Fully interpolated controls
4-band parametric EQ
4 different filter types

Dynamics Processing

XL8 dynamics processing
4 different input compressor algorithms
5 different output compressor algorithms
A wide choice of dynamics processing

FX

40-bit floating-point audio processing
Custom-designed FX processors
Internal FX processors operate within Midas’ automatic latency compensation

Surround Sound

Quad 4-Channel – L-R front plus L-R rear
LCRS 4-Channel – L-R-C plus single rear channel
Quad 6-Channel – L-R-C plus sub plus L-R rear

Navigation Mode

FLIP Navigation: selecting an output flips the input fader to become the input channel that sends levels to the selected output

FX Navigation: deploys a patched internal FX processor to the display screen and maps the ASSIGNABLE CONTROLS to the FX processor

GEQ Navigation: selects an output which has a GEQ assigned and present the GEQ on the VCA faders

MCA Navigation: deploys the MCA faders of a selected output to the VCA fader bank. In conjunction with Advanced mode, MCA navigation mode controls the contributions of their members to the currently selected bus.

Areas A and B: Facilitates dual operator use for two independent stereo solo systems with: 4-Channel Configurable “Area B” for dual operators

Automation

1000 snapshot scenes
Scene-specific routing
Scene store and recall can be “scoped”
MIDI inputs and outputs provided
Software versions forward and backward compatible
Show files compatible with any Midas digital console

Patching

156 inputs x 166 outputs (max. capacity) point-to-point routing anywhere within the network
56 mic/line inputs with Midas mic preamps
Up to 64 simultaneous-input processing channels
32 analog outputs (including 2 stereo local monitor outputs)
27 sample-synchronous, phase-coherent mix buses

Mixtender iPad App

Provides wireless remote control for key functions of the console. The App automatically selects the right console type so there is no difficult setup procedure.

With the app you can monitor ALL input and output metering simultaneously in real time, and you can remotely EQ any speaker mix with one of the console’s on-board Klark Teknik DN370 GEQs.

The app also provides simple, fast local stage mix adjustment by accessing the console’s MCA (Mix Control Association). Multiple iPads can be used simultaneously and each one can be locked to a single mix, so artists can create their own monitor mixes without changing any other console settings. The app is free to download from Apple’s App Store

Third-Party System Integration: Provides an Ethernet tunnel between the stage and mix position with additional bandwidth using HyperMAC digital snakes, Cat 5e, and the fiber optic option for third-party data transfer via standard Ethernet traffic, MIDI message, and GPIO (General Purpose Input and Output signaling)

Analog Potentiometers: Uses analog potentiometers as opposed to mechanical encoders to access the processing algorithms

Display Screen: Features high-resolution display that remain visible even in direct sunlight to provide visual feedback for channel strips, system information, third-party applications

Keyboard Video and Mouse: Allows you to bring up third-party applications from either a PC or MAC on screen and the console’s keyboard and track ball can be used to operate the computer

Sample Synchronous Audio: Ensures the phasing of different signals being mixed are coherent

Detail Panel Area: Features a vertically oriented channel strip layout with configurable controls and multicolor LCD channel select buttons

Microphone Preamplifiers: Uses discrete component design with a warmth similar to that found on the Midas XL3, XL4, and Heritage consoles with separate analog remote gain and digital trim controls for gain staging

Compatible I/O Units

DL251 Fixed Format I/O Unit
DL252 Fixed Format I/O Unit
DL351 Modular I/O unit
DL431 Input Splitter unit
DL441 Analog Input card
DL442 Analog Output card
DL443 TRS card
DL444 D-Sub card
DL451 Modular I/O unit
DL452 AES/EBU card

Compatible Accessories

DN9331 – Graphic Controller
DN9610 – AES50 Repeater
DN9620 – AES50 Extender
DN9650 – Network Bridge
DN9696 – AES50 Audio Recorder

Specifications

I/O	8x XLR outputs 8x XLR line outputs 4x XLR monitor output 2x XLR master outputs 2x XLR AES3 stereo outputs 2x XLR AES3 stereo inputs 1x XLR talk output 1x XLR talk input
Expandability	Multiple 3U rack configurable I/O boxes (optional DL451 rack boxes) can be connected that house 24 x I/O slots in 8 x 8 wide blocks of: 8x XLR mic/line inputs or 8x XLR line outputs or 8x Jack line in and 8x line out 4x stereo AES3 in and 4x (stereo) AES3 out AES50 networking allows up to 156 inputs and 164 outputs @ 96 kHz sample rateMultiple 6U rack splitters (optional DL431) house: 24x splitter mic/line inputs 2x 24 splitter outputs 1x 24 transformer isolated splitter outputs
Processing	Input audio processing: 56x dual slope high and low pass filters 56x 4-band parametric EQs with 3 shelf modes 56x 4-mode creative input compressors 56x input gatesMix/output audio processing: 24x output 6-band parametric EQs with shelf and multiple high and low pass modes 24x 5-mode creative output dynamics 8x assignable Klark Teknik output GEQAssignable audio processing: 4x assignable stereo effects (each of these can be reconfigured to generate 4 further GEQs making a total of 24 available on the console)
Mixing Control Assistance	6x auto-mutes 6x surface POPulation groups 8x VCA faders 8x VCA associated POPulation groups 176x MCA faders 176x flipped MCA POPulation groups 1000-scene snapshot automation
Resilience	N+1 cable redundancy and dual redundant PSUs
Sampling Frequency	96 kHz
Processor	40-bit
Latency Delay	<2 ms input to master (no compensation)
Dynamic Range	106 dB, 22 to 22,000 Hz (no pre-emphasis)
Maximum Voltage Gain	80 dB inputs to subgroups and masters 86 dB inputs to aux and matrix
Crosstalk	At 1 kHz: -100 dB physically adjacent input channels At 10 kHz: -90 dB physically adjacent input channels
Cut and Mix Transitions	Fader/pan cut off at 1 kHz: -100 dB Fader/pan cut off at 10 kHz: -100 dB
Display Screen	1 x 15″ daylight-viewable color screen
LCD	25 x RGB color
Faders	20x touch-sensitive faders with 1024 steps of resolution
Encoders	31x touch-sensitive with 512 steps
Power Requirements	100 to 240 VAC, ±10%, 50 to 60 Hz
Operating Temperature	41 to 113°F (+5 to 45°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Dimensions (W x Depth)	Control Center: 46.4 x 27.8″ (1179.6 x 730.3 mm)
Weight	Control Center: 88.2 lb (40.0 kg)
