เครื่องกระจายสัญญาณ MIDAS HUB4 Monitor System

Description

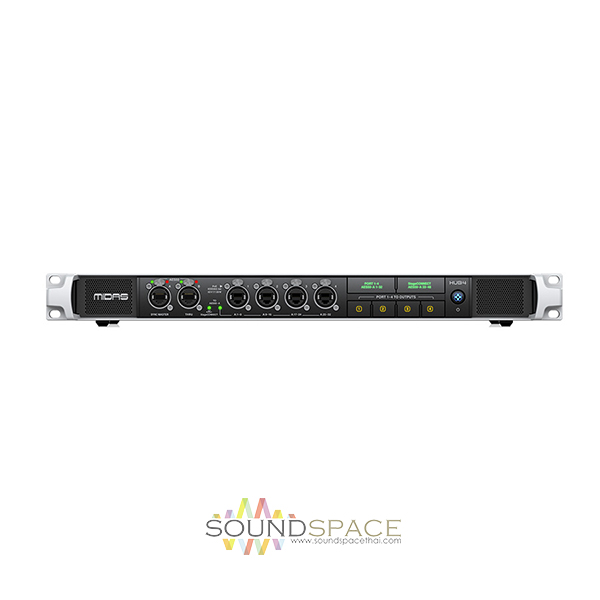

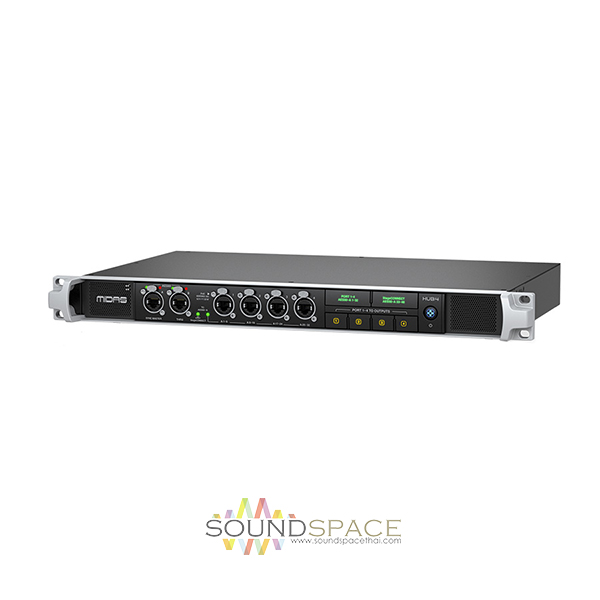

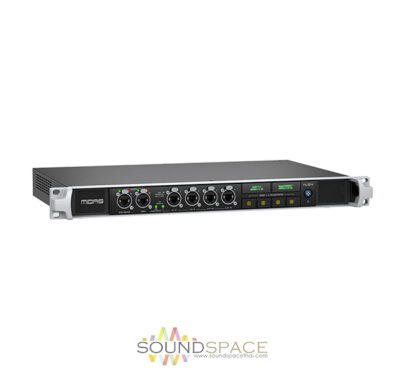

Midas HUB4 Rackmount Monitor System Hub

เครื่องกระจายสัญญาณ AES50 Midas HUB4 เป็นเครื่องกระจายสัญญานแบบเข้าแร็ค 16 Balanced Analog Outputs for IEM Transmitters , PoE Remote Powering for Four Devices, Supports Personal Mixers and Stageboxes, AES50 Ports  In, Thru, and Four Outputs

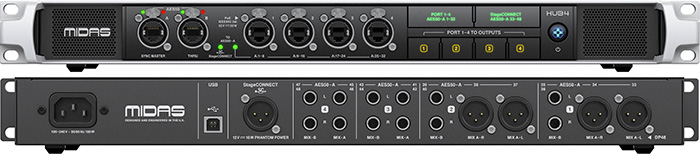

The Midas HUB4 is a rackmount monitor system hub designed to interconnect mixing consoles, personal mixers, stageboxes, and IEM transmitters for houses of worship, concert venues, theaters, and other live stage applications. It features etherCON AES50 input, thru, and output ports for handling up to 48 bidirectional channels at 44.1 or 48 kHz, and it can supply PoE for up to four DP48 personal mixers or DL8 stageboxes.

The 16 balanced analog outputs are ideal for routing 4×2 stereo mixes to transmitters for in-ear monitors and the StageCONNECT XLR output can send phantom power and up to 32 channels of digital audio to StageCONNECT devices with ultralow latency.

Remote operation via shielded Cat 5e cable enhances convenience for large, complex setups and the front-panel buttons make it easy to send signals to the analog outs, the StageCONNECT port, and the AES50-A upstream feed.

Thanks to the rugged 1 RU chassis and the autoranging universal switch-mode power supply, the HUB4 is ready for anything from permanent installations to world tours.

Features:

• Personal monitoring system hub with PoE remote powering for up to 4 DP48 personal mixers and compatible stage boxes
• AES50 IN and THRU ports for cascading hubs or stage boxes with 48 bidirectional channels at 48/44.1 kHz
• 16 balanced analogue outputs for sending 4×2 personal stereo mixes to IEM transmitters in the side rack
• Channel naming and Group assignments can be distributed from compatible M32 consoles
• Midas DL8 Stage Boxes can be connected and powered from ports 1-4
• Personal mix outputs can be monitored via AES50 upstream to connected consoles
• Supports remote control forwarding of a DP48 personal mixer from another DP48
• Front panel buttons for sending signals to analogue output groups 1-4, for StageCONNECT and for AES50-A upstream
• StageCONNECT output with phantom power for connecting other StageCONNECT devices, sharing 32-channel audio, 24-Bit uncompressed PCM, 44.1/48 kHz, at sub-milisecond latency, over any standard XLR microphone or DMX cable
• Remote operation via shielded CAT5e cable up to 260 ft / 80 m length recommended
• Features Neutrik etherCON* AES50 network ports
• Rugged 1U chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply
• Designed and engineered in the U.K.
