มิกซ์มอนิเตอร์ MIDAS DP48 Personal Monitor Mixer

Name: มิกซ์มอนิเตอร์ MIDAS DP48 Personal Monitor Mixer
Price: 22000.00 THB
Availability: InStock

มิกเซอร์มอนิเตอร์ MIDAS DP48 สำหรับงานแสดงสด 48-channel personal monitor mixer, 12 stereo groups, Integrated SD card interface for stereo recording, Built-in stereo ambience microphone, Compatible with any 44.1/48 kHz AES50-equipped devices including Midas and Behringer digital consoles and I/O boxes

เร็วๆนี้ค่ะ… ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม……

฿22,000.00

สอบถามและสั่งซื้อสินค้า

Category: ดิจิตอลมิกเซอร์ (Digital Mixer) Tag: MIDAS

Description

MIDAS DP48 48 Channel Personal Monitor Mixer with SD Card Recorder

The Midas DP48 is a dual 48 channel personal monitor mixer that allows 2 performers to fully control their monitor mixes and hear exactly what they want and even record and playback rehearsals and performances. With a simple and intuitive interface and the ability to connect to any AES50-equipped device, the DP48 can create a complete monitoring system perfect for use in the studio or on stage.

Features:

Dual 48 channel personal monitor mixer compatible with Midas personal monitoring system hubs
12 stereo groups enable rapid creation and balancing of personal mixes from fully configurable stem groups
Dual mix feature allows independent control of two complete monitor mixes
Integrated SD card interface for stereo recording and playback of rehearsal sessions and performances
Built-in stereo ambience microphone provides on-stage sound feed to remove sense of isolation with in-ear monitors
Studio-quality reverb adds spatial ambience to personal in-ear mixes, independent from main console
Remotely powered via direct AES50 connection from Midas hubs featuring Power over Ethernet (PoE)
Separate DC power supply allows daisy-chaining of DP48 personal monitor mixers and use without any PoE hub
Compatible with any 44.1/48 kHz AES50-equipped devices including Midas and Behringer digital consoles and I/O boxes
Midas PRO SERIES and M32 console input channel labelling and colour information transmitted to DP48 personal monitor mixer via AES50 input channels
AES50 return channels allow personal mixes to be sent back to the console or hub for connection to wireless IEM transmitters
Remote operation up to 100 m via screened CAT5/5e cable
Remote setup and control of DP48 personal monitor mixer via Midas hubs
Full remote control of another DP48 when both connected to the same hub or used in daisy chain configuration

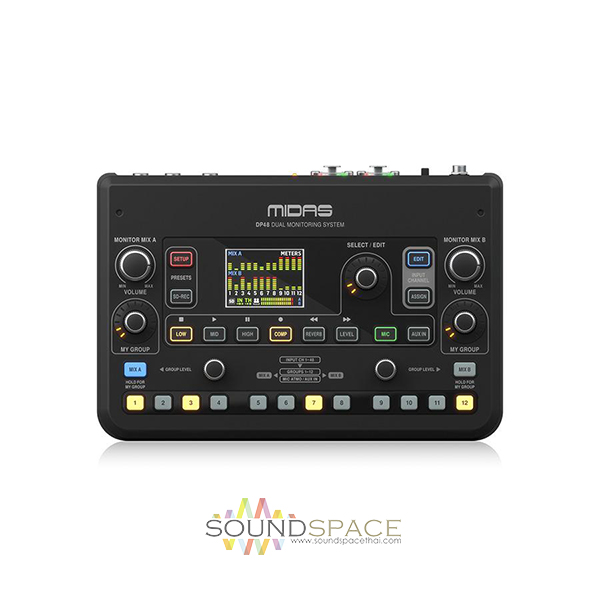

High-contrast 2.4″ colour TFT display screen provides clear overview of mix parameters, meters and group assignments
Analogue stereo auxiliary input for local click track
High power headphone output for use in all stage monitoring environments
Fully adjustable limiter allows for safe monitoring levels within sound exposure limits
Mounts securely on microphone stand with DP48MB adaptor (not included)
Designed and engineered in the U.K.

Specifications

Number of Analog Input Channels	2 (1 Stereo)
Number of Analog Output Channels	6
Max I/O Capacity	48 x Input / 48 x Output
Number of Mic Preamps	None
Faders	None
Mix Routing	12 x Stereo Subgroup
Presets	12 x Scene
Display	Main Display: 2.4″ / 6.1 cm LCD

Signal Processing

Input Polarity	Fixed
Dynamic Processing	Buses: Compressor Master: Limiter
EQ	Input Channels: 3-Band Semi-Parametric
EQ Parameters	LF Shelf: ±15 dB at 20 Hz to 22 kHz MF Peak: ±15 dB at 20 Hz to 22 kHz HF Shelf: ±15 dB at 20 Hz to 22 kHz
Graphic EQ	None
Internal Effects	4 x Reverb
Real Time Analyzer	None
Audio Delay	None
Automatic Mic Mixing	None

Digital Audio

Sample Rates	44.1 / 48 kHz
Bit Depth	24-Bit

Performance

Output Level	1/4″ TRS Headphone Output: +12.8 dBu (Max)
I/O Impedance	1/4″ TRS Aux Input: 40 Kilohms (Balanced) 20 Kilohms (Unbalanced) 1/4″ TRS Line Output: 1 Kilohms (Balanced) 500 Ohms (Unbalanced) 1/4″ TRS Headphone Output: 25 Ohms (Unbalanced)
Signal Generator	None

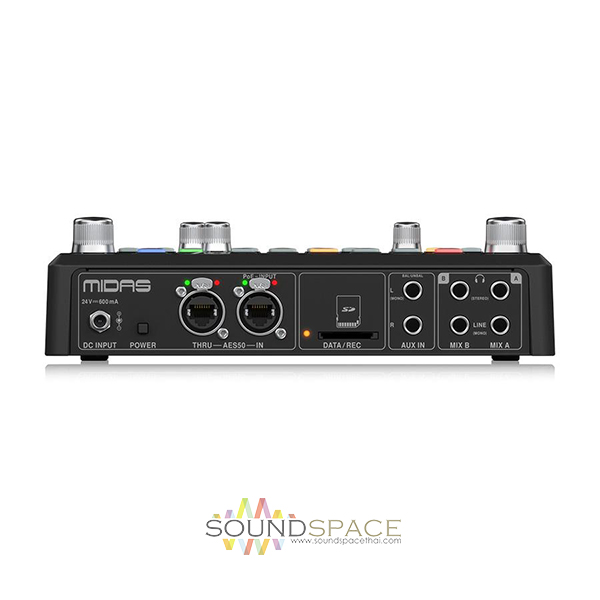

Connectivity

Analog Inputs	2 x 1/4″ TRS Balanced/Unbalanced Aux Input (2 Stereo Pair)
Analog Outputs	2 x 1/4″ TRS Balanced/Unbalanced Line Output 2 x 1/4″ TRS Unbalanced Stereo Headphone Output
Digital I/O	1 x etherCON AES50 Input (Control, I/O, PoE) 1 x etherCON AES50 Thru (Control, I/O)
MIDI I/O	None
USB	None
Expansion Ports	None
Wireless Connectivity	None
External Display Connection	None
