MIDAS DL452 I/O Interfaces AES/EBU Input and Output

Description

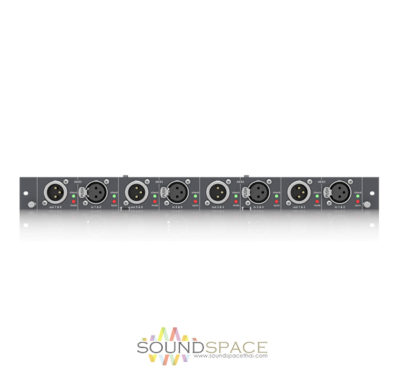

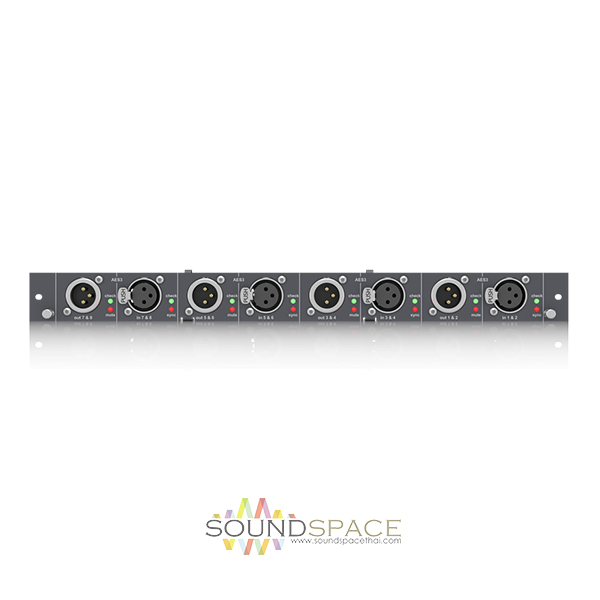

Midas DL452 AES/EBU Input and Output D Card

I/O อินเตอร์เฟส MIDAS DL452, AES3 Digital 8 Input, 8 Output Card with Sample Rate Conversion, for DL451, DL351, and PRO Surfaces

The DL452 AES/EBU Input and Output D Card from Midas is designed for use in the DL451, DL351, PRO3, PRO6, and PRO9 surfaces. The card features 8 x 8 inputs and outputs via four AES/EBU in/out pairs. The inputs feature sample rate converters and sync to an external clock. The outputs feature sample rate converters, selectable word length, and can sync to an internal or external clock.

Features:

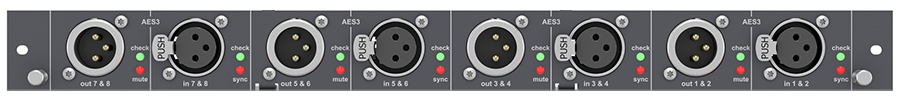

• 4 AES3 (AES/EBU) input and 4 AES3 outputs on Neutrik* XLR connectors
• 8 input channels and 8 output channels with sample rate conversion
• External clock synchronisation for input channels
• Word length and clock source options for outputs
• Supports 96 kHz or 48 kHz external sample rate operation
• External sync and channel check LEDs per input channel
• Output Mute and channel check LEDs per output channel
• Compatible with MIDAS XL8, PRO3, PRO6, PRO9, PRO X, DL351 and DL451
• 3-Year Warranty Program*
• Designed and engineered in the U.K.
