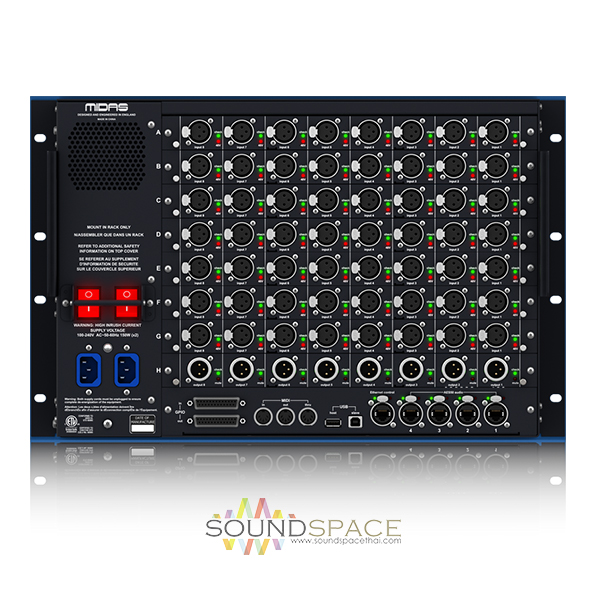

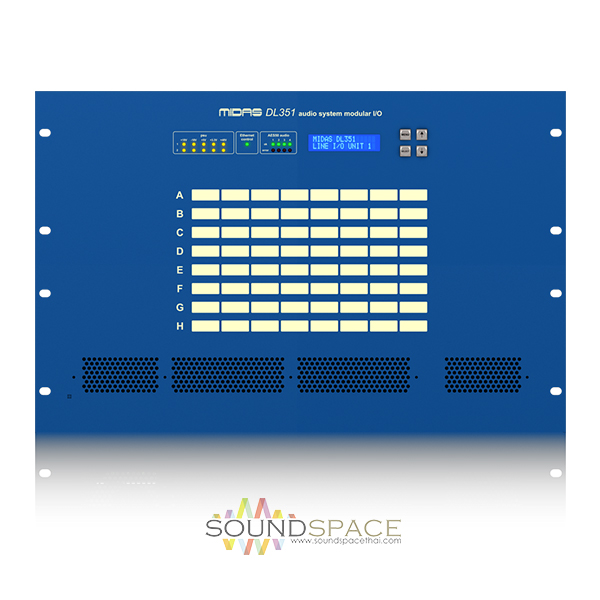

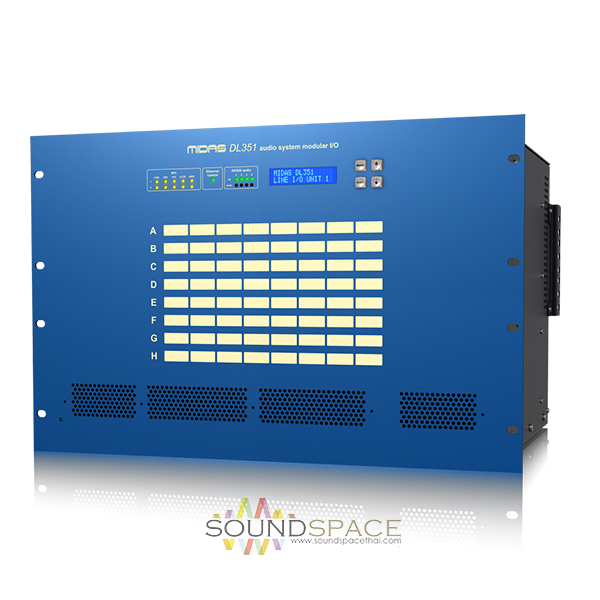

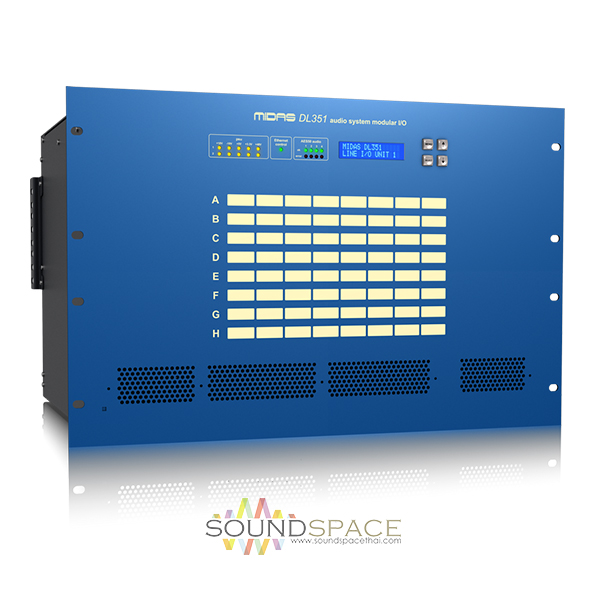

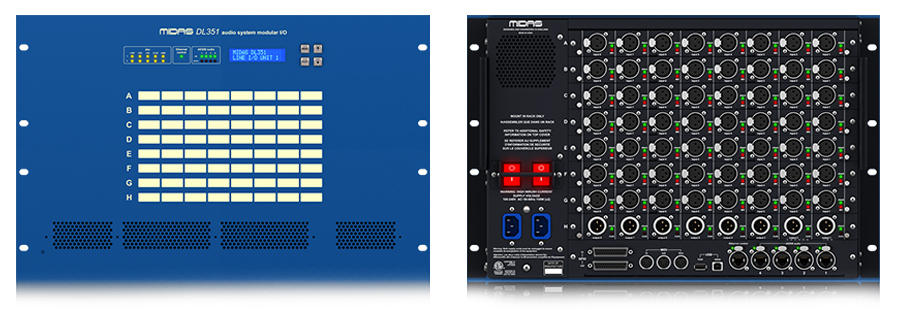

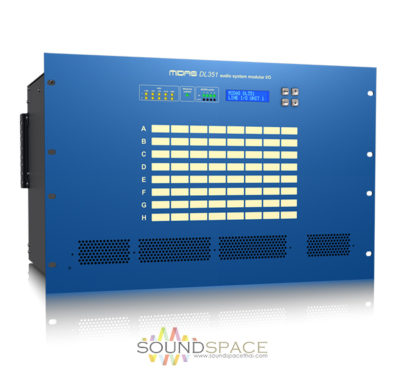

MIDAS DL351 I/O Interfaces Stage Box

Description

Midas DL351 Modular I/O Unit for Midas Consoles

I/O อินเตอร์เฟส MIDAS DL351, Modular Stage Box with 8 Card Slots and up to 64 Inputs and 64 Outputs

DL351 is a 7U 19″ modular configurable rack mount I/O unit with provision for 8 DL4 Series interface cards, which can provide up to 64 audio inputs and 64 audio outputs. With four AES50 network ports providing N+1 redundancy, plus an Ethernet control port and a MIDI Interface (In, Out, Thru), the DL351 is the ideal partner to all MIDAS PRO Series digital consoles, enabling a digital snake connection from Front of House to stage.

Features:

• Modular stage box accepts 8 DL4 series I/O cards
• Up to 64 audio inputs and 64 audio outputs
• 24 bit audio operation with 96 kHz sample rate
• Remote operation up to 100 m via CAT5/5e cable
• All settings programmable from front panel controls or console
• PSU status indicator LEDs and configuration LCD display on front panel
• 4 AES50 network ports for redundant connections
• Two GPIO 25-pin D-type opto-isolated connectors for external device control
• MIDI In, Out and Thru connectors
• Features Neutrik etherCON* AES50 network ports
• Rugged 7U rackmount chassis for durability in portable applications
• Dual redundant auto-ranging universal switch-mode power supplies
• 3-Year Warranty Program*
• Designed and engineered in the U.K.
