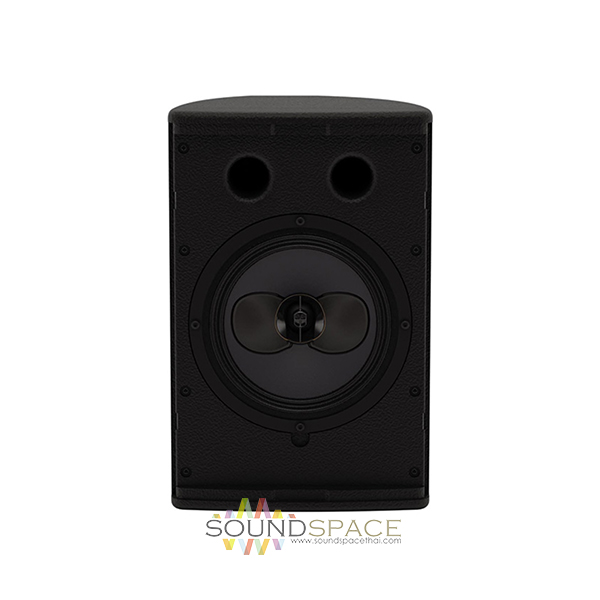

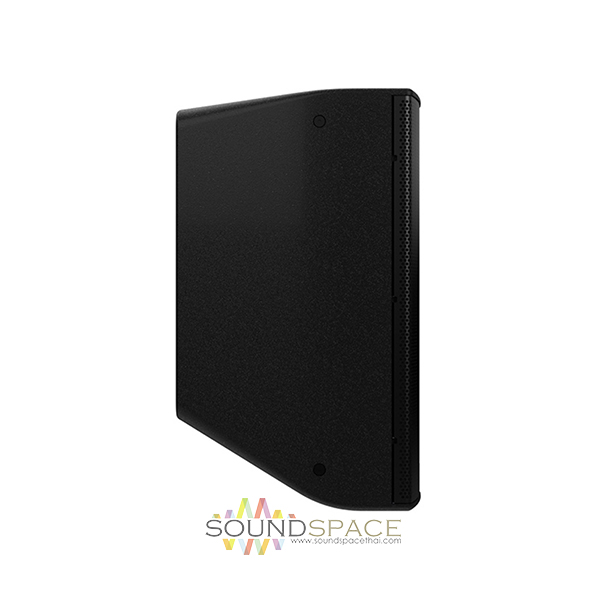

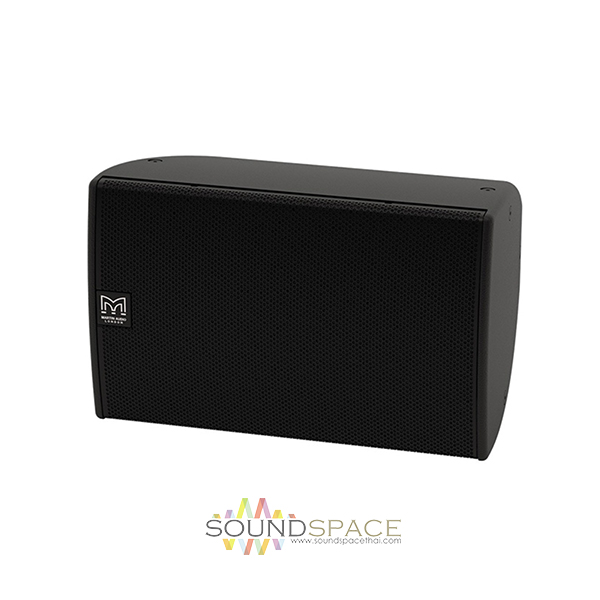

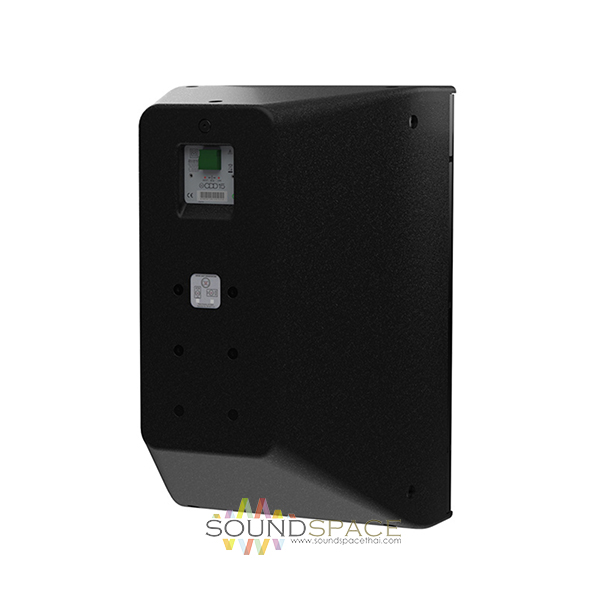

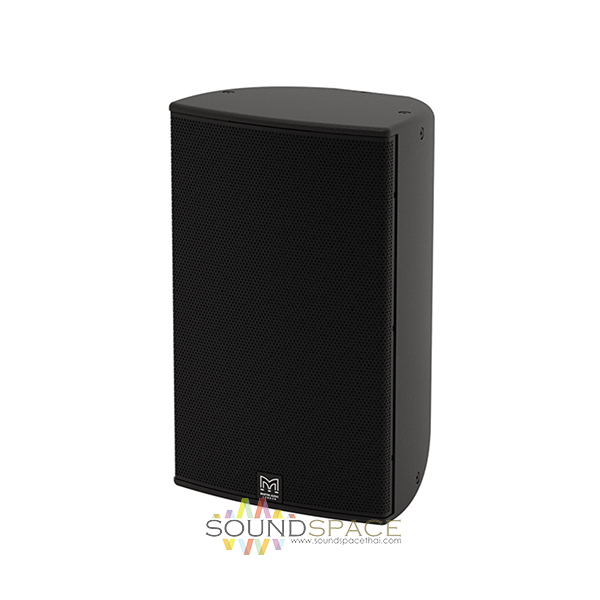

ตู้ลำโพง Martin Audio CDD15 Passive Coaxial Loudspeaker 15″
ลำโพงแบบไม่มีกำลังขยายในตัว Martin Audio CDD15 เป็นลำโพงแบบ 2-Way Passive Coaxial Loudspeaker ขนาดดอกลำโพง LF 15 นิ้ว เสียงแหลม HF 1 นิ้ว Coaxial Differential Dispersion Technology, ทนกำลังขับ 400 วัตต์ AES, 1600 วัตต์ peak, 8Ω nominal impedance
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม….
฿132,000.00
Description
Martin Audio CDD15 Passive Coaxial Loudspeaker 15″ 400W
ลำโพงแบบไม่มีกำลังขยายในตัว Martin Audio CDD15 เป็นลำโพงแบบ 2-Way Passive Coaxial Loudspeaker ขนาดดอกลำโพง LF 15 นิ้ว เสียงแหลม HF 1 นิ้ว Coaxial Differential Dispersion Technology, ทนกำลังขับ 400 วัตต์ AES, 1600 วัตต์ peak, 8Ω nominal impedance
Ideal for medium-to-large rooms, the CDD15 is a very high-power, passive two-way system designed for installations that demand the ultimate in sonic performance from a single enclosure. It combines very high output capability with exceptional fidelity and coverage consistency.
Its coaxial drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.
Features:
- High-output, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant birch plywood enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Integral inserts for eyebolt suspension
- Black or white standard colour options
Specifications
| TYPE | High-output, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE | 55Hz-18kHz ± 3dB, -10dB @ 45Hz |
| DRIVER | LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver |
| RATED POWER | 400W AES, 1600W peak |
| SENSITIVITY | 100dB |
| MAXIMUM SPL | 126dB continuous, 132dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 100˚-60˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 1.6kHz passive |
| ENCLOSURE | 68 litre, birch plywood |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
| CONNECTORS | Low profile 20A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 10 x M8 fly points |
| DIMENSIONS | (W) 432mm x (H) 685mm x (D) 413mm (W) 17.01ins x (H) 26.97ins x (D) 16.26ins |
| WEIGHT | 26kg (57.32lbs) |
