ตู้ลำโพง Martin Audio CDD12 Passive Coaxial Loudspeaker 12″
ลำโพงแบบไม่มีกำลังขยายในตัว Martin Audio CDD12 เป็นลำโพงแบบ 2-Way Passive Coaxial Loudspeaker ขนาดดอกลำโพง LF 12 นิ้ว เสียงแหลม HF 1 นิ้ว Coaxial Differential Dispersion Technology, ทนกำลังขับ 300 วัตต์ AES, 1200 วัตต์ peak, 8Ω nominal impedance
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม….
฿106,200.00
Description
Martin Audio CDD12 2-Way Passive Coaxial Loudspeaker 12″ 300W
ลำโพงแบบไม่มีกำลังขยายในตัว Martin Audio CDD12 เป็นลำโพงแบบ 2-Way Passive Coaxial Loudspeaker ขนาดดอกลำโพง LF 12 นิ้ว เสียงแหลม HF 1 นิ้ว Coaxial Differential Dispersion Technology, ทนกำลังขับ 300 วัตต์ AES, 1200 วัตต์ peak, 8Ω nominal impedance

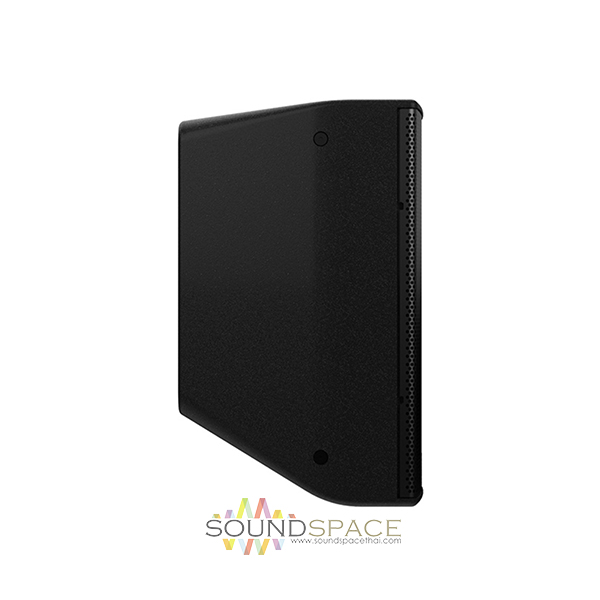

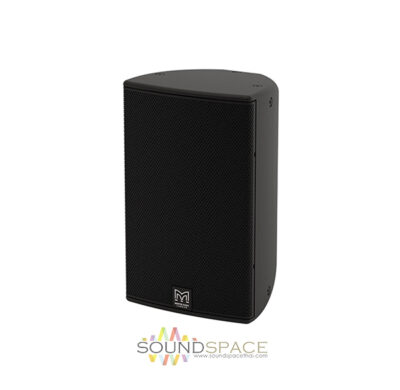

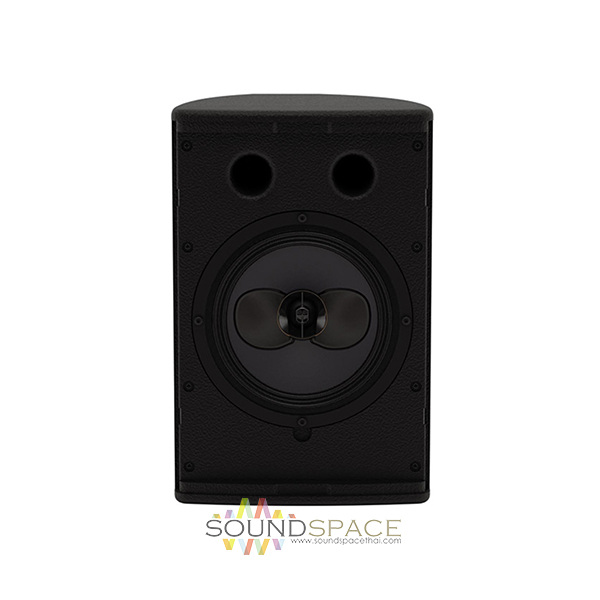

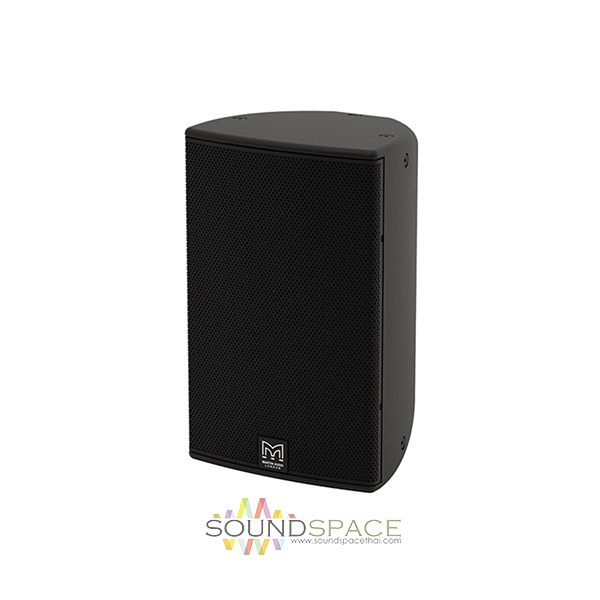

The CDD12 is a compact, passive two-way system designed for installations that require high output levels. Its high-specification 12” (300mm) LF /1” exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances.
Features:
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Discreet mounting accessories
- Black or white standard colour options
Specifications
| TYPE | Compact, high-output, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE | 62Hz-20kHz ± 3dB, -10dB @ 50Hz |
| DRIVER | LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver |
| RATED POWER | 300W AES, 1200W peak |
| SENSITIVITY | 97dB |
| MAXIMUM SPL | 122dB continuous, 128dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 110˚-60˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 1.9kHz passive |
| ENCLOSURE | 38 litre, birch plywood |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |

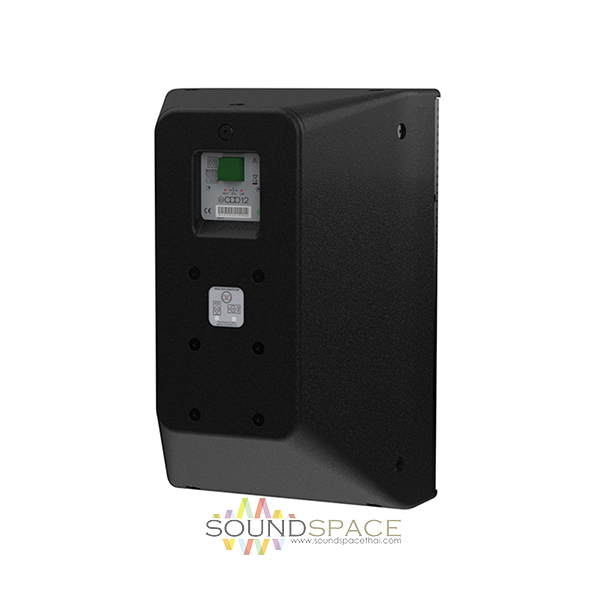

| CONNECTORS | Low profile 20A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 6 x M8 inserts for wall bracket 10 x M8 fly points |
| DIMENSIONS | (W) 360mm x (H) 560mm x (D) 350mm (W) 14.17ins x (H) 22.05ins x (D) 13.78ins |
| WEIGHT | 19kg (41.89 lbs) |
