ตู้ลำโพง Martin Audio CDD10 Passive Coaxial Loudspeaker 10″
ลำโพงแบบไม่มีกำลังขยายในตัว Martin Audio CDD10 เป็นลำโพงแบบ 2-Way Passive Coaxial Loudspeaker ขนาดดอกลำโพง LF 10 นิ้ว เสียงแหลม HF 1 นิ้ว Coaxial Differential Dispersion Technology, ทนกำลังขับ 250 วัตต์ AES, 1000 วัตต์ peak, 8Ω nominal impedance
ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม….
฿73,200.00
Description
Martin Audio CDD10 2-Way Passive Coaxial Loudspeaker 10″ 250W
ลำโพงแบบไม่มีกำลังขยายในตัว Martin Audio CDD10 เป็นลำโพงแบบ 2-Way Passive Coaxial Loudspeaker ขนาดดอกลำโพง LF 10 นิ้ว เสียงแหลม HF 1 นิ้ว Coaxial Differential Dispersion Technology, ทนกำลังขับ 250 วัตต์ AES, 1000 วัตต์ peak, 8Ω nominal impedance

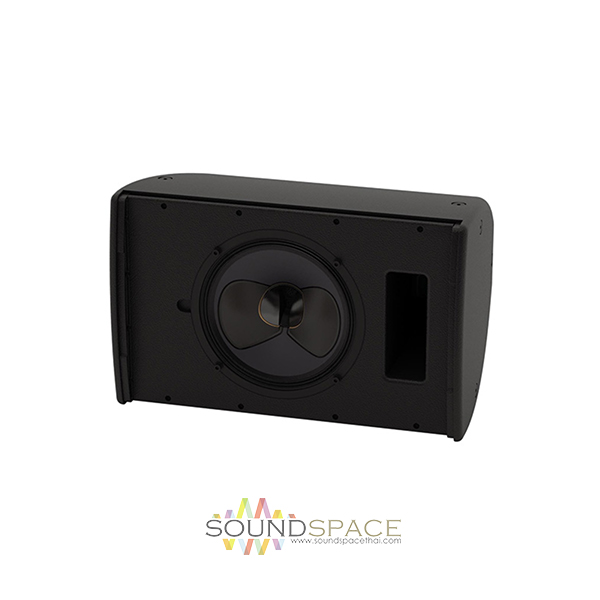

The CDD10 is a very compact two-way passive loudspeaker system which utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver.
It is uniquely placed to meet the foreground requirements of music bars and clubs, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure.
Use with a SX118 or CX218 subwoofer will enable the CDD10 to operate as small dancefloor system that is remarkably powerful for its size.
Features:
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Discreet mounting accessories
- Black or white standard colour options
Specifications
| TYPE | Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE | 65Hz-20kHz ± 3dB, -10dB @ 55Hz |
| DRIVER | LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver |
| RATED POWER | 250W AES, 1000W peak |
| SENSITIVITY | 96dB |
| MAXIMUM SPL | 120dB continuous, 126dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 110˚-75˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 2kHz passive |
| ENCLOSURE | 28 litre, composite material |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
| CONNECTORS | Low profile 20A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 6 x M8 inserts for wall bracket 10 x M8 fly points |
| DIMENSIONS | (W) 323mm x (H) 513mm x (D) 310mm (W) 12.7ins x (H) 20.2ins x (D) 12.2ins |
| WEIGHT | 15.3kg (33.7lbs) |
