มิกเซอร์ MACKIE ProFx8v2 Professional Mixer

Name: มิกเซอร์ MACKIE ProFx8v2 Professional Mixer
Price: 9900.00 THB
Availability: InStock

เครื่องผสมสัญญาณเสียง MACKIE ProFx8v2 8-Input, เอ็ฟเฟคในตัว 16 FX Including Reverb, Delay & Chorus, พร้อม USB Recording to Computer (Mac & PC)

ราคาไม่รวมภาษีมูลค่าเพิ่ม

~~฿9,990.00~~ ฿9,900.00

สอบถามและสั่งซื้อสินค้า

Category: อนาล็อคมิกเซอร์ (Analog Mixer) Tag: MACKIE

Description

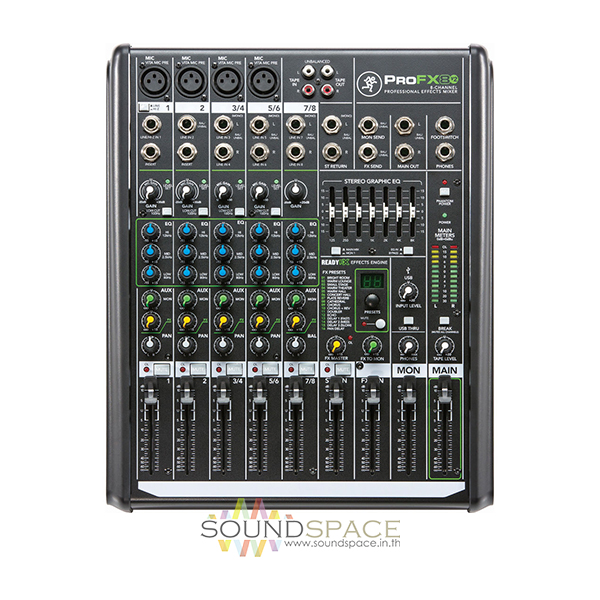

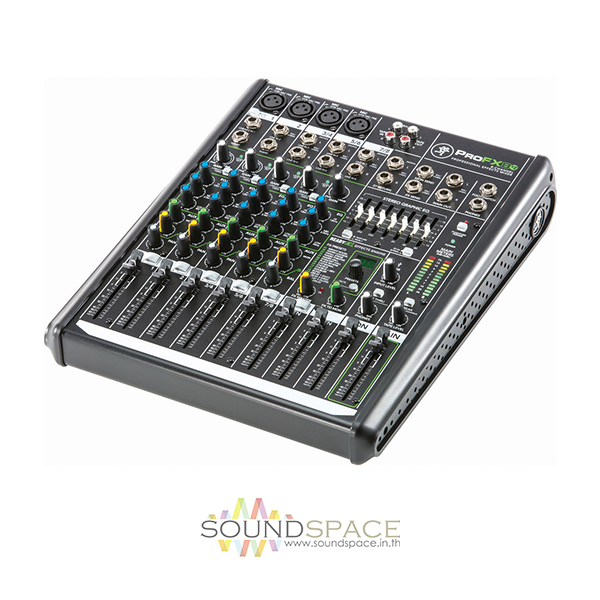

MACKIE ProFx8v2 8-Ch Professional Effect Mixer

The ProFX8v2 8-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 4 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 1 aux send, and an FX out for feeding external processors, the ProFX8v2 offers professional features to suit a wide variety of configurations.

In addition to the mic inputs, the ProFX8v2 includes 8 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.

The ProFX8v2’s effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer.

Features:

4 low-noise Mackie Vita mic preamps
ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
7-band graphic EQ for tuning mains or monitors
Built-in USB interface to record the show or provide music playback
Aux output ideal for driving a monitor mix
3 stereo channels plus extra stereo return for external effects or stereo playback devices
60mm faders for input channels, return, and main/monitor masters
3-band EQ (80 Hz, 2.5 kHz, and 12 kHz) on all channels
Directly connect guitar, bass, and other instruments via Hi-Z input
Stereo RCA tape I/O with input level control
Headphone output with separate level control

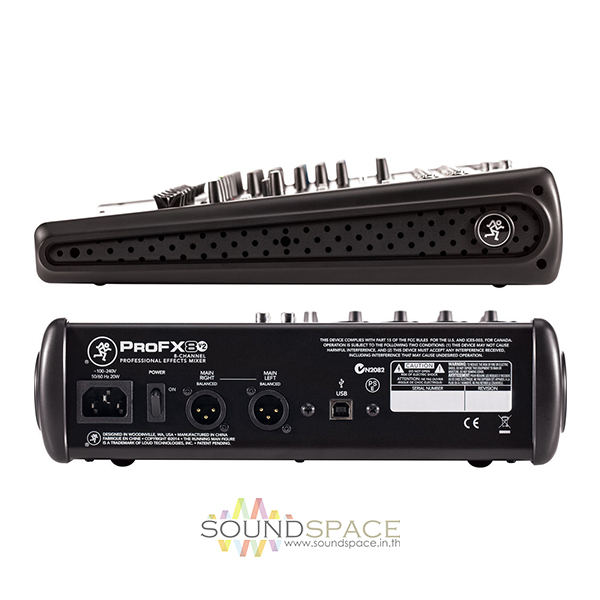

Balanced XLR and balanced/unbalanced 1/4″ main outputs
FX mute with remote control via footswitch
Break switch mutes all channels for music playback between sets
Built-in USB recording interface with simple setup via Mac or PC
For live recording and home studios
Stream playback music for live or studio applications
Includes Tracktion recording software
Rugged design
Solid steel chassis protects your investment
Tough ABS side protection
Robust internal multi-voltage power supply

Specifications

Equivalent Input Noise	150 ohm source impedance, 20 Hz to 20 kHz: Mic in to insert send out, max gain -125 dBu
Residual Output Noise	All outputs, master levels off, all channel levels off: -95 dBu All outputs, master levels unity, one channel level unity: -80 dBu
Frequency Response	Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 30 kHz
THD+N	22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.03%
Attenuation and Crosstalk	Adjacent Inputs @ 1 kHz: -90 dB Inputs to Outputs @ 1 kHz: -80 dB Fader Off @ 1 kHz: -75 dB Mute Switch / Break Switch Mute @ 1 kHz: -90 dB
Common Mode Rejection Ratio	Mic In to Main Out, max gain, 1 kHz: 70 dB
Maximum Level	All inputs: +22 dB Main Out XLR: +28 dBu All other outputs: +22 dBu
Impedance	Mic In 3.8 kOhms Channel Insert Return 10 kOhms All other inputs ≥ 20 kOhms Tape output 1 kOhms Phones output 25 ohms All other outputs 120 ohms unbalanced, 240 ohms balanced
Equalization	Low ±15 dB @ 80 Hz Mid ±15 dB @ 2.5 kHz High ±15 dB @ 12 kHz Low Cut Filter 18 dB/octave @ 100 Hz
Maximum Voltage Gain	Mic Input Channel to: Insert Output: 50 dB Tape Output: 60 dB USB Output: 50 dB 1/4″ Main Output: 70 dB XLR Main Output: 76 dB Monitor Send: 76 dB FX Send: 90 dB Mono Line Input Channel to: Insert Output: 30 dB Tape Output: 40 dB USB Output: 30 dB XLR Main Output: 56 dB Monitor Send: 56 dB FX Send: 70 dB Stereo Line Input Channel to: Tape Output: 30 dB USB Output: 30 dB XLR Main Output: 46 dB Monitor Send: 46 dB FX Send: 60 dB Tape Input to: XLR Main Output: 36 dB USB Input to: XLR Main Output: 36 dB Stereo Return to: XLR Main Output: 26 dB
Digital Effects	I/O: mono input / stereo output Number of Presets: 16
Meters	Main L/R Mix: Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30 Channel OL LED: Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
Graphic EQ	Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k Gain: ±15 dB Assignable to Main or Monitor, bypassable
USB	USB Recording to Computer (Mac & Win)
Phantom Power	48 VDC to all mic channels simultaneously
AC Power Requirements	Power Consumption: 20 watts Universal AC Power Supply: 100 – 240 VAC, 50 – 60 Hz Class II Detachable Line Cord: Yes
Operating Temperature	32 – 104˚F (0 – 40˚C)
Dimensions	3.6 x 11.4 x 14.1″ (91 x 290 x 358 mm)
Weight	7.1 lb (3.2 kg)
