มิกเซอร์ MACKIE ProFX6v3 Professional Mixer with FX
มิกเซอร์ MACKIE ProFx6v3 เป็นมิกเซอร์รุ่นล่าสุดที่ออกมาในปี 2020 ในรหัส V3 (version-3) เพื่อออกมาแทนรุ่น Version-2 เดิม, 2 x Mic/Line Inputs, 2 x Mono/Stereo Line Inputs, 2-In / 4-Out USB (24-Bit, 192 kHz), Gig FX Effects Engine (24 FX Presets)
ราคาไม่รวมภาษีมูลค่าเพิ่ม…..
฿7,590.00 ฿6,490.00
Description

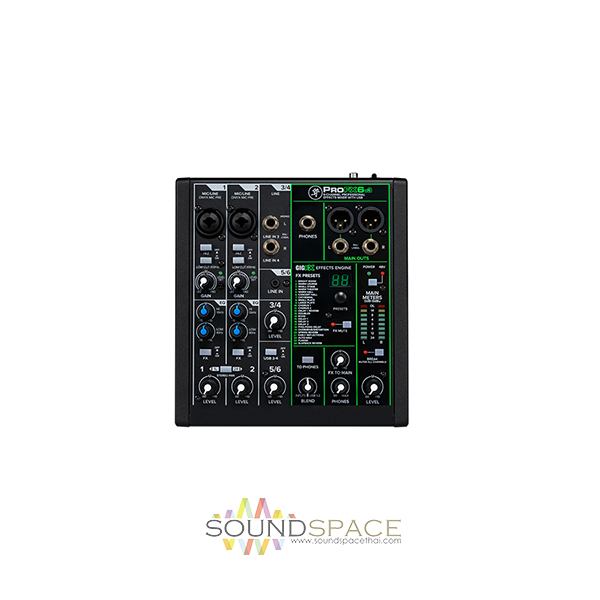

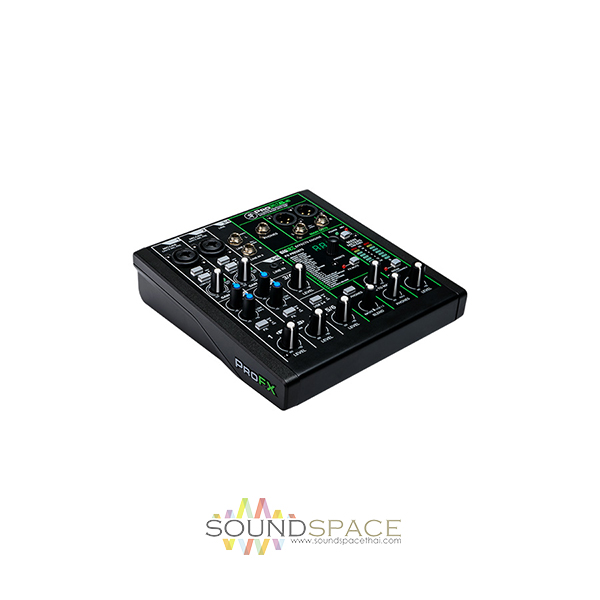

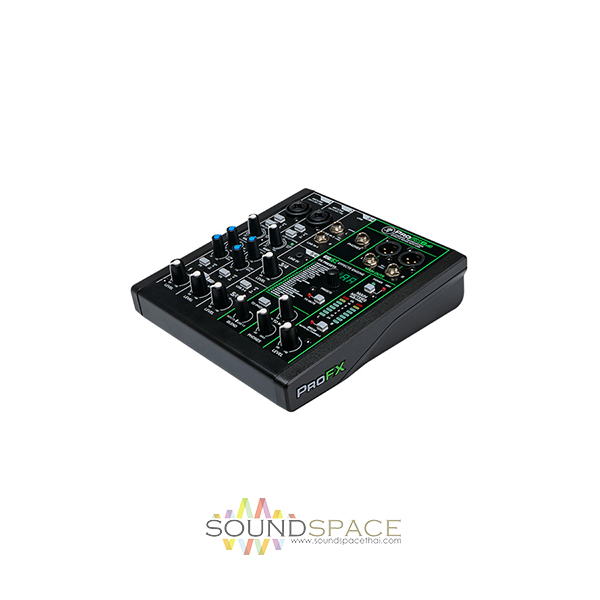

Mackie ProFX6v3 Professional Mixer with FX
มิกเซอร์ MACKIE ProFx6v3 เป็นมิกเซอร์รุ่นล่าสุดที่ออกมาในปี 2020 ในรหัส V3 (version-3) เพื่อออกมาแทนรุ่น Version-2 เดิม, 2 x Mic/Line Inputs, 2 x Mono/Stereo Line Inputs, 2-In / 4-Out USB (24-Bit, 192 kHz), Gig FX Effects Engine (24 FX Presets)
The Mackie ProFX6v3 is a 6-channel mixing console featuring two Onyx microphone preamps with 60 dB of headroom and a built-in effects engine with 24 built-in FX, making it well suited for live sound, home recording, and content creators. The integrated 2×4 USB audio interface offers high-quality 24-bit / 192 kHz recording and playback with zero-latency monitoring.
Channels 1-2 offer combo XLR-1/4″ mic/line connections and feature Hi-Z (for guitar and bass), low-cut filters (100 Hz), gain controls, 2-band EQ, stereo linking, level faders, and FX send. Channels 3-4 offer two 1/4″ inputs and feature a level control, while channels 5-6 use a 3.5mm stereo input with level fader. Engaging channel 5-6’s USB3-4 switch will override the 3.5″ input and enables the USB return from a computer.
The master output is controlled with a dedicated level knob and features XLR and 1/4″ connectors, while the dedicated 1/4″ TRS headphone output includes an independent level control. Other features include Input-USB 1-2 blend control, FX mute, and FX to main.
The ProFX6v3 ships with ProTools | First software, Waveform OEM, the DAW Essentials Collection, and The Musician Collection. This plug-in package including 23 high-quality plugins like: BBD Delay, Level Lite, 304E EQ, and 304C Compressor. The Mackie ProFX6v3 includes a USB cable and power supply.
Features:
- GigFX effects engine delivers 24 effects including reverbs, delays, and choruses
- 2 Mackie Onyx mic preamps deliver clear signal and 60dB of gain
- Rugged design will stand up to the wear and tear of the road
- 2 Band EQ and 100Hz low-cut filter on all channels
- Built-in channel compression
- 48-volt phantom power on all mic channels
- USB for playback music and recording into your computer
- Balanced XLR and balanced/unbalanced outputs
- Headphone output has separate volume control for comfortable monitoring
Specifications
| Equivalent Input Noise | 150-Ohm Source Impedance, 20 Hz to 20 kHz: Mic In to Insert Send Out, Max Gain -126 dBu |
| Residual Output Noise | All Outputs, Master Levels Off, All Channel Levels Off: -95 dBu All Outputs, Master Levels Unity, One Channel Level Unity: -80 dBu |
| Frequency Response | Mic Input to Any Output (Gain at Unity, +0 dB / -1 dB): 20 Hz to 30 kHz |
| THD+N | 22 Hz to 80 kHz Bandwidth: Mic In to Main Out (+4 dBu Output): < .03% |
| Attenuation and Crosstalk | Adjacent Inputs at 1 kHz: -90 dB Inputs to Outputs at 1 kHz: -80 dB Fader Off at 1 kHz: -75 dB Mute Switch / Break Switch Mute at 1 kHz: -90 dB |
| Common Mode Rejection Ratio | Mic In to Main Out, Max Gain, 1 kHz: 70 dB |
| Maximum Level | All Inputs: +22 dB Main Out XLR: +28 dBu All other Outputs: +22 dBu |
| Impedance | Mic In: 3.8 Kilohms Channel Insert Return: 10 Kilohms All Other Inputs: ≥ 20 Kilohms Phones Output: 25 Ohms All Other Outputs: 120 Ohms Unbalanced, 240 Ohms Balanced |
| Equalization | Low ±15 dB at 80 Hz High ±15 dB at 12 kHz Low-Cut Filter 18 dB/octave at 100 Hz |
| Maximum Voltage Gain | Mic Input Channel to: 1/4″ Main Output: 80 dB XLR Main Output: 86 dB FX Send: 90 dB USB Output: 70 dBMono Line Input Channel to: 1/4″ Main Output: 40 dB XLR Main Output: 66 dB FX Send: 70 dB USB Output: 50 dBStereo Line Input Channel to: 1/4″ Main Output: 20 dB XLR Main Output: 26 dB USB Output: 10 dB1/8″ Input to: 1/4″ Main Output: 40 dB XLR Main Output: 46 dB USB Output: 10 dB |
| Digital Effects | Number of Presets: 16 |
| Meters | Main L/R Mix Two Columns of 8 Segments Each: OL, +14, +8, +4, 0 (0 dBu), -4, -12, -24 |
| USB | Format: USB 2.0 I/O: 1 Stereo Input, 2 Stereo Outputs A/D/A: 24-Bit / 44.1, 48, 96, 192 kHz |
| Phantom Power | 48 VDC to All Mic Channels Simultaneously |
| AC Power Requirements | Universal AC Power Supply: 100 – 240 VAC, 50 – 60 Hz Power Supply: 12 VDC at 2A Class I Hard-Wired Wall Mount Adapter |
| Dimensions | 2.9 x 7.5 x 8.4″ / 7.1 x 19.0 x 21.3 cm |
| Weight | 2.6 lb / 1.2 kg |
