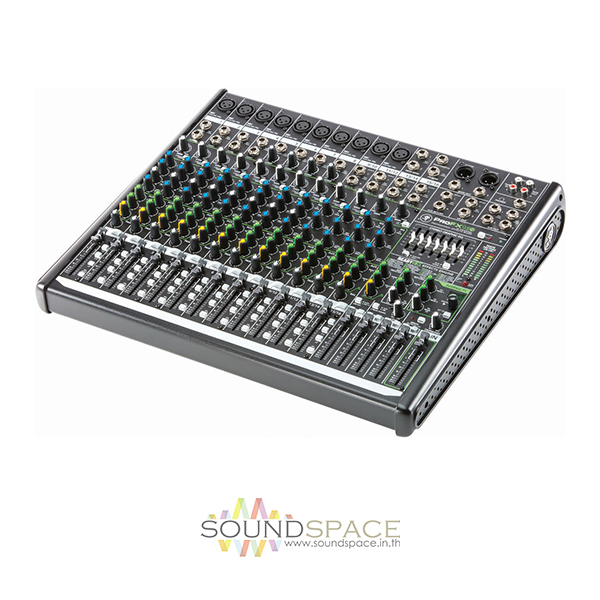

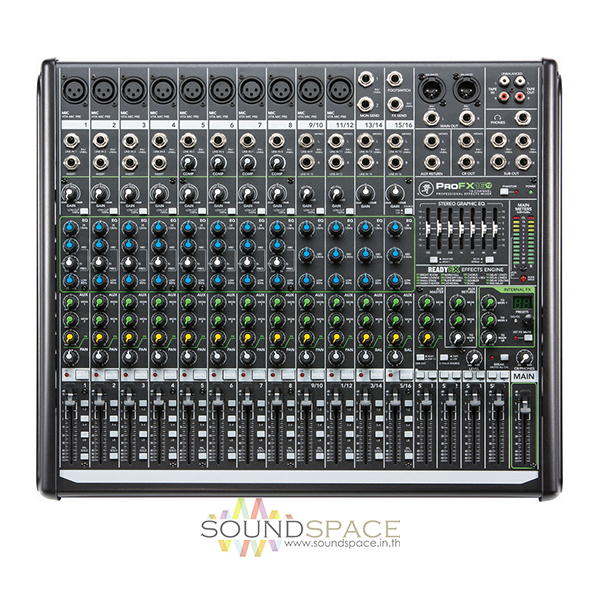

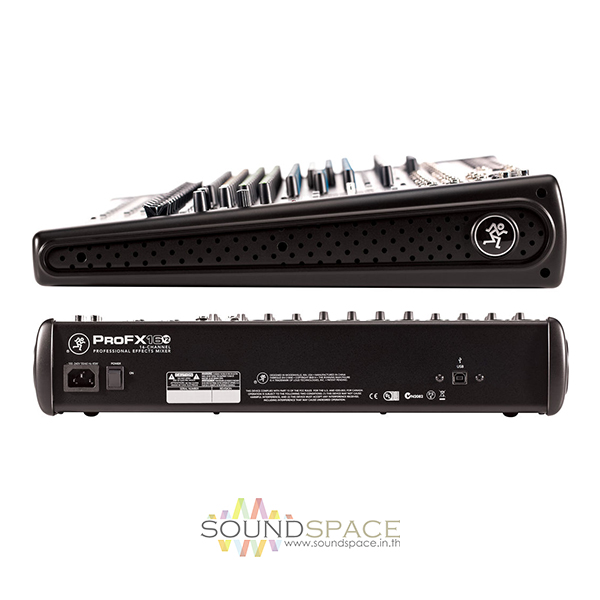

มิกเซอร์ MACKIE ProFx16v2 Professional Mixer
เครื่องผสมสัญญาณเสียง MACKIE ProFx16v2 16-input 10 mono, 4 Bus เอ็ฟเฟคในตัว 16 FX Including Reverb, Delay & Chorus, พร้อม USB Interface Recording to Computer
ราคาไม่รวมภาษีมูลค่าเพิ่ม
฿21,900.00 ฿21,500.00
Description
MACKIE ProFx16v2 16-Ch 4 Bus Professional Effects Mixer with USB
เครื่องผสมสัญญาณเสียง MACKIE ProFx16v2 16-input 10 mono, 4 Bus เอ็ฟเฟคในตัว 16 FX Including Reverb, Delay & Chorus, พร้อม USB Interface Recording to Computer
Mackie ProFX16v2 16-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 10 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 2 aux sends, and an FX out for feeding external processors, the ProFX16v2 offers professional features to suit a wide variety of configurations.
In addition to the mic inputs, the ProFX16v2 includes 16 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.
The ProFX16v2’s effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer.
Features:
- 10 low-noise Vita mic preamps
- ReadyFX effects engine with 16 effects like reverbs, delays, and choruses
- Single-knob channel compression for smooth, even dynamic control (ch. 5-8)
- 7-band graphic EQ for tuning mains or monitors
- Built-in USB interface to record the show or provide music playback
- 4 flexible subgroups for professional mix management
- 2 aux outputs for monitor mixes, fill speakers, and more
- 3-band EQ with sweepable mids on mono channels
- 16 high-headroom line level inputs
- Individual channel mutes and overload indication
- 100 Hz low-cut filters per channel (18 dB/octave)
- Channel inserts for connecting outboard processing (ch. 1-4)
- 60mm faders for input channels, subgroups and main masters
- 48V phantom power for connecting condenser mics
- FX mute with remote control via footswitch
- Break switch mutes all channels for music playback between sets
- Control room / headphone outs with level control
- Balanced XLR and balanced/unbalanced 1/4″ main outputs
- Built-in USB recording interface with simple setup via Mac or PC
- Choose to record subgroups 1/2 or main L/R mix
- Separate USB input level control to mains
- USB routable to full-featured channel strip
- For live recording and home studios
- Stream playback music for live or studio applications
- Includes user-friendly Tracktion recording software
- Solid steel chassis protects your investment
- Tough ABS side protection
- Robust internal multi-voltage power supply
Specifications
| Equivalent Input Noise | 150 ohm source impedance, 20 Hz to 20 kHz: Mic in to insert send out, max gain -128 dBu |
| Residual Output Noise | All outputs, master levels off, all channel levels off: -95 dBu All outputs, master levels unity, one channel level unity: -85 dBu |
| Frequency Response | Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 40 kHz |
| THD+N | 22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.01% |
| Attenuation and Crosstalk | Adjacent Inputs @ 1 kHz: -90 dB Inputs to Outputs @ 1 kHz: -80 dB Fader Off @ 1 kHz: -75 dB Mute Switch / Break Switch Mute @ 1 kHz: -100 dB |
| Common Mode Rejection Ratio | Mic In to Main Out, max gain, 1 kHz: 70 dB |
| Maximum Level | All inputs: +22 dB Main Out XLR: +28 dBu All other outputs: +22 dBu |
| Impedance | Mic In 3.3 kOhms Channel Insert Return 10 kOhms All other inputs ≥ 20 kOhms Tape output 1 kOhms Phones output 25 ohms All other outputs 120 ohms unbalanced, 240 ohms balanced |
| Equalization | Mono Channels: Low ±15 dB @ 80 Hz Mid ±15 dB @ 100 Hz – 8 kHz High ±15 dB @ 12 kHz Low Cut Filter 18 dB/octave @ 100 HzStereo Channels Low ±15 dB @ 80 Hz Mid ±15 dB @ 2.5 kHz High ±15 dB @ 12 kHz |
| Maximum Voltage Gain | Mic Input Channel to: Insert Output: 50 dB Tape Output: 60 dB USB Output: 60 dB 1/4″ Main Output: 70 dB XLR Main Output: 76 dB Monitor Send: 81 dB FX Send: 90 dBMono Line Input Channel to: Insert Output: 30 dB Tape Output: 40 dB USB Output: 40 dB XLR Main Output: 56 dB Monitor Send: 61 dB FX Send: 70 dBStereo Line Input Channel to: Tape Output: 30 dB USB Output: 30 dBXLR Main Output: 46 dB Monitor Send: 51 dB FX Send: 55 dB Tape Input to: USB Input to: Stereo Return to: |
| Digital Effects | I/O: mono input / stereo output Number of Presets: 16 |
| Meters | Main L/R Mix: Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30Channel OL LED: Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu |
| Graphic EQ | Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k Gain: ±15 dB Assignable to Main or Monitor, bypassable |
| USB | USB Recording to Computer (Mac & PC) |
| Phantom Power | 48 VDC to all mic channels simultaneously |
| AC Power Requirements | Power Consumption: 40 watts Universal AC Power Supply: 100 – 240 VAC, 50 – 60 Hz Class II Detachable Line Cord: Yes |
| Operating Temperature | 32 – 104˚F (0 – 40˚C) |
| Dimensions | 3.8 x 18.7 x 16.0″ (97 x 475 x 407 mm) |
| Weight | 13.0 lb (5.9 kg) |
